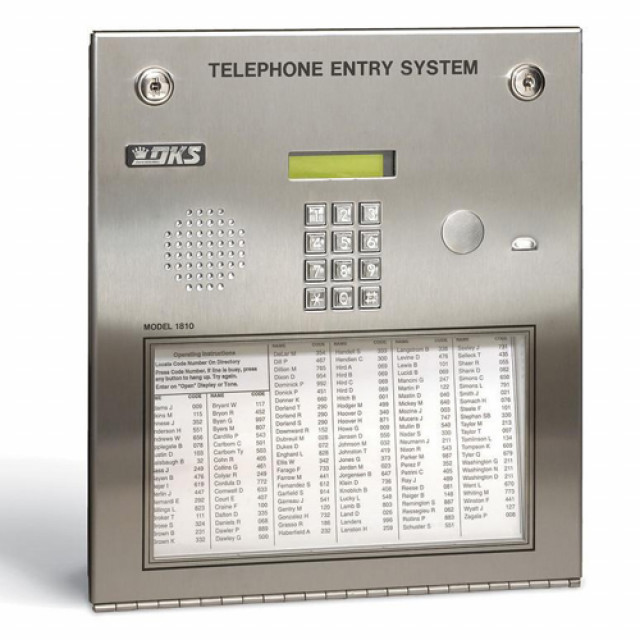

| DoorKing 1810 Telephone Entry With its built-in lighted directory, the Model 1810 is a complete self-contained telephone entry system that is ideal for small to medium sized apartment buildings, gated communities, condominiums, office buildings, factories and industrial sites. Managers can easily create and change the directory as needed with a word processing program (templates are available from DoorKing). The 1810 is available in both surface and flush mount styles. Visitors are identified by voice communication via the telephone. Access is granted by pressing "9" on your touch tone telephone, or access can be denied by simply hanging up. The 1810 is available in two distinct styles: Surface or flush mount - specify which. Stainless steel housing (surface mount only). Gold plated faceplate - Flush mount units only. |
Doorking 1810 is an ideal telephone entry system that is suited for
a wide variety of applications. The built-in lighted directory makes it
a complete all-in-one compact unit and it is easy for managers to
update by using a word processing program. Visitors are easily
identified by voice communication and can be granted or denied
access directly from a touch-tone telephone.
a wide variety of applications. The built-in lighted directory makes it
a complete all-in-one compact unit and it is easy for managers to
update by using a word processing program. Visitors are easily
identified by voice communication and can be granted or denied
access directly from a touch-tone telephone.
| ADVANCED FEATURES Programmable directory codes (1-4 digits). 10 and 11-digit dialing capability. Two special inputs can be programmed for relay activation or to dial out a preprogrammed phone number. 5-digit entry codes for special needs. Built-in LED lighted directory. LED lighted keypad. Built-in time clock. Hold open time zones. Entry code time zones. "Flash" entry codes. Built-in postal lock provision. Programming display. |
| SPECIFICATIONS Stores up to 1000 telephone numbers. EEPROM Memory. Full duplex commnication. 4-digit entry codes; same number as memory ordered. Six, 5-digit entry codes. 10 area codes. 16 VAC, 20 VA (250 ma) power transformer provided. Ringer equivalence: 0.0 A. Jack type: RJ11C or W. FCC (US): DUF6VT-12874-OT-0 DOC (CAN): 1736 4507 A Complies with UL 294; ETL Listed. Surface mount dimensions: 13"H x 11.25"W x 4.75"D. Flush mount dimensions: 13.25"H x 12"W x 3"D. |
| ACCESSORIES AVAILABLE FOR THIS MODEL ADA compliant handset (surface mount only). Back up battery. Heater kit (recommended when temperatures routinely fall below 10F / -12C). Mounting post. Fluorescent light kit. Add-on directory. Surge suppressors. |
| FEATURES: * Provides both resident and visitor access control into apartment buildings, gated communities, condominiums, office buildings, factories and industrial sites * Visitors use the 1810 to communicate with a resident, who can then grant or deny them access from their touchtone telephone * Provides service for up to 1000 residents * Programmable directory codes can be set from 1 to 4 digits * Built in lighted paper directory |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Accessories for 1810 Telephone Entry System |
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
