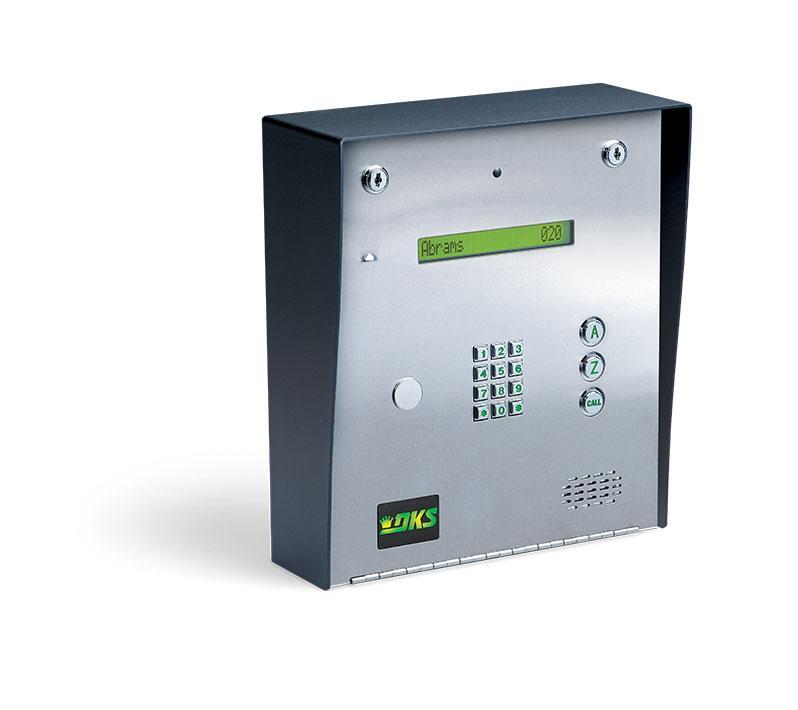

|DoorKing 1835 - PC Programmable
The Model 1835 is an ideal telephone entry system suited for apartment and gated community
applications as well as office buildings and industrial sites that have a separate access
control system, or require telephone entry only. The single-line LCD display features big
1/2-inch characters for easy viewing and your personalized message scrolls across the
screen from right to left when the system is not in use. Our unique "One Touch" CALL button
makes this system one of the easiest to use on the market today! The built-in electronic
directory, easy to use Remote Account Manager programming software, card reader interface
and expandability options make this unit an ideal choice for those applications with a large
number of system users and entry locations. Up to 16 card readers can be interfaced with the
1835 to provide access control. Additionally, our elevator control module restricts which
floors a guest or system users have access to, making it an ideal system for high rise
buildings. For additional security, the 1835 allows you to monitor activity AS IT HAPPENS on
your computer display (requires RS-232 connection), and with our anti-pass back memory, you
can enable a TRUE anti-pass back system in one of three different configurations; passive,
active and trap.
The 1835 is available in three distinct styles:
Surface, flush or wall mount - specify which
Stainless steel case (available on surface mount only).
Memory size: 125, 250, 500, 3000 - choose one.
Tracker expansion boards.
Elevator control boards
PC Programmable via the internet (using DKS
server connection) modem or RS-232. Remote
Account Manager and Transaction Analysis
Large easy to use A and Z scroll buttons.
One Touch "CALL" button.
Built-in single-line LCD directory display.
Programmable directory codes (1-4 digits).
10 and 11-digit dialing capability.
Interfaces with 2 card readers - expandable to
16 with tracker expansion board(s)
Live transactions (requires RS-232 connection).
8000 event transaction buffer.
31 Security (permission) levels.
Database import/export capability.
LED Lighted keypad.
Hold open time zones.
Entry code time zones.
Built-in postal lock provision.
Note 1: Requires Elevator Control Board(s).
Note 2: Requires Tracker Expansion Board(s).
True Full Duplex Communication.
Stores up to 3000 telephone numbers and names. Memory
sizes available: 125, 250, 500, 3000. Specify requirement when
Stores up to 255 area codes.
Transaction buffer stores last 8000 events.
Stores up to 8000 access card codes - dependent on system
31 security (permission) levels, 29 programmable with 4 time
8 hold open time zones.
Three anti-pass back configurations: passive, active and trap.
Elevator control (note 1) for up to 4 elevators, each serving 64
Expandable (note 2) to control up to 16 entry points.
4-digit entry codes, one for each telephone number.
3 form "C" dry contact relays.
Single-line directory display uses super-twist LCD with 1/2-inch
Requires touch-tone, loop-start central office phone line.
Two 16 VAC, 20 VA power transformers supplied.
FCC (US): DUF6VT-12874-OT-T
DOC (CAN): 1736 4528 A
Compliant with UL 294. ETL listed.
Dimensions Surface Mount: 13"H x 11.25"W x 4.75"D.
Dimensions Flush Mount: 13.5"H x 12"W x 2.5"D.
Dimensions Wall Mount: 15"H x 13.25"W x 3.5"D.
|ACCESSORIES AVAILABLE FOR THIS MODEL
Surface mount trim ring (use with surface mount units only)
Flush mount installation kit (required with flush mount units).
ADA compliant handset.
Fluorescent light kit.
Back up battery.
Heater kit (recommended when temperatures routinely fall below 10F / -12C).
Color or BW CCTV camera (may require additional CCTV equipment).
