Doorking Barrier Operator 1601 - Scroll Down to View Exploded Parts View or Illustrated  Parts Breakdown For Arm Barrier
Operator 1601
Click Here for Replacement Parts Quote Form on all Inquiries  Click on Image to Enlarge, after new window
opens click on image again to enlarge more or you can download PDF File
Doorking Parts 1601
Welcome to: GATESNFENCES.COM
Item      Part Number   Description for Arm Barrier Opener
1601
1             1601-880        IPB-Model 1601-080, 115V Parking
Gate                                              Operator AA
20          1601-139         Bearing Blk Die Cast 1601
25          1601-032         Bearing 1 1/2OD x11/4ID x 5/8L
27          1601-026         Belt 26"
45          1601-017         Collar "Sandwich" Plate
50          2600-061         Collar 2"OD x 1 1/4"ID x 5/8"L
55          1601-029         Connecting Link
75          1601-075         Door
80          1601-215         Mount Plate Gearbox A
85          1601-027         Gearbox 1601 A
86          1601-222         Shaft Assembly 1601 Splined
90          1601-055         Divider - High/Low Voltage
95          1601-100         Housing
100        4001-018         Weather Stripping (50' rolls)
105        4001-035         Lock N16058BDxSFx2K Key 16120
107        1702-503         Cam 1.1/4
115        2620-047         Lockwasher 3/8"
125        2600-817         Magnet
130        1601-016         Mount Plate Magnet
135        1601-074         Motor 1/2 H.P. Emerson
140        2620-440         Nut Hex 1/2-13 GR8
150        2620-411         Nut Hex Flange Lock 5/16-18
151        2620-405         Nut Hex 3/8-16
152        2902-006         Nut Nylon 10-32
153        2902-004         Nut Nylon Lock 8-32
157        2620-401         Nut Hex 8-32
159        1601-152         Mount Plate - PC Board Top
160        1601-150         Mount Plate - PC Board Bottom
161        2615-673         Bolt Carr SS 3/8-16 x 2 1/4 Painted
164        2615-669         Bolt Carriage SS 3/8-16 x 11/4 Painted
166        2615-184         Bolt Hex Head 1/2-13 x 2 1/4 GR8
180        2615-645         Bolt Carr SS 10-32 x 5/8 Painted
181        2615-667         Bolt Carr SS 3/8-16 x 3/4 Painted
182        2615-662         Bolt Carr SS 5/16-18 x 5/8 Painted
183        2615-674         Bolt Carriage 3/8-16 x 1 3/4 Painted
200        2600-820         Bushing 1/2
Doorking 1601 Barrier Gate Operator Exploded Parts View
DKS Parts Replacement for the 1601 Arm Barrier Gate Operator
DKS - Doorking 1601-080 Barrier Gate Shaft Assembly 1601 Splined
Doorking Replacement Parts for your Doorking Operator - We Offer Doorking
Factory Direct replacement parts and New Products for DKS Systems, Gate
Openers, Keypad Parts, Proximity and Multi-Tenant Access Control panels
About Us  |   Contact Us   |   Our Policies   |   FAQ   |   Manufactures   |   Links   |
Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp.  All rights reserved. No part of this site can be reproduced in any form
or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp.
3708 NW 82nd Street  Miami  Florida  33147, Office: 305-696-0419  Fax: 305-696-0461 E-Mail:
LAOrnamental@Aol.com
207       1601-018         Pulley 4" OD 5/8" Bore
208       1601-033         Pulley 2"ODx5/8
209       2600-882         Hole Plug Plastic 2.25" Hole
219       2616-006         Screw Phillip Head 6-32 x 3/16
220       2616-003         Screw Phillips Head 6-32 x 3/4
221       2616-002         Screw Phillips Head 6-32 x 1/2
222       1601-040         Switch Toggle ON-OFF-ON MOMEN
223       1601-041         Switch Toggle SPST 2POS
225       1601-007         Terminal 14 Pin
226       2600-414         Terminal Block-2 Position
227       2600-410         Marker Strip Silkscn Both Side
228       2802-003         Washer #8 SAE
230       2620-029        3/8 USS Flat Washer
231       2620-019        3/8 SAE Flat Washer
240       2620-131        Washer 1 7/8"OD x 1/2"ID 1/8 Thk
245       2600-619        Wire Clp-5/8" Concord
250      770-1209        Wire Set 1601/1602 1601-008
251      1804-031         Tie Wrap 4"
252      2600-639        Wire Clamp-1"
253      2600-749        Wire Connector STA-KON RC6
254     1200-028        Outlet Snap-In Leviton 1306
255      2599-008       Label Patent
260      2600-439       Washer Cup - Brass
265      2599-006       Decal SUPPLY GND
270     1601-044        Holder - Magnet
275     1601-060        Bearing-Sealed 1/2ID x 1 1/8OD
280     1601-185        Washer Race .515"IDx.875"OD CH
285     1601-010        PCB Parking Gate
287     2599-012        Decal 1601 Switch
288     2599-035        Decal-Warning, Parking Gate
290     2560-010        Information Packet 1601
295     2599-014       Decal Copper Wire Only
300     2599-199       Label Universal
310     2600-732       Nameplate Plastic DKS
315     2802-040       Washer Push on Clamp
320     3129-002       Terminal Block Cover 2 Position

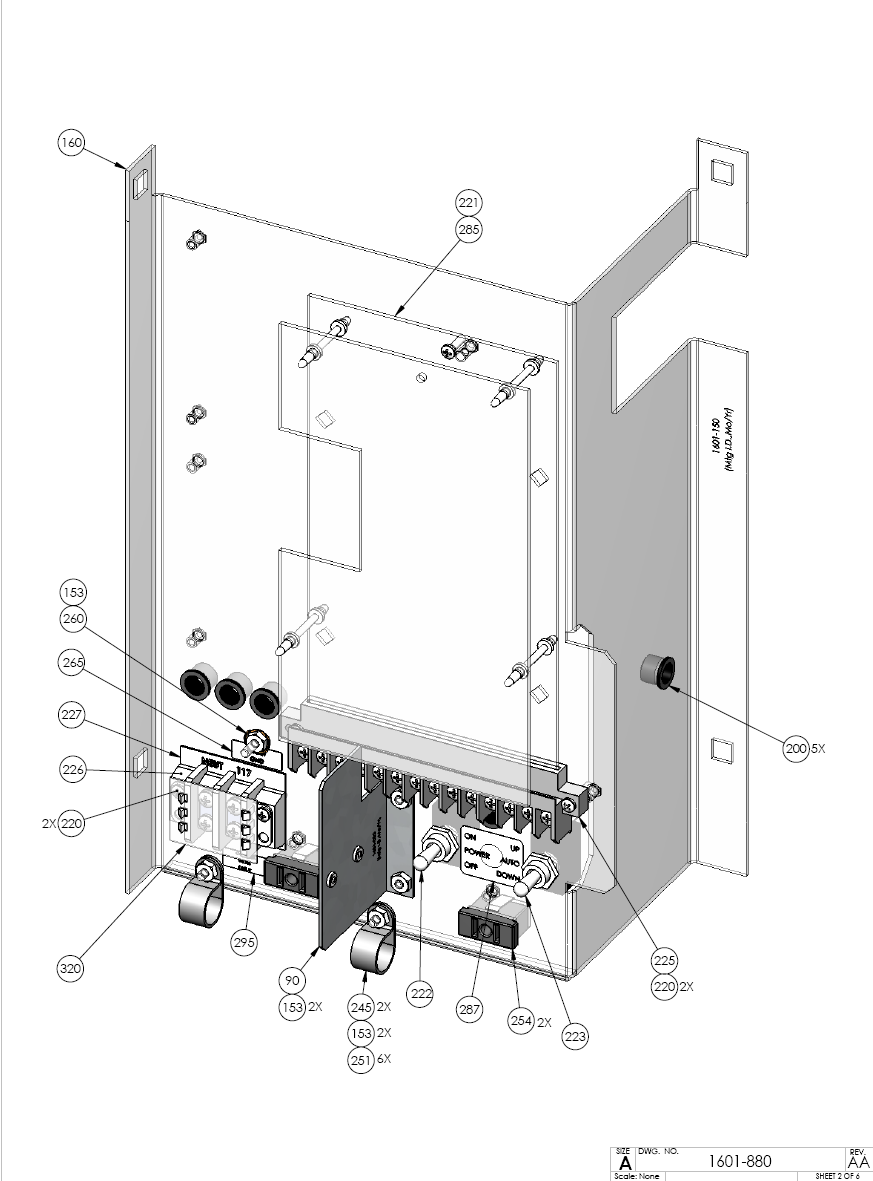

DKS Barrier Board Terminal Block Section for the 1601 Barrier Gate Operator

Item Description Part Number Price
1 IPB-Model 1601-080, 115V Parking Gate Operator 1601-880
20 Bearing Blk Die Cast 1601 1601-139 Add To Cart For Special Pricing - To Low To Advertise
25 Bearing 1 1/2OD x11/4ID x 5/8L 1601-032 Add To Cart For Special Pricing - To Low To Advertise
27 Belt 26" 1601-026 Add To Cart For Special Pricing - To Low To Advertise
45 Collar "Sandwich" Plate 1601-017 Add To Cart For Special Pricing - To Low To Advertise
50 Collar 2"OD x 1 1/4"ID x 5/8"L 2600-061 Add To Cart For Special Pricing - To Low To Advertise
55 Connecting Link 1601-029 Add To Cart For Special Pricing - To Low To Advertise
75 Door 1601-075 Add To Cart For Special Pricing - To Low To Advertise
80 Mount Plate Gearbox 1601-215 Add To Cart For Special Pricing - To Low To Advertise
85 Gearbox 1601 1601-027 Add To Cart For Special Pricing - To Low To Advertise
86 Shaft Assembly 1601 Splined 1601-222 Add To Cart For Special Pricing - To Low To Advertise
90 Divider - High/Low Voltage 1601-055 Add To Cart For Special Pricing - To Low To Advertise
95 Housing 1601-100 Add To Cart For Special Pricing - To Low To Advertise
100 Weather Stripping (50' rolls) 4001-018 Add To Cart For Special Pricing - To Low To Advertise
105 Lock N16058BDxSFx2K Key 16120 4001-035 Add To Cart For Special Pricing - To Low To Advertise
107 Cam 1.1/4 1702-503 Add To Cart For Special Pricing - To Low To Advertise
115 Lockwasher 3/8" 2620-047 Add To Cart For Special Pricing - To Low To Advertise

125 Magnet 2600-817 Add To Cart For Special Pricing - To Low To Advertise
130 Mount Plate Magnet 1601-016 Add To Cart For Special Pricing - To Low To Advertise
135 Motor 1/2 H.P. Emerson 1601-074 Add To Cart For Special Pricing - To Low To Advertise
140 Nut Hex 1/2-13 GR8 2620-440 Add To Cart For Special Pricing - To Low To Advertise

150 Nut Hex Flange Lock 5/16-18 2620-411 Add To Cart For Special Pricing - To Low To Advertise
151 Nut Hex 3/8-16 2620-405 Add To Cart For Special Pricing - To Low To Advertise

152 Nut Nylon 10-32 2902-006 Add To Cart For Special Pricing - To Low To Advertise
153 Nut Nylon Lock 8-32 2902-004 Add To Cart For Special Pricing - To Low To Advertise
157 Nut Hex 8-32 2620-401 Add To Cart For Special Pricing - To Low To Advertise

159 Mount Plate - PC Board Top 1601-152 Add To Cart For Special Pricing - To Low To Advertise
160 Mount Plate - PC Board Bottom 1601-150 Add To Cart For Special Pricing - To Low To Advertise
161 Bolt Carr SS 3/8-16 x 2 1/4 Painted 2615-673 Add To Cart For Special Pricing - To Low To Advertise
164 Bolt Carriage SS 3/8-16 x 11/4 Painted 2615-669 Add To Cart For Special Pricing - To Low To Advertise
166 Bolt Hex Head 1/2-13 x 2 1/4 GR8 2615-184 Add To Cart For Special Pricing - To Low To Advertise
180 Bolt Carr SS 10-32 x 5/8 Painted 2615-645 Add To Cart For Special Pricing - To Low To Advertise
181 Bolt Carr SS 3/8-16 x 3/4 Painted 2615-667 Add To Cart For Special Pricing - To Low To Advertise
182 Bolt Carr SS 5/16-18 x 5/8 Painted 2615-662 Add To Cart For Special Pricing - To Low To Advertise
183 Bolt Carriage 3/8-16 x 1 3/4 Painted 2615-674 Add To Cart For Special Pricing - To Low To Advertise
200 Bushing 1/2 2600-820 Add To Cart For Special Pricing - To Low To Advertise
207 Pulley 4" OD 5/8" Bore 1601-018 Add To Cart For Special Pricing - To Low To Advertise

208 Pulley 2"ODx5/8 1601-033 Add To Cart For Special Pricing - To Low To Advertise

209 Hole Plug Plastic 2.25" Hole 2600-882 Add To Cart For Special Pricing - To Low To Advertise
219 Screw Phillip Head 6-32 x 3/16 2616-006 Add To Cart For Special Pricing - To Low To Advertise
220 Screw Phillips Head 6-32 x 3/4 2616-003 Add To Cart For Special Pricing - To Low To Advertise

221 Screw Phillips Head 6-32 x 1/2 2616-002 Add To Cart For Special Pricing - To Low To Advertise
222 Switch Toggle ON-OFF-ON MOMEN 1601-040 Add To Cart For Special Pricing - To Low To Advertise
223 Switch Toggle SPST 2POS 1601-041 Add To Cart For Special Pricing - To Low To Advertise
225 Terminal 14 Pin 1601-007 Add To Cart For Special Pricing - To Low To Advertise
226 Terminal Block-2 Position 2600-414 Add To Cart For Special Pricing - To Low To Advertise
227 Marker Strip Silkscn Both Side 2600-410 Add To Cart For Special Pricing - To Low To Advertise
228 Washer #8 SAE 2802-003 Add To Cart For Special Pricing - To Low To Advertise
230 3/8 USS Flat Washer 2620-029 Add To Cart For Special Pricing - To Low To Advertise
231 3/8 SAE Flat Washer 2620-019 Add To Cart For Special Pricing - To Low To Advertise
240 Washer 1 7/8"OD x 1/2"ID 1/8 Thk 2620-131 Add To Cart For Special Pricing - To Low To Advertise
245 Wire Clp-5/8" Concord 770-1209 2600-619 Add To Cart For Special Pricing - To Low To Advertise

250 Wire Set 1601/1602 1601-008 Add To Cart For Special Pricing - To Low To Advertise
251 Tie Wrap 4" 1804-031 Add To Cart For Special Pricing - To Low To Advertise
252 Wire Clamp-1" 2600-639 Add To Cart For Special Pricing - To Low To Advertise
253 Wire Connector STA-KON RC6 2600-749 Add To Cart For Special Pricing - To Low To Advertise

254 Outlet Snap-In Leviton 1306 1200-028 Add To Cart For Special Pricing - To Low To Advertise
255 Label Patent 2599-008 Add To Cart For Special Pricing - To Low To Advertise
260 Washer Cup - Brass 2600-439 Add To Cart For Special Pricing - To Low To Advertise
265 Decal SUPPLY GND 2599-006 Add To Cart For Special Pricing - To Low To Advertise
270 Holder - Magnet 1601-044 Add To Cart For Special Pricing - To Low To Advertise
275 Bearing-Sealed 1/2ID x 1 1/8OD 1601-060 Add To Cart For Special Pricing - To Low To Advertise
280 Washer Race .515"IDx.875"OD CH 1601-185 Add To Cart For Special Pricing - To Low To Advertise
285 PCB Parking Gate 1601-010 Add To Cart For Special Pricing - To Low To Advertise
287 Decal 1601 Switch 2599-012 Add To Cart For Special Pricing - To Low To Advertise
288 Decal-Warning, Parking Gate 2599-035 Add To Cart For Special Pricing - To Low To Advertise
290 Information Packet 1601 2560-010
295 Decal Copper Wire Only 2599-014 Add To Cart For Special Pricing - To Low To Advertise
300 Label Universal 2599-199 Add To Cart For Special Pricing - To Low To Advertise
310 Nameplate Plastic DKS 2600-732 Add To Cart For Special Pricing - To Low To Advertise

315 Washer Push on Clamp 2802-040 Add To Cart For Special Pricing - To Low To Advertise
320 Terminal Block Cover 2 Position 3129-002 Add To Cart For Special Pricing - To Low To Advertise
