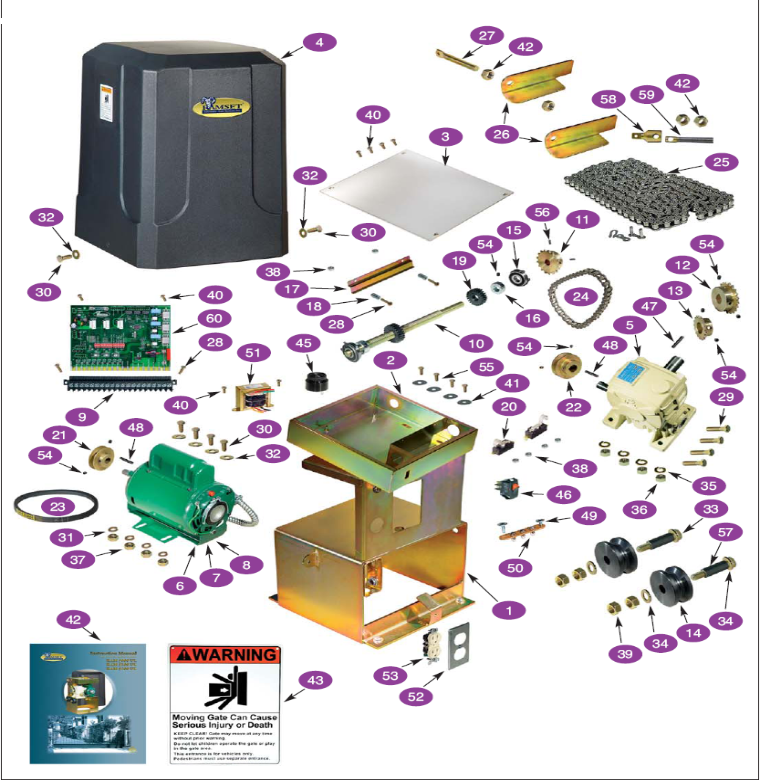

| RAMSET Gate Operators Ram 5100 - Scroll Down to View Exploded Parts View or Illustrated Parts Breakdown For Slide Gate Openers Click Here for Replacement Parts Quote Form on all Inquiries |
| Click on Image to Enlarge, after new window opens click on image again to enlarge more or you can download PDF File RAMSET Parts Ram 5100 |
| RAMSET Replacement Parts for your RAMSET Openers - We Offer RAMSET Factory Direct replacement parts and New Products for RAMSET Systems, Gate Openers, Keypad Parts, Proximity and Multi-Tenant Access Control panels |
| Item Parts # Description for Ram 5100 Gate Operators 1 50-007 1/4" Hot Rolled Metal Chassis 2 50-010 Control Board Box 3 50-016 Board Lexan Cover 4 50-023 Polyethylene Cover 5 50-030 Speed Reducer Size 60/30:1 Ratio 6 50-033 1/2 hp 115 VAC Electric Motor 7 50-034 3/4 hp 115 VAC Electric Motor 8 50-035 1 hp 220 VAC Electric Motor 9 50-039 20 Pin Edge Connector 10 50-045 1/2" x 10 1/2" Limit Switch Shaft 11 50-051 35 b 17 1/2" Sprocket 12 50-052 41 b 21x1" Sprocket 13 50-055 35 b 17x1" Sprocket 14 50-058 3 1/2" UHMW Idler Pulley 15 50-059 6202-2rs Ball Bearing 16 50-061 1/2" Shaft Collar 17 50-063 Spring Load Bracket 18 50-064 3/4" Tension Spring 19 50-066 Limit Switch Nuts 20 50-069 Limit Switch 00h-3 21 50-071 5/8" x 2 1/2" Cast Iron Pulley 22 50-072 3/4" x 2 1/2" Cast Iron Pulley 23 50-077 4L "V" Belt #210 24 50-085 #35 Limit Switch Chain 25 50-088 #40 x 20' Gate Chain 26 50-089 3/8" x 2" x 7" Chain Bracket 27 50-090 1/2" x 4" Chain Bolt 28 50-091 #6 x 1" Machine Screw 29 50-092 3/8"-16 x 1 1/4" Hex Head Bolt 30 50-095 5/16"-18 Unc x 3/4" Hex Head Bolt |
| Item Parts # Description for Ram 5100 Gate Operators 31 50-096 5/16" Lock Washer 32 50-097 5/16" Flat Washer 33 50-098 5/8"-11 x 3 1/2" Hex Head Bolt 34 50-099 5/8" Flat Washer 35 50-101 3/8" Lock Washer 36 50-103 3/8" Hex Head Nut 37 50-104 5/16"-18 Hex Head Nut 38 50-105 #6 Hex Head Nut 6 6 6 39 50-106 5/8" Hex Head Nut 40 50-107 #6 x 3/8" Machine Screw 41 50-108 1/4" Flat Fender Washer 42 50-113 1/2" Hex Head Nut 43 50-151 Warning Sign for Gate 44 50-157 Instruction Manual 45 50-168 Horn Alarm 46 50-215 Rocker Switch 47 50-264 1/4" x 1 1/2" Key Way 48 50-265 3/16" x 3/4" Key Way 49 50-295 #8 Self-Tap Sheet Metal Screw 50 50-299 Radio Receiver Terminal 51 50-304 120/240 Intelligate Transformer 52 50-510 Outlet Switch Cover 53 50-511 120 VAC Double Outlet 54 50-539 5/16" Socket Head Screw 55 50-547 1/4" Hex Bolt 56 50-548 3/16" x 3/8" Socket Head Screw 57 50-549 5/8" ID x 1 3/4" Bushing 58 50-767 Chain Release 59 50-768 1/2" Bolt Release 60 50-777 Intelligate Control Board |
