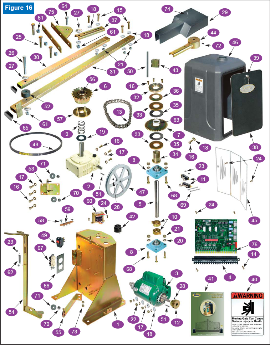

| RAMSET Gate Openers Ram 300 - Scroll Down to View Exploded Parts View or Illustrated Parts Breakdown For Swing Gate Openers Click Here for Replacement Parts Quote Form on all Inquiries |
| Click on Image to Enlarge, after new window opens click on image again to enlarge more or you can download PDF File RAMSET Parts Ram 300 |
| RAMSET Replacement Parts for your RAMSET Openers - We Offer RAMSET Factory Direct replacement parts and New Products for RAMSET Systems, Gate Openers, Keypad Parts, Proximity and Multi-Tenant Access Control panels |
| Item Parts # Description for Ram 300 Gate Operators 1 50-003 3/16" Hot Rolled Metal Chassis 2 50-026 Speed Reducer Size 50 60:1 Ratio 3 50-033 1/2 Hp 115 VAC Electric Motor 4 50-039 20 Pin Edge Connector 5 50-043 1" x 12" Shaft 6 50-047 41B21 Clutch Release 7 50-049 40 a 35 or 40 a 45 Sprocket 8 50-060 F 205 Flange Bearing 9 50-065 2" Tension Spring (Clutch Spring) 10 50-067 1" Limit Switch Cam 11 50-069 Limit Switch 00h-3 12 50-070 2" Cast Iron Pulley 13 50-084 # 40 Drive Chain 14 50-091 # 6 x 1" Machine Screw 15 50-092 3/8-16 x 1 1/2" Hex Head Bolt 16 50-095 5/16-18 x 3/4" Hex Head Bolt 17 50-096 5/16" Lock Washer 18 50-097 5/16" Flat Washer 19 50-100 3/4" Flat Washer Release 20 50-101 3/8" Lock Washer 21 50-103 3/8-18 Hex Head Lock Nut 22 50-104 5/16" Hex Head Nut 23 50-105 # 6 Hex Head Nut 24 50-107 # 6 x 3/8" Machine Screw 25 50-110 1/2-14 x 2 1/2" Hex Head Bolt 26 50-111 1/2-14 x 3 1/2" Hex Head Bolt 27 50-112 1/2" Flat Washer 28 50-114 1/4-20 Socket Head Screw 29 50-115 Polyethylene Cup Cover 30 50-117 1" x 2" x 34" Rectangular Metal Tube 31 50-118 1" x 2" x 46" Rectangular Metal Tube 32 50-119 Torque Limited Nut 33 50-120 3 1/2" Torque Limited Washer 34 50-121 3 1/2" Torque Limited Arbor 35 50-122 3 1/2" Torque Limited Friction Disc 36 50-123 3 1/2" Torque LImited Tension Washer 37 50-126 Channel 38 50-148 Access Door |
| Item Parts # Description for Ram 300 Gate Operators 39 50-149 Access Door Lock 40 50-151 Warning Sign for Gate 41 50-157 Instruction Manual 42 50-168 Horn Alarm 43 50-171 1 1/2" x 1 1/2" Sq. Pivot 44 50-172 3 1 1/2" Clamp Release 45 50-173 Lexan Glass Cover 46 50-174 Polyethylene Cover 47 50-175 10" Cast Iron Pulley 48 50-202 4L V Belt # 350 49 50-215 Rocker Switch 50 50-263 1/4" x 5" Key Way 51 50-265 3/16" x 3/4" Key Way 52 50-275 1 1/2" UHMW Spacer 53 50-277 Foot Release Guide Bracket 54 50-278 Foot Pedal Release 55 50-279 Under Foot Release Bracket 56 50-282 Arbor Release 57 50-283 4 Pin Disc Release 58 50-295 #8 Self-Tap Sheet Metal Screw 59 50-299 Radio Receiver Terminal 60 50-304 120/240 Intelligate Transformer 61 50-321 1/2" Hex Head Lock Nut 62 50-335 Spring 1/4" x 2" for Pedal Release 63 50-336 2" UHMW Ring 64 50-337 1/2" x 1 1/2" Hex Head Bolt 65 50-339 1" x 2" Plastic Cap 66 50-510 Outlet Switch Cover 67 50-511 120 VAC Double Outlet 68 50-519 3/8" x 1 1/2" Carriage Bolt 69 50-529 #6 x 2" Machine Screw 70 50-537 1/4" Hex Head Lock Nut 71 50-538 5/16" Fender Washer 72 50-539 5/16" Socket Head Screw 73 50-540 5/16" Hex Head Lock Nut 74 50-545 1/4" x 1/2" Phillips Machine Screw 75 50-546 Gate Bracket 76 50-777 Intelligate Control Board |
