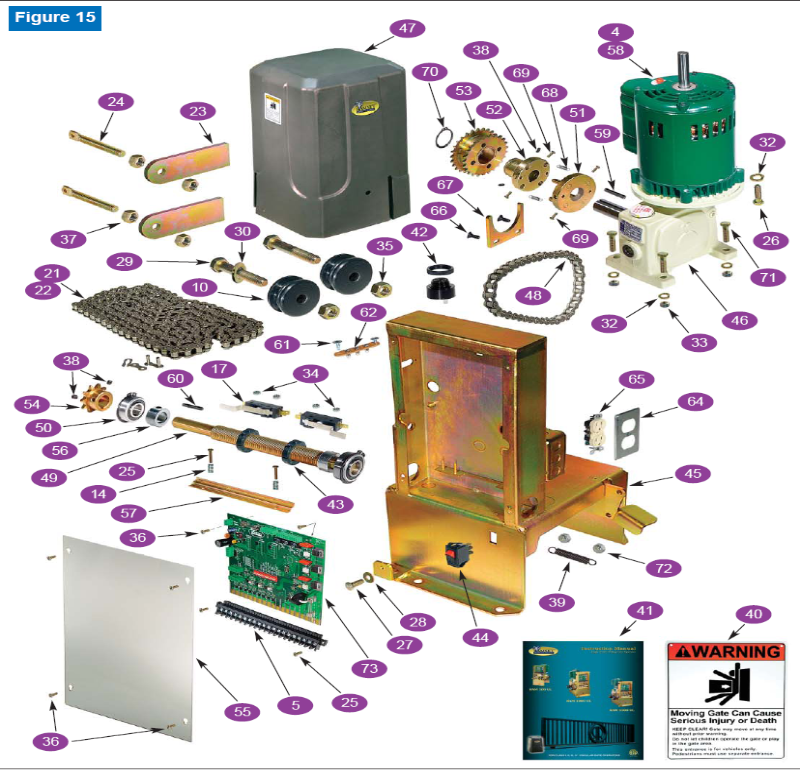

| RAMSET Gate Operators Ram 5500 - Scroll Down to View Exploded Parts View or Illustrated Parts Breakdown For Slide Gate Operators Click Here for Replacement Parts Quote Form on all Inquiries |
| Click on Image to Enlarge, after new window opens click on image again to enlarge more or you can download PDF File RAMSET Parts Ram 5500 |
| RAMSET Replacement Parts for your RAMSET Operators - We Offer RAMSET Factory Direct replacement parts and New Products for RAMSET Systems, Gate Operators, Keypad Parts, Proximity and Multi-Tenant Access Control panels |
| Item Parts # Description for Ram 5500 Gate Operators 5 50-039 20 Pin Edge Connector 10 50-058 3 1/2" UHMW Idler Pulley 14 50-064 1" Tension Spring 17 50-069 Limit Switch 00h-3 22 50-088 # 40 x 20' Gate Chain 23 50-089 3/8" x 2" x 7" Chain Bracket 24 50-090 1/2" x 4" Chain Bolt 25 50-091 # 6 x 1" Machine Screw 26 50-092 3/8"-16 x 1 1/4" Hex Head Bolt 27 50-095 5/16"-18 Unc x 3/4" Hex Head Bolt 28 50-097 5/16" Flat Washer 29 50-098 5/8"-11 x 3 1/2" Hex Head Bolt 30 50-099 5/8" Flat Washer 32 50-101 3/8" Lock Washer 33 50-103 3/8" Hex Head Nut 34 50-105 # 6 Hex Head Nut 35 50-106 5/8" Hex Head Nut 36 50-107 # 6 x 3/8" Machine Screw 37 50-113 1/2" Hex Head Nut 38 50-114 1/4"-20 Socket Head Screw 39 50-145 1/2" x 3" Tension Spring (pedal) 40 50-151 Warning Sign for Gate 41 50-157 Instruction Manual 42 50-168 Horn Alarm 43 50-208 Limit Switch Nuts 44 50-215 Rocker Switch 45 50-240 3/16" Hot-Rolled Metal Chassis 46 50-242 Speed Reducer Size 60 47 50-244 Polyethylene Cover 48 50-245 Limit Switch Chain 49 50-246 1" x 7" Limit Switch Shaft 50 50-247 3/4" Sealed Ball Bearings 51 50-248 4 pin Disc Release 52 50-249 1" Arbor release 53 50-250 41 b 27d Clutch Release Sprocket 54 50-251 41 b 15 x 3/4" Sprocket 55 50-252 Lexan Cover 56 50-253 3/4" Shaft Collar 57 50-254 Spring Load Bracket 58 50-256 3/4 HP Motor C face 59 50-264 1/4" x 1 1/2" Key Way 60 50-265 3/16" x 3/4" Key Way 61 50-295 # 8 Self-Tap Sheet Metal Screw 62 50-299 Radio Receiver Terminal 64 50-510 Outlet Switch Cover 65 50-511 120 VAC Double Outlet 66 50-513 1/4" x 3/4" Counter Zinc Bolt 67 50-514 Pedal Release Fork 68 50-516 3/16” Clutch Release Spring 69 50-517 #6 x 3/8" Zinc Screw 70 50-518 1 1/2" External Snap Ring 71 50-519 3/8" x 1 1/2" Carriage Bolt 72 50-540 5/16" Lock Nut 73 50-777 Intelligate Control Board |
