RamSet Residential Swinging Gate Opener Ram Set 30-30
Swing Gate Operator 1HP Heavy Duty
Ramset 30 30 UL 1 HP Swing Gate Operator
• Max Gate Capacity 3000 lbs. /20' length
• Max Operating Speed 16 seconds per 90°
• Motor: continuous duty 1 Hp
• Emergency hand leaver to release
• Dimensions: H:27 1/2" - L:23 1/2" - W:17 1/2"
• Power 220 VAC, 4.5 amp. UL 325 listed
• Shipping Weight: 250-lbs.

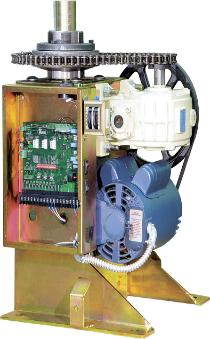

Heavy Duty Swing Gate Openers,Swing Gate Operators,Automatic Gate Operator
Rasmet 30 300
Ram 30 30 1Hp, 220VAC gate operator
GENERAL SPECIFICATIONS:
Max Gate Size  20'
Max Gate Weight   3000 lbs.
Motor  Continuous duty. 1Hp,  220VAC, 4.5amp 50/60 hz
Emergency Release  Foot pedal
Dimensions   H:27 1/2" - L:23 1/2" - W:17 1/2"
Travel Speed   90 degrees in 16   seconds

Ramset 30 30 Gate Operators of Openers
Electronic Features
Intelligent Control Board:
a reliable way to open and close gates continuously
Surge Protection:
gas discharge filter and MOV increases protection against surges and lightning strikes
Electronic Reversing Device (ERD):
innovative system that monitors current fluctuation; self-adjusting and reverses when obstruction is sensed
Electronic Inputs:
phone entry systems, three push button stations, radio receivers, fire boxes, digital key pads, loop detectors, photo cells, etc.
Automatic Timer:
gate closes automatically after desired amount of time (0, 5, 10, 15, 30, 45 or 60 seconds)
Master/Slave:
RS-485 multi node communication interface synchronizes movement between two gates
LAG/MODE LAG/DELAY:
integrated delay of 1 second between master and slave
Magnetic Lock:
24 VDC; lock connects directly to intelligent control board
Relay:
two integrated relays to use accessories such us alarms, lights, locks or cctv
Status of Gate:
micro bright L.E.D.s to show status of gate operator
Running Direction:
dip switch changes direction for right/left hand operation

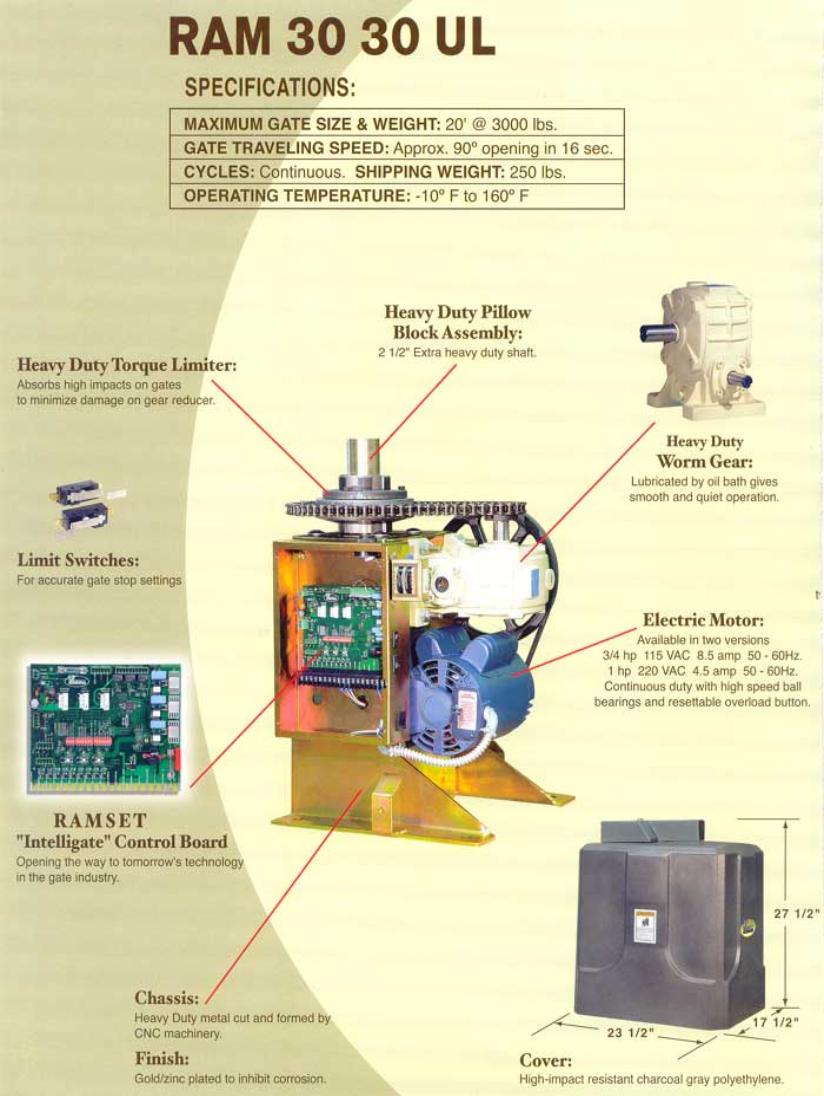

Super Heavy Duty Ramset Spec Sheet For Gate Openers, Operators
Electronic Gate Circuit Board Ramset Slide,Swing Gate Opener
Electric Gate System Gate Motor Power Gate Automatic Gates Ramset 30 Swing
Ramset Residential Electric Gates Electric Opener Electronic Gates
Ramset Gate Receiver Remote Control Gates Driveway Gate
Ramset Electric Driveway Gates Electronic Gate Motors
Ramset Gate Controls Power Gates Gate King Manufacture
Commercial Gate Openers Automatic Opener Gate Keypad
Super Heavy Duty Commercial Gate Operators Gate System
Ramset Residential Sliding Gates Electronic Gates With Remote Controls
Heavy Residential Opener Gate Motor Power Gate Gate Control
Automated Gate From Ramset Gate Openers Sliding Electric Driveway Electronic Gates
Ramset Automatic Gates Sliding Gates Motors Power by Ramset
Sliding Gates Ready for Gate Intercom Gate Keypad and Remote Controls
Heavy Commercial Gate Motors Power Gates with Gate Controls
Gate King of Openers Ramset Slide Door Automatic Gate Openers
All Brand Vehicle Barrier Arms,Liftmaster Mega Arm,Doorking 1601,1602,1603,OSCO BGU,OSCO BGUS,OSCO BGUD,PowerMaster P1500,P5000,MBG,Viking B12,FAAC,FAAC 615,FAAC 620,Apollo BA12,SEA Vela,SEA Vela Industrial
For Main Control
Board Click Here:
CLICK HERE TO PURCHASE OR VIEW COMPLETE SELECTION OF RAMSET GATE
OPENERS AND ACCESSORIES
About Us  |   Contact Us   |   Our Policies   |   FAQ   |   Manufactures   |   Links   |
Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp.  All rights reserved. No part of this site can be
reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written
consent of L. A. Ornamental & Rack Corp.
3708 NW 82nd Street  Miami  Florida  33147, Office: 305-696-0419  Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com
Custom Decorative Ornamental Wrought Iron and Aluminum Driveway Gates
Custom Decorative Ornamental Estate Metal Driveway Gates
Great Selection of Aluminum Driveway Gates, Modern designs all welded construction powder coat Oven Baked
We Custom make all of our driveway gates to your specs all installation hardware is included
Privacy Gates,Privacy Driveway Gates,Metal Backing,Wood Insert,Privay Panels
Garden Gates, Walk Thru Gates, Garden Walk Through Gates, Wrought Iron or Aluminum Iron Garden Walk Gates
All our Garden gates are custom made to match driveway gates and fencing complementing your home exterior design
Metal, Plexiglas, Krinkglas, Wood are use as Privacy panels backing with an array of color to choose from
Aluminum Picket Fence, Pool Fence, Security Pool Fence
Custom Fence Wrought Iron Fence Fencing Metal Design Steel Ornamental
Deck Railings, Iron Railings,Porch Railings,Balcony Railings,Hand Rails, Aluminum or Wrought Iron Metal Railings
We make Custom modern railings for Balconies,front porch,Decks, pool area all welded Aluminum
Gate Openers-Gate Operators, Top Brands,Power Master,Eagle,Elite,RamSet,DoorKing,OSCO,SEA
Full line of Viking gate openers, operators and barriers, all Viking openers are equip with battery back up
Complete Power Master gate openers, operators available on line
We are pround to carry the FAAC Gate Opener line including parts and customer service 2nd to none
Apollo Gate openers the best Solar operators in the market, available in residential, commercial and industrial models, single swing,dual and slide
BFT all UL/CSA approved electromechanical and hydraulic operators, rack & pinion,kits, great openers at agreat price
Liftmaster gate opener,operators and barriers designed to meet your access control and security needs
Elite Gate Operators the leading provider of gate operators
Doorking also known as “DKS” manufacturers of telephone entry systems, vehicular gate operators, parking control products and access control systems in the US
OSCO Linear Gate Operators swing Slide Barriers Variable Speed Residential Commercial Industrial
Allstar Gate Openers part of Linear corp
Eagle Gate Openers Operators Residential Commercial swing slide
SEA an Italian line of gate openers, Rack & Pinion,chain,swing
Hysecurity when only the best will do, Hysecurity is the line of openers that you want
Control Boards, Main Circuit Boards, MotherBoards, Main Control Circuit Boards for Gate Operators
Remote Controls Multi-Code Linear Liftmaster Chamberlain Clicker Mini Transmitter Heddolf Skylink
Multi code remote controls available in visor style and key chain style, 1,2 and 4 buttons in 300 and 310 mhz
Linear Remote Controls, Delta 3,Mega Code,Block Code,310MHZ,318Mhz
Liftmaster Remote Controls we carry older models as well like 61lm,62lm,63lm,64lm,971lm,972lm,973lm,974lm and new item as well
Doorking remote control MicroClick,MicroPlus Block codes
Keystone Heddolf has one of the largest selection of frequency in the market including extended range remotes
BFT FAAC SEA are all italian brand with a European frequency 433Mhz and 418Mhz
Long Range Remote controls and receivers from several brands
Receivers from Linear, DoorKing, Multi-Code, Liftaster, Heddolf, Extended Range
Multi Code Linear Extensive line of Receiver for any access remote needs including long range
Doorking Receiver Microplus Microclick RF Control Access Control 8054 Series 8057 Series 8055 Series 8053-080 8056-080 8059-080 8060-061
Liftmaster Receiver 312HM 412HM 635LM 365LM Star450 Passport CPWR3 423LM TCR TCG
Keystone Heddolf Receiver 318Mhz 300Mhz Long Range ER294 M294 P294
Long Range Remote and Receivers from several brands
Phone entry system, Doorking, American access System, Linear, Elite, Select Engineered,Sentex
SES - Select Engineering System for your telephone access control residential or commercial application
AAS - American Access System telephone entry keypads card readers
Doorking Telephone Entry residential commercial keypad intercom for all you access control needs
Liftmaster TAC1 telephone entry and keypad WKP5LM WKP250LM
Sentex Infinity L, Infinity S, Infinity M, Infinity B
Elite gate entry system EL25 EL2000 Dial Code Icon 26
Linear TelephoneEntry System AE100,AE500,AE1000,AE2000,RE1,RE2
IP Telephone entry Voice over internet anolog GSM Gate way Cell phone remote IP Video Gate Intercom Door phone entry
Loop Detectors, PhotoCell, Exit Devices, Emergency Entry Equipment
Safety loop EMX, BD Loop, Doorking, Preform, saw cut, pave over
Safety Photo Cell Infrared Reflector Vehicle Detector Safety Photo Beam
Gate Accessories - Roller Guides, Wheels, Hinges, Latches
Cantilever Gate wheels Gate Rollers Heavy Duty Gate Wheels Rolling Gate Wheels
Inverted V track gate wheels guide rollers Groove Wheels Slide Gate Hardware Galvanized Aluminum Track
J-Bolt Adjustible gate hinges spring pool hinges Heavy Duty driveway gate hinges
Gate Latch Pool gate latch double dead bolt lock lever passage lock pool safety lock
Gate Openers or Operators Parts - Replacement Parts
Solar Panel 5 watts 10 watts 20 watts 50 watts apollo viking
Welcome to: GATESNFENCES.COM
Designed to satisfy the need for gate operators in high traffic areas, such as
residential gated communities, public storages, industrial parks and government
facilities. In September 1994, Ramset Automatic Gate Systems Inc., began supplying
a new generation of reliable vehicular gate operators. The Ramset series of slide
and swing gate operators are designed to satisfy the need for gate operators in
high traffic installations, such as residential gated communities, public storage,
industrial parks and U.S. government facilities.
Back to Main Ramset Gate Operators Page

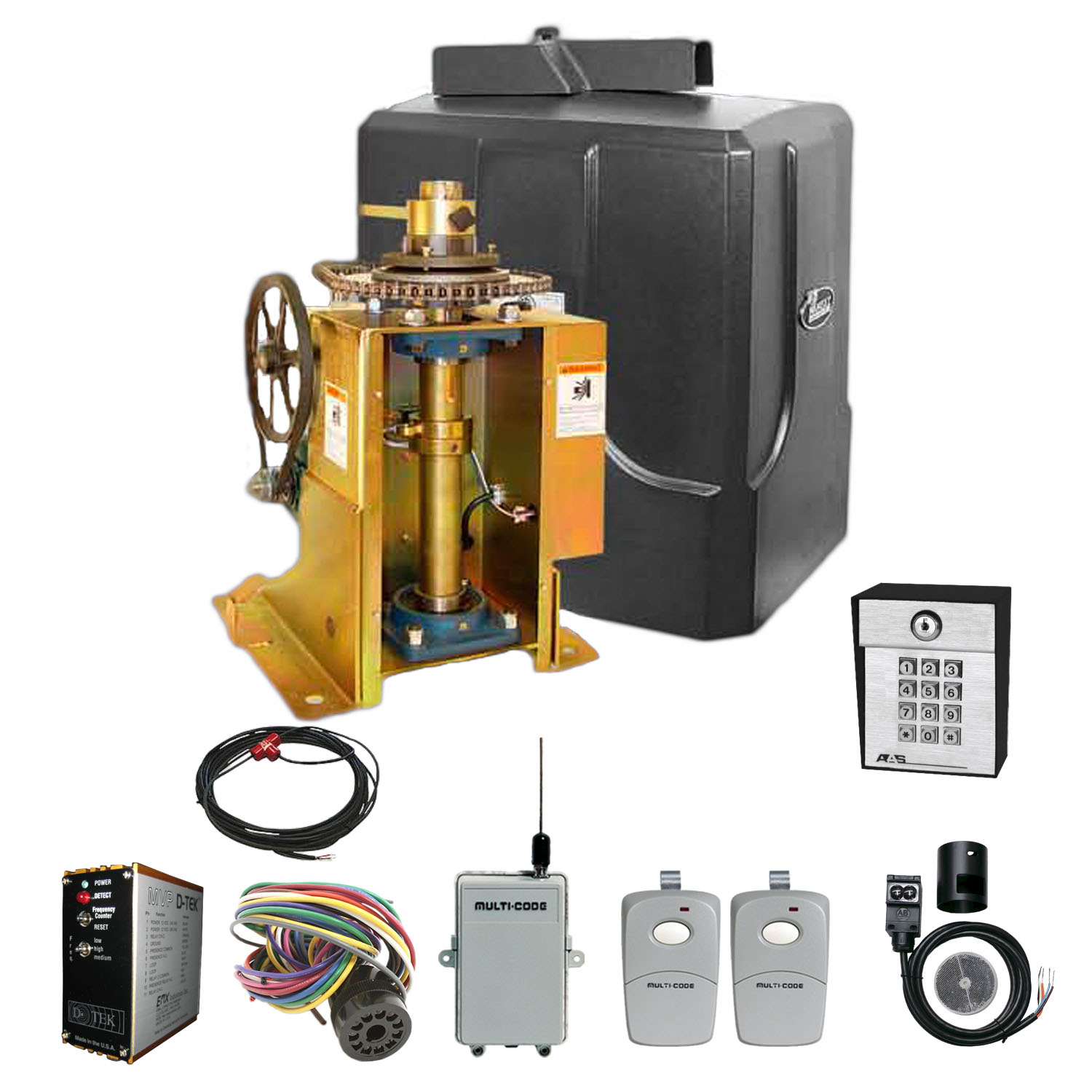

Ramset Swing Gate Opener 30-30-1HP - Heavy Duty Commercial Swing Gate Opener
