BFT is one of Italy's leading gate operator specialists, with 15 years of experience in automatic gate technology. The product portfolio
includes a wide range of gate operator products suitable for Domestic, Commercial and Industrial applications. Providing a
comprehensive range of imported gate operator equipment for both residential and commercial gates. For new gates or existing gates.
For large gates and small gates, for gates that open inwards or outwards, for large or small columns and Barriers.


|
ARES 1000
|
ARES 1500
|
Control panel
|
HQSC-D (incorporated)
|
HQSC-D (incorporated)
|
Reversible/irreversible operator
|
irreversible
|
irreversible
|
Power supply
|
120 V 60 Hz single-phase
|
120 V 60 Hz single-phase
|
Absorbed power
|
240W
|
250W
|
Thermal protection
|
integrated in the control unit
|
integrated in the control unit
|
Leaf speed
|
5.9 ips (9m/min)
|
5.9 ips (9m/min)
|
Output rotational
|
speed 39
|
speed 39
|
Pinion pitch
|
4 mm (18 teeth)
|
4 mm (18 teeth)
|
Impact reaction
|
electronic torque limiter
|
electronic torque limiter
|
Limit switches
|
electromechanical
|
electromechanical
|
Manual release
|
mechanical release with knob
|
mechanical release with knob
|
Operating cycle
|
intensive use
|
intensive use
|
Environmental conditions
|
from 5°F (-15°C) to 140°F (+60°C)
|
from 5°F (-15°C) to 140°F (+60°C)
|
Degree of protection
|
IP24
|
IP24
|
Operator weight
|
44 lbs (~20 kg)
|
44 lbs (~20 kg)
|
Fuse value (H-qsc board tansformer)
|
0.63A T
|
0.63A T
|
Fuse value (H-qsc board logic unit)
|
2A T
|
2A T
|

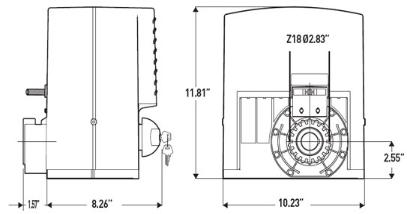

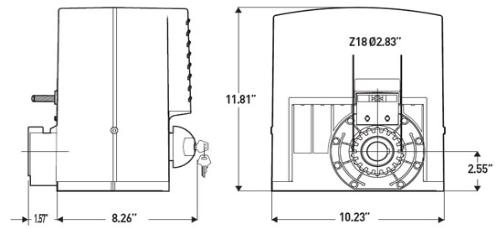

Dimensions see below see below
|
|
|
|
Model
|
Voltage
|
Leaf Weight
|
P926183 00001 ARES 1000
|
24V
|
up to 2,200 lbs (~1,000 kg)
|
P926182 00001 ARES 1500
|
24V
|
up to 3,300 lbs (~1,500 kg)
|
|
Electromechanical Automation For Rack Sliding Gates
THE SLIDING GATE OPERATOR OFFER IS NOW EVEN WIDER
•ARES 1000 and ARES 1500 operator widen the BFT range of sliding gate operators. Classed amongst the “medium-heavy” weight range, they integrate with existing products to obtain an operator that is perfectly suited to the gate every time. LOW VOLTAGE MOTOR
•The 24 V electrical motor guarantees maximum accuracy in torque and speed control on the one hand, and on the other makes it suitable for intensive gate use, even in industrial installations. •Optional battery back-up can be fi tted within the operator casing.
|
BFT ARES 1000 - ARES 1500
P926183 00001- BFT ARES 1000 - 120V - 24V Up to 2,200 Lbs
|
|
P926182 00001- BFT ARES 1500 - 120V - 24V Up to 3,300 Lbs
|
|
BFT Mitto 2-Button Keychain Remote Control 433MHZ Rolling Code Technology $20.95
|
|
1 Section of Rack - 1Meter long
|
|
|
