|HySecurity gate operators meet the most stringent governmental, industrial, corporate and residential security and reliability
requirements. They are installed at Baghdad International Airport, Fort Knox, The United Nations, numerous federal, state and
municipal sites, nearly every oil company, water treatment plants nationwide, corrections facilities, transportation facilities,
corporate campuses, power generation facilities, mini storages, gated communities and VIP residences. Call for more applications
|SwingSmart DC is HySecurity’s electromechanical, pad-mounted swing gate operator for
residential, commercial, and industrial applications. Ultimate reliability is maintained in the coldest,
hottest, most humid, driest, saltiest, high cycle, windy, and brutal environments.
|About Us | Contact Us | Our Policies | FAQ | Manufactures | Links |
Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be
reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written
consent of L. A. Ornamental & Rack Corp.
3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com

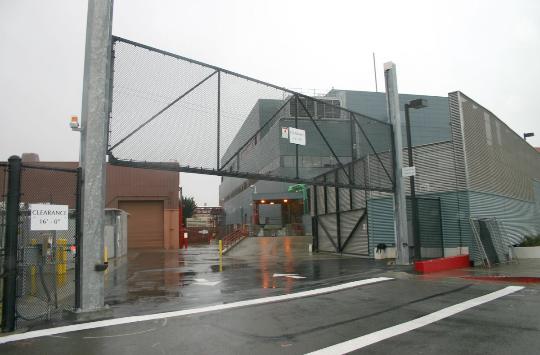

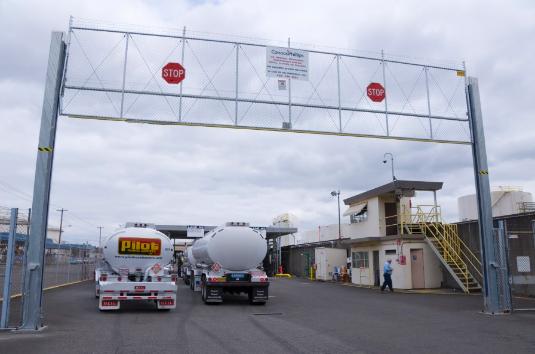

|HydraLift, HySecurity’s industrial, hydraulic vertical-lift gate operator, is often chosen for multi-lane traffi c
control applications because it securely opens a wide area very quickly. The HydraLift is also used where
space constraints restrict the use of slide or swing gates, on applications requiring maximum security, or
when seeking a low maintenance option for an overhead door system. HydraLift eliminates the need for
expensive cantilever gates.
|HydraLift 10 Vertical Lift, 1,000 lb. gate, 12” per sec.
HydraLift 10 UPS Vertical Lift, UPS backup, 1,000 lb. gate, 12” per sec
HydraLift 10F Vertical Lift, Fast, 1,000 lb. gate, 24” per sec
HydraLift 10F UPS Vertical Lift, Fast, UPS backup, 1,000 lb. gate, 24” per sec
HydraLift 20 Vertical Lift, 2,000 lb. gate, 12” per sec.
HydraLift 20 UPS Vertical Lift, UPS backup, 2,000 lb. gate, 12” per sec
HydraLift 20F Vertical Lift, Fast, 2,000 lb. gate, 24” per sec.
HydraLift 20F UPS Vertical Lift, Fast, UPS back-up, 2,000 lb. gate, 24” per sec Duty
|Standard, AC HydraLift models are rated continuous duty and cycles gates eff ectively in the highest cycle
applications. It comes with a 200,000 cycle certifi cation. Often installed on transit facilities, truck freight
depots, heavy equipment airport access sites, and industrial, multi-lane freight yards. HydraLift is also
installed at the entrances of high end apartment and condominium complexes as well as skyscraper
parking garages because of the signifi cantly reduced maintenance and ongoing costs which are common
to traditional overhead door systems.
Industrial Grade Components
HydraLift is designed with industrial grade components, insuring decades of low maintenance, high

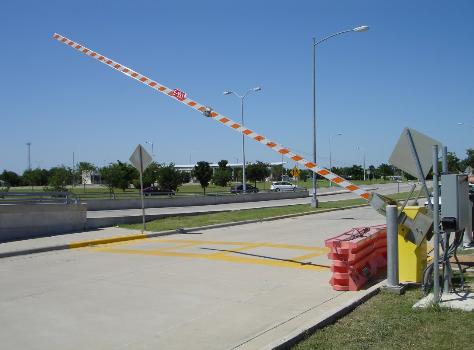

|Hydraulic barrier arm operator meets the demanding reliability
requirements of corporate, industrial and government users. Barrier arm
length to 36' satisy requirements for specialty applications such as airport
runways and multiple
|Part Number HTG 320-2 ST HTG 320-3 ST HTG 320-6 ST HTG 320-8 ST
Arm Length Max. 14' 20' 28' 36'
Rate of Travel 2 sec to open 3 sec to open 5 sec to open 8 sec to open
3 sec to close 4 sec to close 6 sec to close 8 sec to close
Duty Cycle 2,000/day 2,000 /day 2,000 /day 2,000 /day
Arm Design Side mount Side Or Center Center Center
yoke mount yoke mount yoke mount yoke mount
Arm Material Aluminum Aluminum Aluminum Aluminum
Fiberglass Fiberglass Fiberglass Fiberglass
Wood Wood (to 14')
UL Listing I, II, III, IV I, II, III, IV III, IV III, IV
All Models Features: UPS Backup: DC battery backup or full functionality during AC power loss
|Modular: Electrical control box, pump, and motor assembly are remotely located in a
mounting applications Available on ALL MODELS
Correctional Facility Available in all model except SliderDriver 10: Heavier, ten gauge
cover for added protection and three options for high security cover lock
UPS Backup: DC battery backup for full functionality during AC power loss Not
available for SlideDriver 50VF2-C & SlideDriver 50VF3-C
Correctional Facility with UPS Backup: all model except SlideDriver 50VF2 --
Modular with UPS Backup: all model except SlideDriver 50VF2 -- SlideDriver 50VF3
Modular, Correctional Facility: all model except SlideDriver 10
Modular, Correctional Facility with UPS Backup: all model except SlideDriver 50VF2 --
|Standard Model: SlideDriver 10 SlideDriver 40 SlideDriver 30F SlideDriver 50VF2 SlideDriver 50VF3 SlideDriver 80 SlideDriver 200
Part Number: 222 SS ST 222 E ST 222 EX 1.7 ST 222 X2 ST 222 X3 ST 222 X1 ST 444 XS ST
Gate Weight Max. 1,000 lb 4,000 lb 3,000 lb 5,000 lb 5,000 lb 8,000 lb 20,000 lb
Gate Length Max. Limited only by weight on ALL MODELS
Rate of Travel: 12" per sec. 12" per sec. 20" per sec. 26" per sec. 36" per sec. 12" per sec. 12" per sec.
Duty Cycle: Continuous on ALL MODELS
Draw Bar Pull 300 lb 300 lb 300 lb 300 lb 300 lb 600 lb 1,200 lb
UL Listing I, II, III, IV I, II, III, IV III, IV III, IV III, IV III, IV III, IV
|SLIDEDRIVER : The original ultra-reliable and secure hydraulic slide gate operator chosen for thousands of
secure sites nationwide. Fully enclosed hydraulic motors drive a rigid drive rail passing between two compressed
polyurethane wheels. Few moving parts. Lasts decades.
SlideDriver, the fi rst and most specifi ed, hydraulic slide gate operator, is most often chosen for sites requiring one
or more of the following: high security, ultra reliability and low maintenance, high power to move large gates, fl exible/
high performance, or seamless integration with sequenced operators and command and control security systems.
SlideDrivers protect a large percentage of America’s critical infrastructure and key assets, including airports, ports,
international borders, energy production and distribution sites, petrochemical production, storage and distribution
plants, water and sewage treatment, military and defense, dams, commercial and industrial, telecommunications and
technology, courts, law enforcement, corrections, and every level of government, including U.S. embassies
cable to drive up to a 38' gate. Whisper quiet operator, high cycle, and ultra reliable. Standard equipment
Uninterruptible Power Supply (UPS) runs for 1,000 feet after AC power loss.
|Standard Model SlideWinder 24 SlideWinder 38
Gate Length Max. 24' 38'
Gate Weight Max. 1,200 lb 2,000 lb
Rate of Travel 12" per sec User adjustable up to 24"/sec
Duty Cycle Continuous Continuous
Drive Small cable drum Small cable drum
UL Listing I, II, III, IV I, II, III, IV
Models with additional Features:
Solar SlideWinder 24S SlideWinder 38S
|SlideWinder is HySecurity’s elegant, fl exible, secure, and reliable commercial/residential slide gate operator. It
provides the unparalleled user advantages of HySecurity’s feature laden Smart Touch Controller, the elegance of a
clean, quiet, and nearly maintenance-free stainless steel cable drive, and the security of thousands of feet of gate
travel after an AC power loss.
Power outage? No problem. SlideWinder keeps your perimeter secure and gate operating for thousands of feet
using its UPS battery backup. All obstruction protection and access control devices can be powered by SlideWinder’
batteries, keeping the whole system operating normally. Many municipalities require battery backup on automated
gate systems to insure access by fi re and police in case of emergency. SlideWinder is the answer to this
Residential and Commercial Elegance
Eliminate that maintenance-prone, rusty, greasy, ugly chain in favor
of SlideWinder’s clean and elegant stainless steel cable drive. It doesn’t
stretch. Needs no lubrication. You won’t fi nd grease splotches on your
driveway underneath SlideWinder’s cable. It’s almost invisible and it’s
whisper quiet (chains and gears are noise makers). SlideWinder’s gradual
rise-to-speed and slowdown-to-stop add to its grace and style while
reducing wear and tear on gate and gate hardware. SlideWinder’s granite
color cover delivers clean architectural lines and a look that will enhance its surroundings.
|raising the gate panel a full 12" during the gate opening cycle. Lifting clears
obstacles such as snow, rocks, curbs, and gradient differences. The locking pin
secures the gate as it drops into a roadway locking receptacle when the gate gently
lowers at the end of its cycle.
UPS Backup: DC battery backup for full functionality during AC power loss All

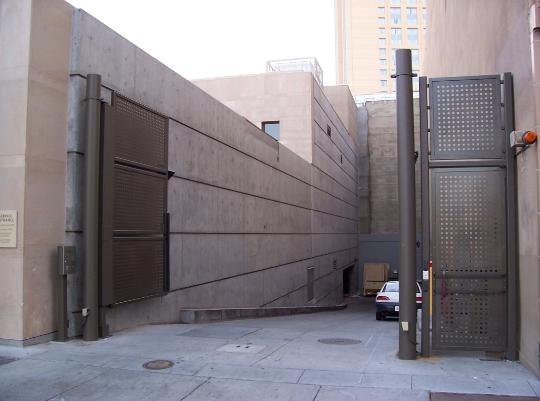

SwingRiser is a robust, ultra-reliable swing gate operator, opening high-design
residential or secure industrial gates with an elegant lift and swing movement. It
offers the ultimate in elegance, utility, reliability, security, and low maintenance.
SwingRiser raises the gate panel a full 12 inches during its gate opening cycle. The
lift and swing movement allows the gate to clear obstacles such as snow, rocks,
and curbs, while also solving the problem of road gradient diff erences.
At the end of its close cycle, the locking pin gently lowers into its ground or post
mounted locking receptacle, securely locking the gate. SwingRiser is as equally
suited for a chain-link government agency gate, as for an impressive Estate gate,
where the gate is an elegant bronze, ornamental iron, or aluminum work of art.
|Standard Model: SwingSmart DC 20
Gate Length Max. Up to 20' leaf / 6.1 meters
Gate Weight Max. 1,300 lb / 590 kg
Rate of Travel 10 to 15 seconds. Variable speed, open/close set
Duty Cycle Continuous
Temp. Rating -13F to 158F (-25C to 70C)
Certification 500,000 cycles
Accessory Power 12 to 24 volts DC + 24 volts AC
Communication USB, RS 232, RS 485, Ethernet opt.
Power: single phase 115 volts, 50/60 Hz. std; 220 volts, 50/60 Hz.
UL Listing I, II, III, IV
Warranty 5/7 years* (*commercial/single family residential)
Models with additional Features:
Solar SwingSmart DCS 20
|Standard Model SwingRiser 14 SwingRiser 14 Twin SwingRiser 19 SwingRiser 19 Twin SwingRiser 30 SwingRiser 30 Twin
Part Number HRG 220-A ST HRG 222-A ST HRG 220-B ST HRG 222-B ST HRG 220-C ST HRG 222-C ST
Gate Weight Max. 1,000 lb 1,000 lb/leaf 1,600 lb 1,600 lb/leaf 3,000 lb 3,000 lb/leaf
Gate Width Max. 9' 9' each leaf 16' 16' each leaf 16' 16' each leaf
Rate of Travel 14 sec open/close 14 sec open/close 19 sec open/close 19 sec open/close 30 sec open/close 30 sec open/close
Duty Cycle continuous continuous continuous continuous continuous continuous
UL Listing I, II, III, IV I, II, III, IV I, II, III, IV I, II, III, IV I, II, III, IV I, II, III, IV
