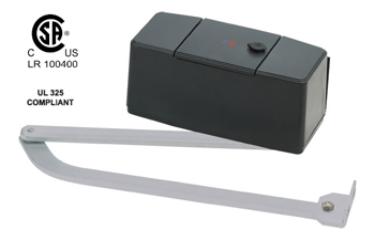

|Electromechanical Operator For Swing Gates
•The large anti-shearing arms allow installation on columns
with angles up to 125°.
•Quick and easy manual release.
•Adjustable limit switches.
•Maximum recommended offset 12” (could go to 18”).
• 24V DC and 120V AC electromechanical operators for
residential use for gate up to 550Lbs and 10Ft.
• Incorporated electrical limit switches.
• Torque limiter from the Rigel 5 control panel.
• Adjustable slow-down on opening and closing.
• Opening up to 125 Degrees in 15 seconds.
JOINT: Provides an in dispersible automation system for
swing gates installed on particularly large pillars. The drive
arm with its special anti-shearing shape allows the leaves
to be moved when the controller is positioned well away
from their fulcrum. The irreversible electromechanical
reduction gear keeps the gate locked in the closing and
opening positions. The emergency release mechanism is
carried out by operating the release lever of each
controller, located inside the hatch which is provided with
a personalized key. Joint must be combined with a control
unit with a torque limiter such as the Aries model control
unit. The adjustable limit micro switches and capacitor are
connected to the motor.
This controller is suitable for residential use and has been
designed for swing gates with particularly large gate posts.
The drive arm, built with a special
anti-shearing shape, allows the leaves to be moved when
the controller is considerably out of place with respect to
the fulcrum of the leaves.
The non-reversible electro-mechanical gearmotor
maintains the stop during closing and opening. The
release lever, fitted in each controller and situated
inside the door fitted with personalised key, allows the
manual manoeuvre to be easily carried out
1 or 2 BFT Joint UL operators
1 or 2 External release mechanism
1-Aries control board
1- AGW radio receiver
2- AGW transmitters

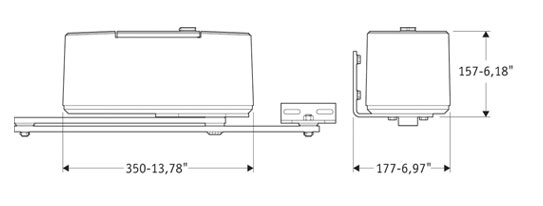

|Model||Voltage||Leaf Weight||Leaf Length|
|P935041 00003 JOINT UL/CSA||
|up to 550 lb (250 kg)||up to 10’ (3 m)|
|Control panel||ARIES UL/CSA|
|Power supply||120 V 60 Hz single-phase|
|Absorbed power||0.4 hp (300 W)|
|Opening and Closing Time||15 s|
|Impact Reaction||torque limiter integrated in the control panel|
|Manual Release||lockable door and release knob|
|Operating cycle||intensive use|
|Environmental conditions||from 5°F (-15°C) to 140°F (+60°C)|
|Degree of protection||IP44|
|Operator weight||35 lb (~16 kg)|
