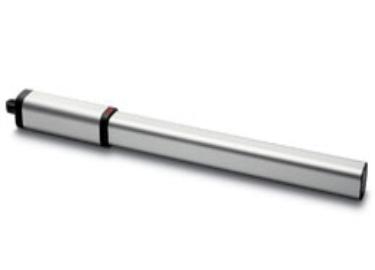

A MODEL FOR EVERY NEED •Several versions available: with slowdown, internal positive stops, longer stroke. All of them are irreversible. SAFE USE •Crushing prevention guaranteed by two adjustable bypass valves. These 120 volt hydraulic linear arms will give full satisfaction and will smoothly operate any gate up to 700 pounds per leaf. Special features: • Opening angles of 120 degrees • Irreversible (cannot be opened manually when motor is engaged) • Easy manual release in case of power failure • Opening and closing: 17 seconds (30 seconds on larger model) • Adjustable working time from LCD panel control board • Rated up to 500 opening and closing cycles per day • Six different models to ensure that all application and installation scenarios are met • Optional internal positive stops available on some operators: no need for external stops on the driveway • Optional thermostatically controlled heater available to ensure smooth operation in colder climates • Install a complete pre-wired electrical enclosure box to further improve aesthetics and add many optional entry and safety systems all in one confined lockable enclosure box Hydraulic gate openers are stronger and more reliable than electromechanical gate openers, and are therefore trusted more. They offer many advantages that make them superior and preferable over electromechanical gate openers. The main shaft of the gate operator is filled with hydraulic fluid, and there is a stopper in the center which separates the fluid into 2 chambers within the shaft. The stopper is connected to the part of the operator that moves in and out, opening and closing the gate. The motor is next to a pump with 2 tubes - one reaching into one chamber of fluid and another reaching into the other chamber of fluid. When activated, the pumps take water out of one chamber and pump it into the other chamber, which forces the stopper and likewise the gate operator to move in and out depending on whether the gate is opening or closing. Because of this simple design, hydraulic gate operators are much more reliable than electromechanical gate operators. Gate opener can operate in extreme temperatures. From 14 degrees Fahrenheit to 140 degrees Fahrenheit (-10 C to + 60 C). Strong, compact hydraulic piston, available in various versions depending on specific needs and field of use. There are models featuring hydraulic locking and non-locking (reversible) models that need a solenoid lock to keep them in position. Operating force is adjusted with extreme precision by means of the control unit’s electronic control. Operation at the end of travel is adjusted electronically in the control panel. |
LUX 2B UL/CSA | LUX FC 2B UL/ CSA | |
Control panel | RIGEL 4 UL/CSA (suggested) | RIGEL 4 UL/CSA (suggested) |
Reversible/irreversible operator | irreversible | irreversible |
Power supply | 120 V 60 Hz single-phase | 120 V 60 Hz single-phase |
Absorbed power | 0.33 hp (250 W) | 0.33 hp (250 W) |
Thermal protection | integrated | integrated |
Rod working stroke | 10.63’’ (270 mm) | 11.02’’ (280 mm) |
Rod speed | 0.55 ips (14 mm/s) | 0.55 ips (14 mm/s) |
Opening and Closing Time | 17 s | 18 s |
Slowdown | - | - |
Impact Reaction | hydraulic clutch | hydraulic clutch |
Lock | hydraulic opening/closing | hydraulic opening/closing |
Manual Release | release key | release key |
Operating cycle | intensive use | intensive use |
Environmental conditions | from 5°F (-15°C) to 140°F (+60°C) | from 5°F (-15°C) to 140°F (+60°C) |
Degree of protection | IP57 | IP57 |
Operator weight | 19 lbs (~8,7 kg) | 19 lbs (~8,7 kg) |

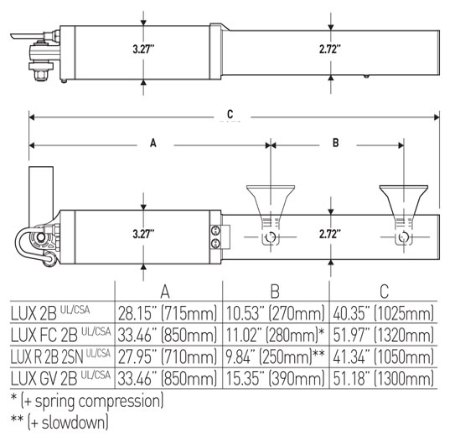

Dimensions | see below | see below |
LUX R 2B 2SN UL/CSA | LUX GV 2B UL/CSA | |
Control panel | RIGEL 4 UL/CSA (suggested) | RIGEL 4 UL/CSA (suggested) |
Reversible/irreversible operator | irreversible | irreversible |
Power supply | 120 V 60 Hz single-phase | 120 V 60 Hz single-phase |
Absorbed power | 0.33 hp (250 W) | 0.33 hp (250 W) |
Thermal protection | integrated | integrated |
Rod speed | 9.84’’ (250 mm) | 15.35” (390 mm) |
Opening and Closing Time | 0.55 ips (14 mm/s) | 0.55 ips (14 mm/s) |
Opening and Closing Time | 16 s | 27 s |
Slowdown | on rod extension | - |
Impact Reaction | hydraulic clutch | hydraulic clutch |
Lock | hydraulic opening/closing | hydraulic opening/closing |
Manual Release | release key | release key |
Operating cycle | intensive use | intensive use |
Environmental conditions | from 5°F (-15°C) to 140°F (+60°C) | from 5°F (-15°C) to 140°F (+60°C) |
Degree of protection | IP57 | IP57 |
Operator weight | 19 lbs (~8,7 kg) | 19 lbs (~8,7 kg) |
Dimensions | see below | see below |
