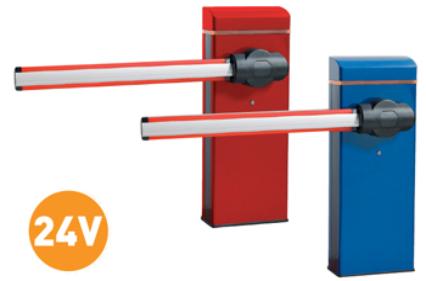

|Electromechanical Operator For Road Barriers
A MODEL FOR EVERY NEED
•Possibility of closing passages up to 8 m.
•Electronic adjustment of the limit switches.
•The new position of the control panel makes it
possible to operate in a vertical position.
•The barrier features a very stout structure to
guarantee greater protection from vandal attacks
and constant reliability in use.
•The blinker and the support for the photocells are
integrated in the frame (optional), the lights are
integrated in the boom (optional).
•Cabling is simplifi ed by means of the ducting for
housing the cables themselves.
|About Us | Contact Us | Our Policies | FAQ | Manufactures | Links |
Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form
or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp.
3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com
MICHELANGELO 60 MICHELANGELO 80
Control panel LIBRA C MV (incorporated) LIBRA C MV (incorporated)
Reversible/irreversible irreversible irreversible
Power supply 24 V 24 V
Absorbed power 0.4 hp (300W) 0.4 hp (300W)
Opening/ Closing Time 6 s (19.6’) 8 s (26.2’)
Impact Reaction electronic torque limiter integrated in the control panel electronic torque limiter integrated in the control panel
Type of Limit Switches electronic opening/closing electronic opening/closing
Manual Release fast key release fast key release
Operating cycle very intensive use very intensive use
Environmental conditions from 5°F to + 140°F from 5°F to + 140°F
Degree of protection IP24 IP24
Operator weight without Boom 680 N (150lb) 680 N (150lb)
Dimensions see below see below
Fuse values libra CMV 1A T 1A T
