L. A. Ornamental & Rack Corp 3708 NW 82nd Street Miami, Florida 33147 Office: 305-696-0419 Fax: 305-696-0419 |
|
SMART TECHNOLOGY •Hydrodynamic joint for smooth gate starts and stops. SAFE USE •The strength and compactness of the structure guarantee the maximum reliability of operation over time. •The operator makes it possible to automate any type of gate, even the heaviest. |
BFT SP4000 Electromechanical Automation For Rack Sliding Gates |
|
About Us | Contact Us | Our Policies | FAQ | Manufactures | Links | Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp. 3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com |
Model | Voltage | Leaf Weight |
P925169 00001 SP4000 | 400 V three-phase |
up to 8800 lbs (~4000 Kg) |
P925169 00002 SP4000 230 V | 230 V three-phase |
up to 8800 lbs (~4000 Kg) |
Control panel | SIRIO TEL (incorporated) |
Reversible/irreversible operator | irreversible |
Power supply | 120 V~ ± 10%, 50 Hz three-phase |
Absorbed power | 2 hp (1500 W) |
Thermal protection | overload cutout inside the control panel |
Leaf speed | 32’/min |
Output rotational speed | 30 min |
Pinion pitch | 6 (18 teeth) |
Limit switches | electromechanical |
Manual release | mechanical release with knob |
Operating cycle | very intensive use |
Environmental conditions | from 5°F (-15°C) to 140°F (+60°C) |
Degree of protection | IP24 |
Operator weight | 187 lbs (~85 kg) |

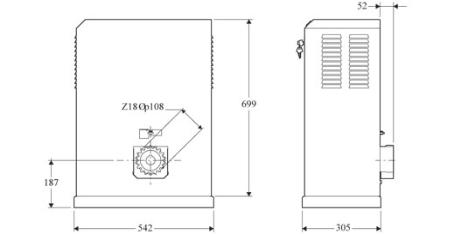

Dimensions | see below |
