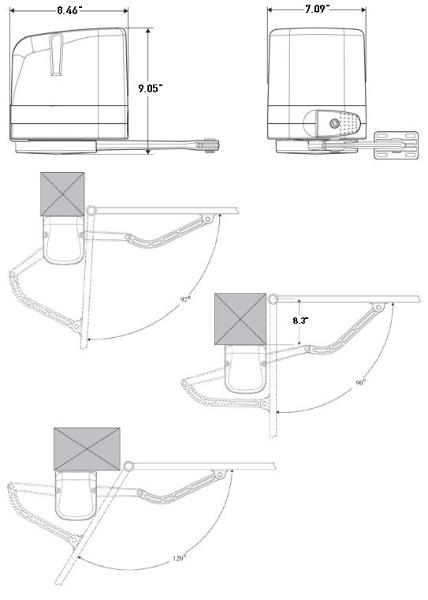

A MODEL FOR EVERY NEED •Great versatility thanks to the levers that permit installation on columns for opening up to 120°. Maximum offset 8” (20 cm). SMART TECHNOLOGY •Incorporated positive stops and adjustable electric limit switches. •Separate programming of the two motors. •Control unit with self-learning and selfdiagnostic functions. •Quick delayed motor reversing. •Control unit compatible with the EELink protocol. SAFE USE •Specially designed for simpler and faster installation in compliance with latest safety standards. •Thanks to the obstruction sensing device, the operator reverses motion and prevents damage to people and vehicles in the event of contact. SIMPLER INSTALLATION •Incorporated control unit positioned frontally for easier accessibility. •Control unit programming by LCD display. •Boltable and weldable post brackets. |
Electromechanical Operator For Swing Gates SMART TECHNOLOGY •The large anti-shearing arms allow installation on columns with angles up to 125°. SAFE USE •Quick and easy manual release. •Adjustable limit switches. •Maximum recommended offset 12” (could go to 18”). • 24V DC and 120V AC electromechanical operators for residential use for gate up to 550Lbs and 10Ft. • Incorporated electrical limit switches. • Torque limiter from the Rigel 5 control panel. • Adjustable slow-down on opening and closing. • Opening up to 125 Degrees in 15 seconds. JOINT: Provides an in dispersible automation system for swing gates installed on particularly large pillars. The drive arm with its special anti- shearing shape allows the leaves to be moved when the controller is positioned well away from their fulcrum. The irreversible electromechanical reduction gear keeps the gate locked in the closing and opening positions. The emergency release mechanism is carried out by operating the release lever of each controller, located inside the hatch which is provided with a personalized key. Joint must be combined with a control unit with a torque limiter such as the Aries model control unit. The adjustable limit micro switches and capacitor are connected to the motor. GENERAL OUTLINE This controller is suitable for residential use and has been designed for swing gates with particularly large gate posts. The drive arm, built with a special anti-shearing shape, allows the leaves to be moved when the controller is considerably out of place with respect to the fulcrum of the leaves. The non-reversible electro-mechanical gearmotor maintains the stop during closing and opening. The release lever, fitted in each controller and situated inside the door fitted with personalised key, allows the manual manoeuvre to be easily carried out |

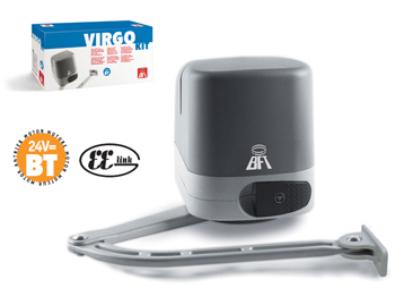

A MODEL FOR EVERY NEED •Great versatility thanks to the levers that permit installation on columns for opening up to 120°. Maximum offset 8” (20 cm). SMART TECHNOLOGY •Incorporated positive stops and adjustable electric limit switches. •Separate programming of the two motors. •Control unit with self-learning and selfdiagnostic functions. •Quick delayed motor reversing. •Control unit compatible with the EELink protocol. For swing gates up to 440 lb (200 kg) and 6'6" (2 m) |
