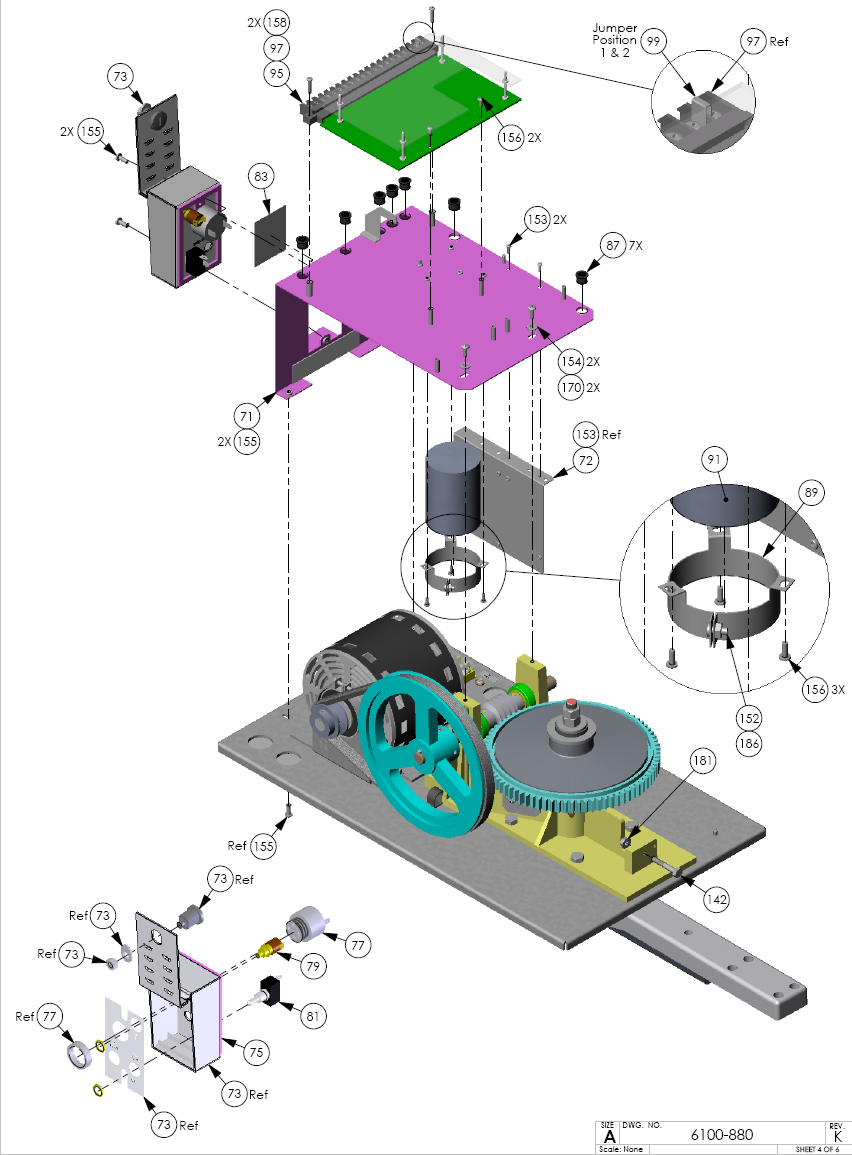

| DoorKing 6100 Gate Operator - Scroll Down to View Exploded Parts View or Illustrated Parts Breakdown For Swing Gate Operator 6100 Click Here for Replacement Parts Quote Form on all Inquiries |
| Click on Image to Enlarge, after new window opens click on image again to enlarge more or you can download PDF File Doorking Parts 6100 |
Welcome to: GATESNFENCES.COM
| Item Part Number Description For 6100 Gate Operator 1 6100-880 IPB-1/2HP, Primary K 3 2600-643 Baseplate 605/610 No Batt Back 5 2600-129 Motor Assembly 1/2 HP 9 1215-018 Wire Nut #71B 11 2600-568 Pulley 8" Cast Iron AC80X5/8 13 1601-019 Keyway 3/16 x 3/16 x 1 15 2600-089 Belt 30" 19 2600-410 Marker Strip Silkscn Both Side 21 2600-414 Terminal Block-2 Position 23 3129-002 Terminal Block Cover 2 Position 25 4001-093 MOV Assembly 130VAC 27 2599-014 Decal Copper Wire Only 29 2600-439 Washer Cup - Brass 31 2599-006 Decal SUPPLY GND 37 2600-619 Wire Clp-5/8 Concord 770-1209 39 6100-040 Housing Assembly 6100 41 2600-613 Bracket Magnetic Ctr Potted 43 3004-010 Magnetic Counter Threaded 45 3004-051 Nut Panel 1/4-18 47 2600-061 Collar 2 OD x 1 1/4 ID x 5/8 L 49 2600-779 Swing Crank Arm Extended 57 2600-675 Shaft Assembly 605/610 59 2630-010 Snap Ring 1.25" 61 2600-360 Counter Wheel Mag Assembly 63 2600-680 Clutch Plate 7" 65 2801-002 Clutch Pad 7" OD605/610,6100 67 2600-323 Worm Gear 80 Tooth Delrin 71 2600-668 Bracket 605/610 PCB Support 72 2600-638 Bracket Radio 610 Battery Bkup 73 2600-533 Switch Cover Doorking Lockable 75 2600-731 Gasket Switch Cover 77 1506-071 Tone Generator Loud 79 1812-005 Switch Push Button N.O. 81 1601-041 Switch Toggle SPST 2POS 83 2599-008 Label Patent 87 2600-820 Bushing 1/2 89 2600-875 Capacitor Mounting Clamp 91 2600-102 Capacitor 50uf 370VAC 95 4502-010 PCB Gate Operator 97 4001-020 Terminal 20 Pin |
| Item Part Number Description For 6100 Gate Operator 99 2600-830 Jumper- Ring Tongue 111 2600-721 Cover-Model 6050/6100 113 2600-732 Nameplate Plastic DKS 115 2802-040 Washer Push on Clamp 117 1702-507 Cam "J" Hook 119 4001-035 Lock N16058BDxSFx2K Key 16120 121 2600-720 Crank Arm Joint Assembly Blk 123 2600-630 Joint Cover Swinger Left 125 2600-631 Joint Cover Swinger Right 127 2600-711 Bracket 3/16 x 2 x 12 131 2599-034 Label Gate Operator 133 2599-199 Label Universal 140 2615-052 Bolt Hex Head 3/8-16 x 1 141 2615-055 Bolt Hex Head 3/8-16 x 1 1/2 142 2615-008 Bolt Hex Head 1/4-20 x 1 1/2 150 2616-019 Screw Phillips Head 8-32 x 3/4 151 2616-016 Screw Phillips Head 8-32 x 1/4 152 2616-017 Screw Phillips Head 8-32 x 3/8 153 2904-002 Screw Round Head 4-40 x 3/8 154 2616-051 Screw Phillips 10-32 x 3/8 155 2616-052 Screw Phillips Head 10-32 x1/2 156 2616-001 Screw Phillips Head 6-32 x 3/8 158 2616-003 Screw Phillips Head 6-32 x 3/4 160 2620-220 Washer 1.25 x 2 x .0625 161 2620-131 Washer 1 7/8 OD x 1/2 ID 1/8 T 162 2802-003 Washer #8 SAE 163 2600-183 Washer Bellville 1.5" OD x .5" ID 164 2620-021 Washer 1/2 SAE 166 2620-019 Washer 3/8 SAE 170 2620-010 Washer #10 SAE 180 2902-007 Nut Keps 5/16-18 181 2620-409 Nut Hex Flange Lock 1/4-20 182 2620-320 Nut Center Lock 1/2-13 183 2620-420 Nut Hex 1/2-13 185 2620-405 Nut Hex 3/8-16 186 2620-401 Nut Hex 8-32 200 1804-031 Tie Wrap 4" 201 2600-698 Wire Set Model 6050,6100,6300 205 7082-137 Wire 5" Green Stranded 14AWG 209 2599-100 Sign Warning 210 6100-065 Manual Installation |
