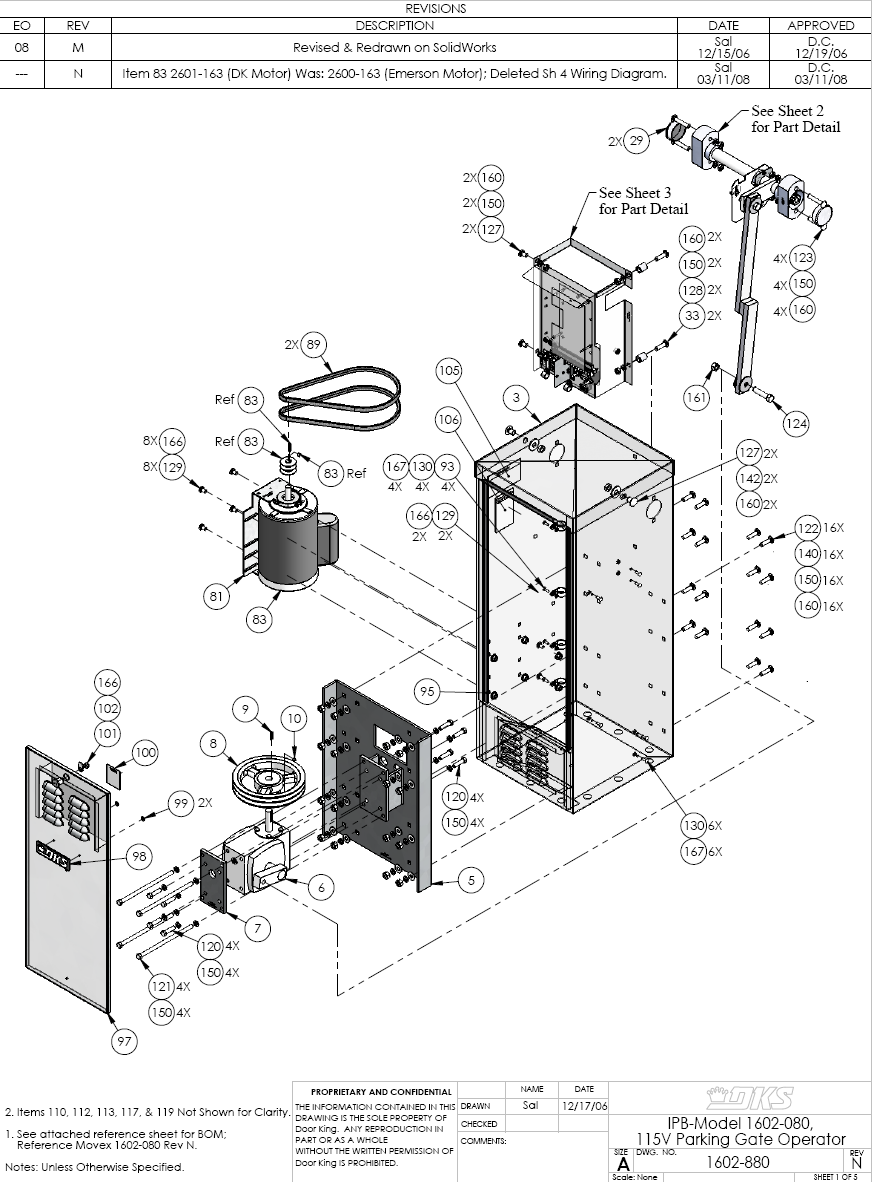

Doorking Barrier Opener 1602 - Scroll Down to View Exploded Parts View or Illustrated  Parts Breakdown For Arm Barrier
Opener 1602  -- Click on Image to Enlarge, after new window opens click on image again to enlarge more or you can
download PDF File
Doorking Parts 1602
Welcome to: GATESNFENCES.COM
Item     Part Number  Description for Arm Barrier Opener 1602
1          1602-880        IBP-Model 1602-080, 1HP 115V Parking
Gate                                               Operator N
3          1602-100        Housing
5          1602-015        Mount Plate Gear Box 1602
6          1602-123        Gearbox 1602
7          1602-115        Mount Plate 1602 Top Plate
8          1602-048        Pulley Dual 8"OD 3/4"ID
9          1601-019        Keyway 3/16 x 3/16 x 1
10        2616-094        Set Screw 5/16-18 x 1/4 Zinc Pt
15        1601-222        Shaft Assembly 1601 Splined
16        2600-061        Collar 2"OD x 1 1/4"ID x 5/8"L
17        2616-096        Set Screw 3/8-16 x 3/8
18        1601-032        Bearing 1 1/2OD x 1 1/4ID x 5/8L
19        1601-016        Mount Plate Magnet
20        1601-044        Holder - Magnet
21        2600-817        Magnet
22        1601-017        Collar "Sandwich" Plate
23        2620-131        Washer 1 7/8"OD x 1/2"ID 1/8 T
24        1601-185        Washer Race .515"ID x.875"OD CH
25        1601-060        Bearing-Sealed 1/2ID x 1 1/8OD
26        1602-029        Connecting Rod 1602
27        1601-139        Bearing Blk Die Cast 1601
29        2600-882        Hole Plug Plastic 2.25" Hole
33        2600-198        Spacer 3/4 OD x 1/2 ID x 15/16 L
35        1601-150        Mount Plate - PC Board Bottom
36        1601-152        Mount Plate - PC Board Top
37        2600-410        Marker Strip Silkscn Both Side
39        2600-414        Terminal Block-2 Position
41        3129-002        Terminal Block Cover 2 Position
43        1200-028        A Outlet Snap-In Leviton 1306
45        2599-014        Decal Copper Wire Only
47        1601-040        Switch Toggle ON-OFF-ON MOMEN
51        1601-140        Switch Toggle 2 Pole On-Off
53        2599-012        Decal 1601 Switch
57        1601-007        Terminal 14 Pin
59        1601-010        PCB Parking Gate
61        1601-055        Divider - High/Low Voltage
63        2600-619        Wire Clp-5/8" Concord 770-1209
65        2600-820        Bushing 1/2
67        2600-439        Washer Cup - Brass
Item     Part Number  Description for Arm Barrier Opener 1602
69          2599-006        Decal SUPPLY GND
81          2600-837        Motor Base 1 HP
83          2601-163        Motor Assembly 1HP Dual Pulley (DK Motor)
89          1602-071        Belt - 31" AX31
93          2600-639        Wire Clamp-1"
95          4001-018        Weather Stripping (50' rolls)
97          1602-075        Door
98          2600-732        Nameplate Plastic DKS
99          2802-040        Washer Push on Clamp
100        2599-008        Label Patent
101        4001-035        Lock N16058BD x SF x 2K Key 16120
102        1702-503        Cam 1.1/4
105        2599-035        Label 1601 Warning
106        2599-199        Label Universal
110        1601-008        Wire Set 1601/1602
112        1804-031        Tie Wrap 4"
113        2600-749        Wire Connector STA-KON RC6
117        1602-003        Plate Counter Weight 1602
119        1602-041        Accessory Box 1602 Operator
120        2615-055        Bolt Hex Head 3/8-16 x 1 1/2
121        2615-058        Bolt Hex Head 3/8-16 x 8"
122        2615-669        Bolt Carriage SS 3/8-16 x 1 1/4
123        2615-673        Bolt Carriage SS 3/8-16 x 2 1/4Painted
124        2615-184        Bolt Hex Head 1/2-13 x 2 1/4 GR8
127        2615-667        Bolt Carriage SS 3/8-16 x 3/4 Painted
128        2615-671        Bolt Carriage SS 3/8-16 x 1 1/2
129        2615-662        Bolt Carriage SS 5/16-18 x 5/8 Painted
130        2615-645        Bolt Carriage SS 10-32 x 5/8 Painted
135        2616-006        Screw Phillips Head 6-32 x 3/16
136        2616-003        Screw Phillips Head 6-32 x 3/4
137        2616-002        Screw Phillips Head 6-32 x 1/2
140        2620-021        Washer 1/2 " SAE
141        2802-003        Washer #8 SAE
142        2620-029        Washer 3/8" USS
150        2620-047        Lockwasher 3/8"
160        2620-405        Nut Hex 3/8-16
161        2620-440        Nut Hex 1/2-13 GR8
162        2620-401        Nut Hex 8-32
163        2902-004        Nut Nylon Lock 8-32
166        2620-411        Nut Hex Flange Lock 5/16-18
167        2902-006        Nut Nylon Lock 10-32
Doorking Replacement Parts for your Doorking Operator - We Offer Doorking
Factory Direct replacement parts and New Products for DKS Systems, Gate
Opener, Keypad Parts, Proximity and Multi-Tenant Access Control panels
About Us  |   Contact Us   |   Our Policies   |   FAQ   |   Manufactures   |   Links   |
Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp.  All rights reserved. No part of this site can be reproduced in any form
or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp.
3708 NW 82nd Street  Miami  Florida  33147, Office: 305-696-0419  Fax: 305-696-0461 E-Mail:
LAOrnamental@Aol.com

Item Description Part Number Price
1 IBP-Model 1602-080, 1HP 115V Parking Gate Operator 1602-880
3 Housing 1602-100 Add To Cart For Special Pricing - To Low To Advertise
5 Mount Plate Gear Box 1602 1602-015 Add To Cart For Special Pricing - To Low To Advertise
6 Gearbox 1602 1602-123 Add To Cart For Special Pricing - To Low To Advertise
7 Mount Plate 1602 Top Plate 1602-115 Add To Cart For Special Pricing - To Low To Advertise
8 Pulley Dual 8"OD 3/4"ID 1602-048 Add To Cart For Special Pricing - To Low To Advertise
9 Keyway 3/16 x 3/16 x 1 1601-019 Add To Cart For Special Pricing - To Low To Advertise
10 Set Screw 5/16-18 x 1/4 Zinc Pt 2616-094 Add To Cart For Special Pricing - To Low To Advertise
15 Shaft Assembly 1601 Splined 1601-222 Add To Cart For Special Pricing - To Low To Advertise
16 Collar 2"OD x 1 1/4"ID x 5/8"L 2600-061 Add To Cart For Special Pricing - To Low To Advertise
17 Set Screw 3/8-16 x 3/8 2616-096 Add To Cart For Special Pricing - To Low To Advertise
18 Bearing 1 1/2OD x 1 1/4ID x 5/8L 1601-032 Add To Cart For Special Pricing - To Low To Advertise
19 Mount Plate Magnet 1601-016 Add To Cart For Special Pricing - To Low To Advertise
20 Holder - Magnet 1601-044 Add To Cart For Special Pricing - To Low To Advertise
21 Magnet 2600-817 Add To Cart For Special Pricing - To Low To Advertise
22 Collar "Sandwich" Plate 1601-017 Add To Cart For Special Pricing - To Low To Advertise
23 Washer 1 7/8"OD x 1/2"ID 1/8 T 2620-131 Add To Cart For Special Pricing - To Low To Advertise
24 Washer Race .515"ID x.875"OD CH 1601-185 Add To Cart For Special Pricing - To Low To Advertise
25 Bearing-Sealed 1/2ID x 1 1/8OD 1601-060 Add To Cart For Special Pricing - To Low To Advertise
26 Connecting Rod 1602 1602-029    Add To Cart For Special Pricing - To Low To Advertise
27 Bearing Blk Die Cast 1601 1601-139 Add To Cart For Special Pricing - To Low To Advertise
29 Hole Plug Plastic 2.25" Hole 2600-882 Add To Cart For Special Pricing - To Low To Advertise
33 Spacer 3/4 OD x 1/2 ID x 15/16 L 2600-198 Add To Cart For Special Pricing - To Low To Advertise
35 Mount Plate - PC Board Bottom 1601-150 Add To Cart For Special Pricing - To Low To Advertise
36 Mount Plate - PC Board Top 1601-152 Add To Cart For Special Pricing - To Low To Advertise
37 Marker Strip Silkscn Both Side 2600-410 Add To Cart For Special Pricing - To Low To Advertise
39 Terminal Block-2 Position 2600-414    Add To Cart For Special Pricing - To Low To Advertise
41 Terminal Block Cover 2 Position 3129-002 Add To Cart For Special Pricing - To Low To Advertise
43 Outlet Snap-In Leviton 1306 1200-028 Add To Cart For Special Pricing - To Low To Advertise
45 Decal Copper Wire Only 2599-014 Add To Cart For Special Pricing - To Low To Advertise
47 Switch Toggle ON-OFF-ON MOMEN 1601-040 Add To Cart For Special Pricing - To Low To Advertise
51 Switch Toggle 2 Pole On-Off 1601-140 Add To Cart For Special Pricing - To Low To Advertise
53 Decal 1601 Switch 2599-012 Add To Cart For Special Pricing - To Low To Advertise
57 Terminal 14 Pin 1601-007 Add To Cart For Special Pricing - To Low To Advertise
59 PCB Parking Gate 1601-010 Add To Cart For Special Pricing - To Low To Advertise
61 Divider - High/Low Voltage 1601-055 Add To Cart For Special Pricing - To Low To Advertise
63 Wire Clp-5/8" Concord 770-1209 2600-619 Add To Cart For Special Pricing - To Low To Advertise
65 Bushing 1/2 2600-820 Add To Cart For Special Pricing - To Low To Advertise
67 Washer Cup - Brass 2600-439 Add To Cart For Special Pricing - To Low To Advertise
69 Decal SUPPLY GND 2599-006 Add To Cart For Special Pricing - To Low To Advertise
81 Motor Base 1 HP 2600-837 Add To Cart For Special Pricing - To Low To Advertise
83 Motor Assembly 1HP Dual Pulley (DK Motor) 2601-163 Add To Cart For Special Pricing - To Low To Advertise
89 Belt - 31" AX31 1602-071 Add To Cart For Special Pricing - To Low To Advertise
93 Wire Clamp-1" 2600-639 Add To Cart For Special Pricing - To Low To Advertise
95 Weather Stripping (50' rolls) 4001-018 Add To Cart For Special Pricing - To Low To Advertise
97 Door 1602-075 Add To Cart For Special Pricing - To Low To Advertise
98 Nameplate Plastic DKS 2600-732 Add To Cart For Special Pricing - To Low To Advertise
99 Washer Push on Clamp 2802-040 Add To Cart For Special Pricing - To Low To Advertise
100 Label Patent 2599-008 Add To Cart For Special Pricing - To Low To Advertise
101 Lock N16058BD x SF x 2K Key 16120 4001-035 Add To Cart For Special Pricing - To Low To Advertise
102 Cam 1.1/4 1702-503 Add To Cart For Special Pricing - To Low To Advertise
105 Label 1601 Warning 2599-035 Add To Cart For Special Pricing - To Low To Advertise
106 Label Universal 2599-199 Add To Cart For Special Pricing - To Low To Advertise
110 Wire Set 1601/1602 1601-008 Add To Cart For Special Pricing - To Low To Advertise
112 Tie Wrap 4" 1804-031 Add To Cart For Special Pricing - To Low To Advertise
113 Wire Connector STA-KON RC6 2600-749 Add To Cart For Special Pricing - To Low To Advertise
117 Plate Counter Weight 1602 1602-003 Add To Cart For Special Pricing - To Low To Advertise
119 Accessory Box 1602 Operator 1602-041 Add To Cart For Special Pricing - To Low To Advertise
120 Bolt Hex Head 3/8-16 x 1 1/2 2615-055 Add To Cart For Special Pricing - To Low To Advertise
121 Bolt Hex Head 3/8-16 x 8" 2615-058 Add To Cart For Special Pricing - To Low To Advertise
122 Bolt Carriage SS 3/8-16 x 1 1/4 2615-669 Add To Cart For Special Pricing - To Low To Advertise
123 Bolt Carriage SS 3/8-16 x 2 1/4Painted 2615-673 Add To Cart For Special Pricing - To Low To Advertise
124 Bolt Hex Head 1/2-13 x 2 1/4 GR8 2615-184 Add To Cart For Special Pricing - To Low To Advertise
127 Bolt Carriage SS 3/8-16 x 3/4 Painted 2615-667 Add To Cart For Special Pricing - To Low To Advertise
128 Bolt Carriage SS 3/8-16 x 1 1/2 2615-671 Add To Cart For Special Pricing - To Low To Advertise
129 Bolt Carriage SS 5/16-18 x 5/8 Painted 2615-662         Add To Cart For Special Pricing - To Low To Advertise
130 Bolt Carriage SS 10-32 x 5/8 Painted 2615-645 Add To Cart For Special Pricing - To Low To Advertise
135 Screw Phillip Head 6-32 x 3/16 2616-006 Add To Cart For Special Pricing - To Low To Advertise
136 Screw Phillips Head 6-32 x 3/4 2616-003 Add To Cart For Special Pricing - To Low To Advertise
137 Screw Phillips Head 6-32 x 1/2 2616-002 Add To Cart For Special Pricing - To Low To Advertise
140 Washer 1/2 " SAE 2620-021 Add To Cart For Special Pricing - To Low To Advertise
141 Washer #8 SAE 2802-003 Add To Cart For Special Pricing - To Low To Advertise
142 Washer 3/8" USS 2620-029 Add To Cart For Special Pricing - To Low To Advertise
150 Lockwasher 3/8" 2620-047 Add To Cart For Special Pricing - To Low To Advertise
160 Nut Hex 3/8-16 2620-405 Add To Cart For Special Pricing - To Low To Advertise
161 Nut Hex 1/2-13 GR8 2620-440 Add To Cart For Special Pricing - To Low To Advertise
162 Nut Hex 8-32 2620-401 Add To Cart For Special Pricing - To Low To Advertise
163 Nut Nylon Lock 8-32 2902-004 Add To Cart For Special Pricing - To Low To Advertise
166 Nut Hex Flange Lock 5/16-18 2620-411 Add To Cart For Special Pricing - To Low To Advertise
167 Nut Nylon 10-32 2902-006 Add To Cart For Special Pricing - To Low To Advertise
