| FAAC Gate Operators 422 - Scroll Down to View Exploded Parts View & Parts list for 422 Cylinder |
| FAAC Replacement Parts for your FAAC Operators - We Offer FAAC Factory Direct replacement parts and New Products for FAAC Systems |
|
| About Us | Contact Us | Our Policies | FAQ | Manufactures | Links | Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp. 3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com |

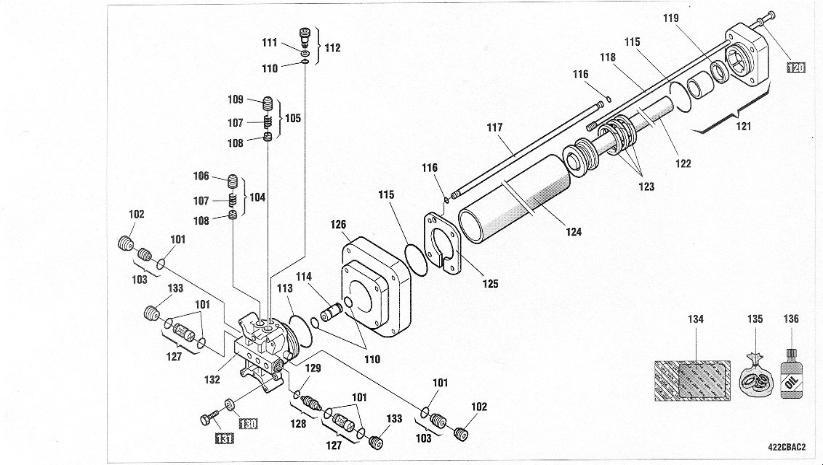

| POS. P/N DESCRIPTION 101 7090050015 O-Ring 102 7049135 Valve Retainer 103 4404065 Inlet Valve 104 4180035 Red By-Pass Cap Assembly 105 4180045 Green By-Pass Cap Assembly 106 7119015 By-Pass Cap (Red) 107 7210025 By-Pass Spring 108 7310315 By-Pass Cap 109 7119115 By-Pass Cap (Green) 110 7090280015 O-Ring Retract Tube (Short) 111 7043055 Extrusion Ring 112 4180195 Manual Release 113 7090360 O-Ring (Valve Body) 114 7361035 Retract Tube (Short) 115 7090350 O-Ring (Mid Flange) 116 7090665 O-Ring Retract Tube (Long) 117 7361315 Retract Tube (Long) 118 7230225 Tie-Rod (Cylinder) |
| POS. P/N DESCRIPTION 119 N/A O-Ring Front Flange (Internal) 120 N/A Star Washer 121 4994165 Front Flange 122 4350085 Piston Assembly 123 7095035 Piston Rod Packing 124 7366065 Cylinder 125 7271555 Protective Cover Guide 126 499449 Mid Flange 127 4404085 Lock Valve 128 4180285 Shuttle Piston 129 7090300 O-Ring (Shuttle Piston) 130 N/A Galvanized Washer 131 N/A Galvanized Screw 132 4994345 Valve Body (CBAC) 133 7049005 Valve Retainer (Brass) 134 3905255 Skin Pack 135 2172* Seal Kit 136 6105 1 Qt Monolec Oil |
| Item | Description | Part Number | Price |
| 1 | Galvanized Nut (8mm) | 2036 | |
| 2 | Rear Bracket | 7220015 | Our Price: $33.00  |
| 3 | Rear Bracket Plate | 7284005 | Our Price: $17.00 |
| 4 | Short Pin | 7182075 | Our Price: $12.00 |
| 5 | Rear Fork | 7228015 | Our Price: $35.00 |
| 6 | Self-Locking Nut (8 mm) | 2037 | |
| 7 | Rear Flange | 7170685 | Our Price: $48.00 |
| 8 | Gasket (D80) | 70991015 | Our Price: $4.00 |
| 9 | O-Ring Locking Cap (Small) | 7090440015 | Our Price: $2.00 |
| 10 | O-Ring Locking Cap (Center) | 7090655 | Our Price: $3.00 |
| 11 | Locking Cap | 41850215 | Our Price: $46.50 |
| 12 | Gasket (Copper) | 7094065 | Our Price: $2.00 |
| 13 | Vent Screw (4x6 mm) | 2274 | |
| 14 | Locking Cap Cover | 7270805 | Our Price: $18.00 |
| 15 | Access Slide (Locking Cap) | 7270815 | Our Price: $7.00 |
| 16 | Viro Key (Manual Release) | 7131005 | Our Price: $4.00 |
| 17 | Self Threading Screw (4mm) | N/A | |
| 18 | Vibration Dampener | 7119475 | Our Price: $3.00 |
| 19 | Motor Bolt (4x50 mm) | 2365 | |
| 20 | Lock Washer | 2366 | |
| 21 | Hex Nut (4 mm) | 2367 | |
| 22** | 115V 1400 RPM Motor | 77000425 | Our Price: $131.25 |
| 23 | Vibration Dampener | 7119485 | Our Price: $3.00 |
| 24 | Operator Body | 309005 | Our Price: $57.00 |
| 25 | Vent Screw Label | N/A | |
| 26 | Long Pin | 7182175 | Our Price: $13.00 |
| 27 | Vent Screw (4x6 mm) | 2274 | |
| 28 | Socket Head Screw (5x20 mm) | N/A | |
| 29 | Electric Power Cord | 751405 | |
| 30* | Fiber Washer | 2581 | |
| 31* | Strain Relief Brass Washer | 7039305 | Our Price: $3.00 |
| 32* | Strain Relief Nut | 7109235 | |
| 33* | Strain Relief | 7109235 | Our Price: $18.00 |
| 34 | 1 Lt. Lobe Pump | 3204425 | Our Price: $124.50 |
| 35 | Pump Pin | N/A | |
| 36 | Spacers (Protective Cover) | N/A | |
| 37 | Swivel Joint | 4900605 | Our Price: $44.00 |
| 38 | Protective Cover End Cap | 7271545 | Our Price: $4.00 |
| 39 | Protective Cover Plug | 7114025 | Our Price: $2.00 |
| 40 | Protective Cover | 7272125 | Our Price: $49.50 |
| 41 | Front Mounting Bracket | 7220515 | Our Price: $17.00 |
| 42 | Swivel Joint Kit | 4900605 | |
| 43 | Self Threading Screw | N/A | |
| 44 | O-Ring | 7090010015 | Our Price: $2.00 |
| 101 | O-Ring | 7090010015 | Our Price: $2.00 |
| 102 | Valve Retainer | 7049005 | Our Price: $4.00 |
| 103 | Inlet Valve | 4404065 | Our Price: $5.00 |
| 104 | Red By-Pass Cap Assembly | 4180035 | |
| 105 | Green By-Pass Cap Assembly | 4180045 | |
| 106 | By-Pass Cap (Red) | 4180035 | Our Price: $4.00 |
| 109 | By-Pass Cap (Green) | 4180045 | Our Price: $4.00 |
| 110 | O-Ring Retract Tube (Short) | 7090280015 | Our Price: $2.00 |
| 112 | Manual Release | 4180195 | Our Price: $16.00 |
| 113 | O-Ring (Valve Body) | 7090360025 | Our Price: $3.00 |
| 115 | O-Ring (Mid-Flange) | 7090350025 | Our Price: $3.00 |
| 116 | O-Ring Retract Tube (Long) | 7090665 | Our Price: $3.00 |
| 117 | Retract Tube (Long) | 7361315 | Our Price: $30.00 |
| 118 | Tie-Rod ( Cylinder) | 7230225 | Our Price: $5.00 |
| 119 | O-Ring Front Flange (Internal) | N/A | |
| 120 | Star Washer | N/A | |
| 121 | Front Flange | 4994165 | Our Price: $47.25 |
| 122 | Piston Assembly | 4350085 | Our Price: $66.75 |
| 123 | Piston Rod Packing | 7095035 | Our Price: $17.00 |
| 124 | Cylinder | 7366065 | Our Price: $51.75 |
| 125 | Protective Cover Guide | 7271555 | Our Price: $3.00 |
| 126 | Mid Flange | 499449 | Our Price: $48.00 |
| 127 | Lock Valve | 4404085 | Our Price: $8.00 |
| 128 | Shuttle Piston ‘97 | 4180285 | Our Price: $16.00 |
| 130 | Galvanized Washer | N/A | |
| 131 | Galvanized Screw | N/A | |
| 132 | Valve Body (CBAC) | 4994345 | Our Price: $157.32 |
| 133 | Valve Retainer | 7049005 | Our Price: $4.00 |
| 134 | Skin Pack - Single | 3905325 | Our Price: $90.00 |
| 135 | Seal Kit | 2172* | Our Price: $81.75 |
* 7109235 Included In Kit
** 77000415 220V Motor - 16 uf capacitor
** 7700205 220V Motor - 8 uf capacitor
New Locking Cap

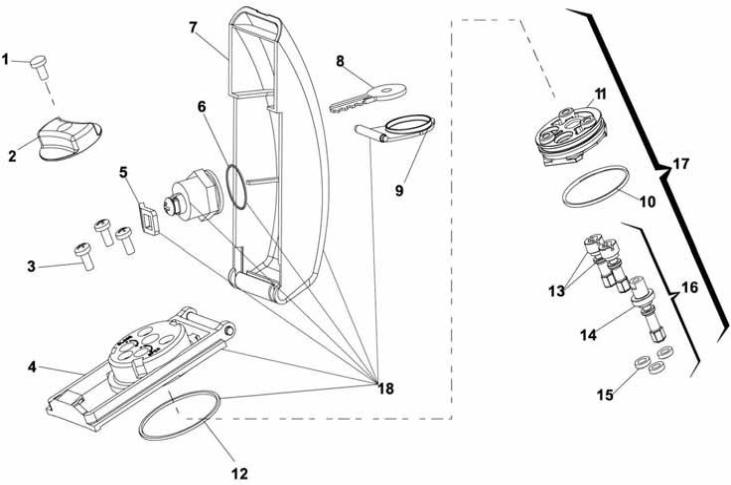

| Item | Description | Part Number | Price |
| 1 | 1Knob Screw (SS) 4mm x 8mm | 2151 | |
| 2 | Manual Release Knob | 7290445 | Our Price: $9.00 |
| 3 | Screw (SS) 4mm x 10mm | N/A | |
| 4 | Locking Cap Base | N/A | |
| 5 | Lock | N/A | |
| 6 | O-Ring (Lock Cylinder) | 7090290015 | Our Price: $2.00 |
| 7 | Top | N/A | |
| 8 | Key (Viro) | 7131005 | |
| 9 | Cover, Key | 7275275 | Our Price: $3.00 |
| 10 | O-Ring (Base to Body) | 7090855 | Our Price: $2.00 |
| 11 | Extension Receptacle | N/A | |
| 12 | O-Ring Extension Receptacle | 7090865 | Our Price: $2.00 |
| 13 | By-Pass Extensions | N/A | |
| 14 | Manual Release Extension | N/A | |
| 15 | O-Ring, Extensions | 7090845 | Our Price: $3.00 |
| 16 | Extensions with O-Rings | 490327 | Our Price: $27.00 |
| 17 | Manual Release Kit | 490326 | Our Price: $33.00 |
| 18 | Locking Cap Complete | 4185045 | Our Price: $41.00 |
| 19 | Locking Cap with Manual Release System | 490325 | Our Price: $45.75 |
| 24 | Operator Body (New) | 7161815 | Our Price: $46.50 |
