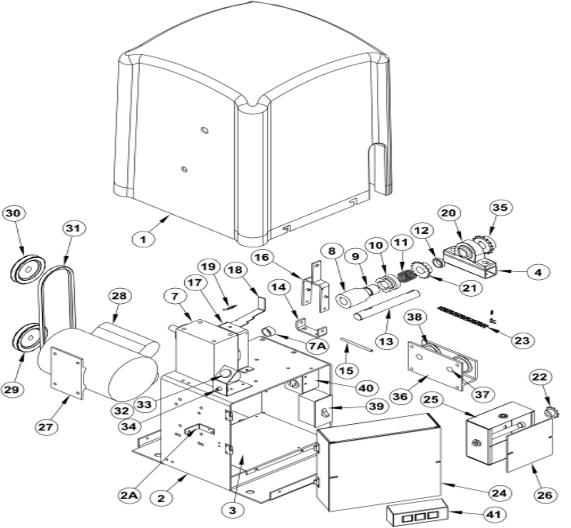

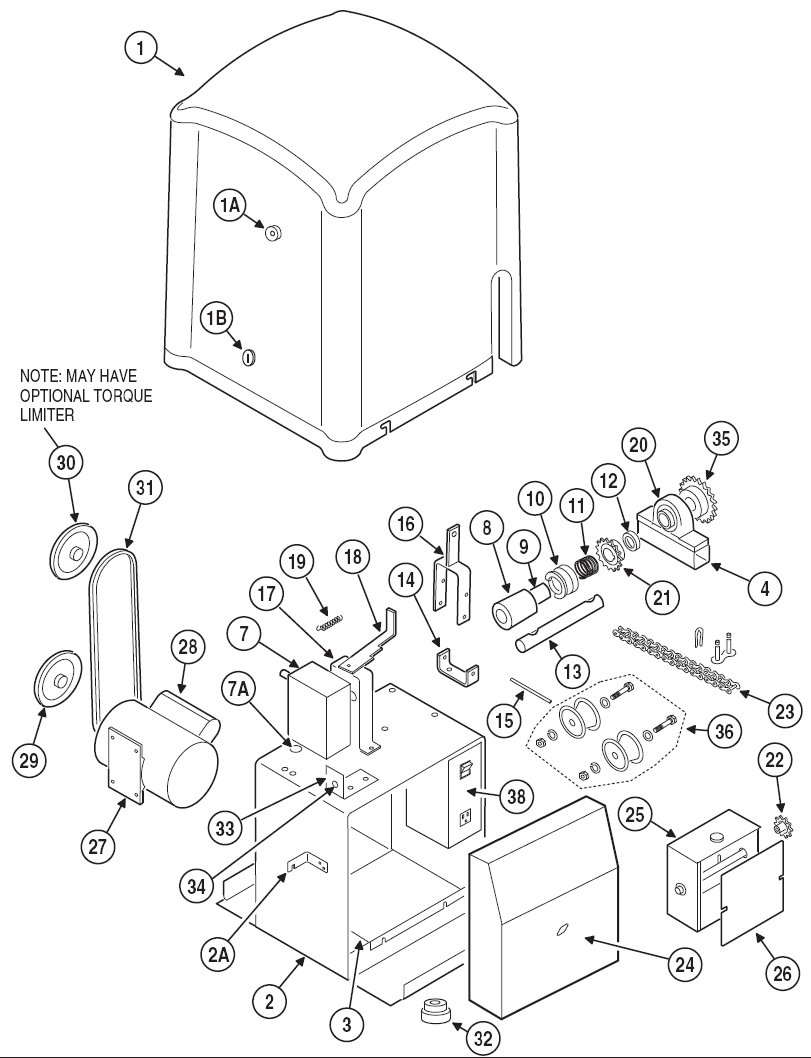

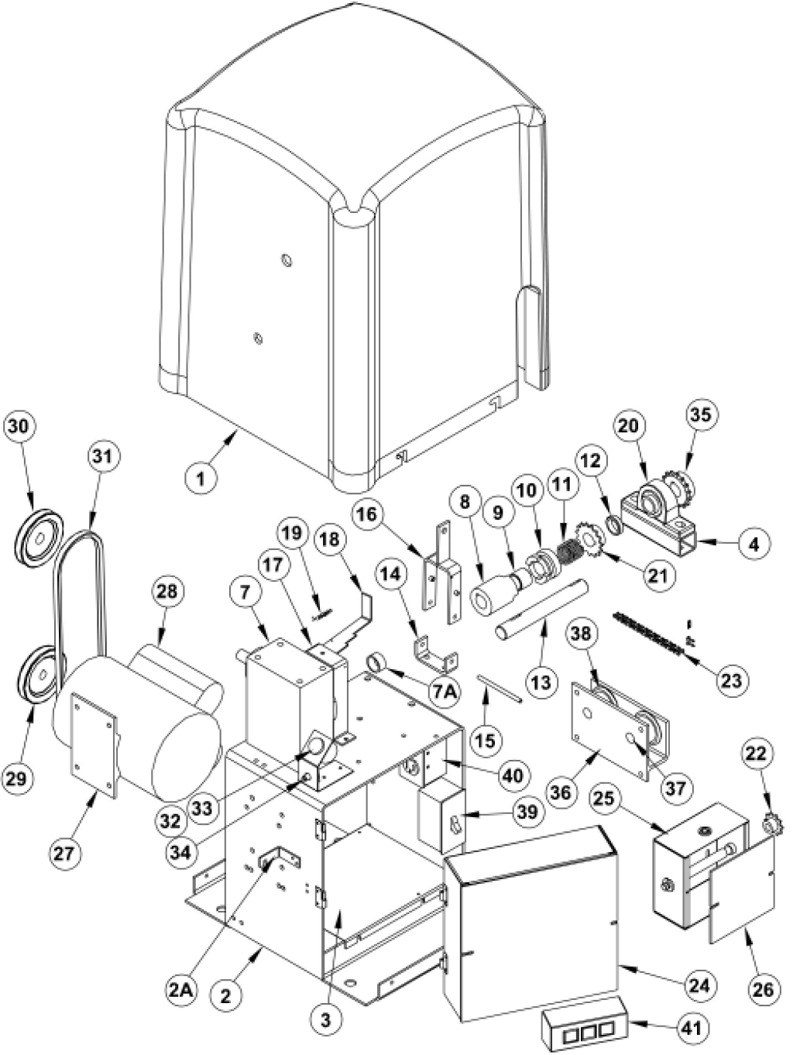

| OSCO Gate Openers SLC - Scroll Down to View Exploded Parts View & Parts List |
| OSCO Replacement Parts for your OSCO Openers - We Offer OSCO Factory Direct replacement parts and New Products for OSCO Systems, Gate Openers, Keypad Parts, Proximity and Multi-Tenant Access Control panels |
| Item Parts # Description for OSCO SLC Gate Operators 1 2300-907 Operator Cover 1A 2510-354 Plunger Reset Assembly 2500-2240 Plunger Reset Button 2500-2241 Plunger Extension Only 1B 2200-790 Lock for Cover, with Keys 2200-824 Extra Keys 2 2110-796 Main Frame Assembly 2A 2100-2006 Lock Tab Bracket 3 2100-2055 Bottom Shelf 4 2100-1985 Pillow Block Tube Spacer 7 2200-954 Gear Reducer, 20:1 7A 2100-2062 Reducer Spacer 8 2110-777 Reducer Coupler, with Oilite Bushing 10 2100-2026 Disconnect Collar 11 2200-115 Disconnect Collar Spring 12 2200-014 Shaft Collar, 1” diameter, 3/8” LTB 13 2100-1983 Drive Shaft, 1” diameter 13A 2100-529 1” Woodruff Key 14 2100-1986 Disconnect Handle Fulcrum Bracket 15 2100-549 Pin for Disconnect Handle 2400-169 Push-on Nut, 1/4” (not shown) 16 2120-477 Disconnect Handle 17 2100-2060 Disconnect Fulcrum Bracket 18 2100-2059 Disconnect Lever 19 2200-939 Locking Handle Spring 20 2200-274 Pillow Block Bearing, 1” diameter 21 2200-042 Sprocket, 48-B-15, 1” bore 22 2200-041 Sprocket, 48-B-15, 1/2” bore (For drives less than 34 feet wide) 2200-276 Sprocket, 48-B-20, 1/2” bore (For drives 34 to 47 feet wide) 23 2200-554 #48 Roller Chain, 14 Links (Use with 2200-008 Sprocket) 2200-966 #48 Roller Chain, 15 Links (Use with 2200-041 Sprocket) 2200-855 #48 Roller Chain, 16 Links (Use with 2200-276 Sprocket) 2200-010 #48 Master Link 24 2500-2393 APeX Module 2100-2104 APeX Mounting Plate 2300-1025 Plastic Cover 2510-423 Knob Kit 25 2520-396-SLC Limit Box Assembly with Cover 2100-057 Limit Shaft 2200-029 Oilite Bushing 2200-030 Limit Nut 2200-193 1/2” E-ring 2300-946 Heyco Bushing with Wire Guards 2500-440 Limit Switch 2100-261 Detent Plate 2200-028 Detent Spring 26 2300-945 Limit Box Cover 27 2500-2307 1/2 HP, 115 VAC, 1 Phase 2500-2308 1/2 HP, 208/230 VAC, 1 Phase 2500-2309 3/4 HP, 115 VAC, 1 Phase 2500-2310 3/4 HP, 208/230 VAC, 1 Phase 2500-2311 1 HP, 115 VAC, 1 Phase 2500-2312 1 HP, 208/230 VAC, 1 Phase |
|
| About Us | Contact Us | Our Policies | FAQ | Manufactures | Links | Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp. 3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com |
| PARTS FROM ACCESSORY BOX (Not shown in exploded view) 2100-2007 Gate Attachment Bracket 2400-170 U-bolt, 3” 2100-054 #41 Chain Tension Bolt 2200-367 Chain Spring 2200-027 #41 Master Link 2200-150 #41 Chain, per Foot 2400-152 Square Head Bolt, 3/8” OPTIONAL PARTS 2100-2010 Base Plate for Operator 2100-2008 Critter Plate 2650-107 Remote Disconnect Kit 2120-483 Post Mounting Kit 2220-045 2” Torque Limiter Assembly Complete 2300-693 Friction Disc (Pair) 2200-676 4” Pulley for Torque Limiter 2200-877 Bushing for Pulley |
| 28 2500-2336 Capacitor for 2500-2307 Motor 2500-2337 Capacitor for 2500-2308 Motor 2500-1926 Capacitor #1 for 2500-2309 Motor 2500-1930 Capacitor #2 for 2500-2309 Motor 2500-1931 Capacitor for 2500-2310 Motor 2500-2338 Capacitor for 2500-2311 Motor 2500-1932 Capacitor for 2500-2312 Motor 29 2200-118 4” Pulley, 5/8” bore 30 2200-955 4” Pulley, 3/4” bore 31 2200-961 V-belt, 4L 35” 32 2500-2435 Alarm 33 2100-2114 Stop/Reset Button Bracket 34 2500-1495 Stop/Reset Button 35 2200-650 Sprocket, 41-B-24, 1” bore 36 2110-823 Idler Assembly 2300-697 Idler Wheel, UHMW 2400-527 1/2” Shoulder Bolt 2400-528 1/2” Lock Washer 2400-529 1/2” Nut 37 2100-2109 APeX Controller Mounting Bracket (not shown) 38 2510-422 115 VAC Power Box Assembly 2510-430 230 VAC Power Box Assembly 2500-2411 Power Switch 2500-2413 Power Outlet (only available on 115 VAC Models) 2500-212 115 VAC - 24 VAC Power Transformer 2500-791 230 VAC - 24 VAC Power Transformer 2100-2113 Back Plate 2100-2112 Cover Plate 39 2510-424 115 VAC Wiring Harness Assembly (not shown) 2510-428 230 VAC Wiring Harness Assembly (not shown) |
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Parts from Accessory Box (not shown in exploded view) |
|
|
|
|
| Optional Parts |
| 1/2 and 3/4HP only |
