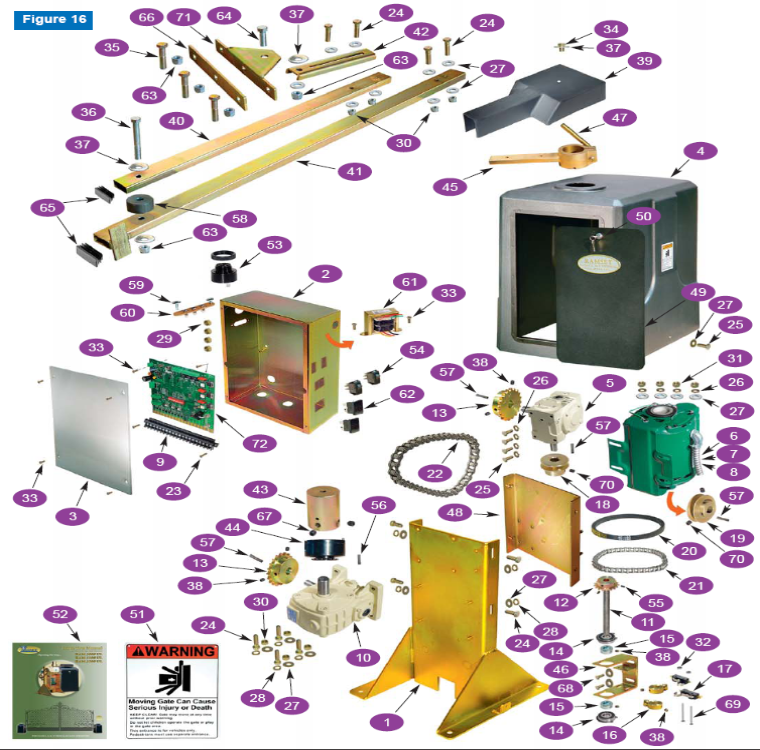

| RAMSET Gate Operators Ram 3000 - Scroll Down to View Exploded Parts View or Illustrated Parts Breakdown For Swinging Gate Operators Click Here for Replacement Parts Quote Form on all Inquiries |
| Click on Image to Enlarge, after new window opens click on image again to enlarge more or you can download PDF File RAMSET Parts Ram 3000 |
| RAMSET Replacement Parts for your RAMSET Operators - We Offer RAMSET Factory Direct replacement parts and New Products for RAMSET Systems, Gate Operators, Keypad Parts, Proximity and Multi-Tenant Access Control panels |
| Item Parts # Description for Ram 3000 Gate Operators 1 50-006 1/4" Hot Rolled Metal Chassis 2 50-009 Board Metal Box 3 50-015 Lexan Board Cover 4 50-022 Polyethylene Cover 5 50-029 Speed Reducer Size 40/40:1 Gear Ratio 6 50-033 1/2 Hp 115 VAC Electric Motor 7 50-034 3/4 Hp 115 VAC Electric Motor 8 50-035 1 Hp 220 VAC Electric Motor 9 50-039 20 Pin Edge Connector 10 50-040 Speed Reducer Size 70/30:1 Ratio 11 50-044 1/2" x 5 1/2" Limit Switch Shaft 12 50-051 35 b 17 x 1/2" Sprocket 13 50-054 40 b 21 x 3/4" Sprocket 14 50-059 6202-2rs Ball Bearing 15 50-061 1/2" Shaft Collard 16 50-068 1/2" Limit Switch Cam 17 50-069 Limit Switch 00h-3 18 50-070 2" Cast Iron Pulley 19 50-071 2 1/2" Cast Iron Pulley 20 50-076 4L V Belt # 170 21 50-085 #35 Limit Switch Chain 22 50-086 #40 Driver Chain (26 Links) 23 50-091 # 6 x 1" Machine Screw 24 50-092 3/8-16 x 1 1/2" Hex Head Bolt 25 50-095 5/16-18 x 3/4" Hex Head Bolt 26 50-096 5/16" Split Lock Washer 27 50-097 5/16" Flat Washer 28 50-101 3/8" Split Lock Washer 29 50-102 1/4-20 Hex Head Nut 4 30 50-103 3/8-16 Hex Head Lock Nut 31 50-104 5/16-18 Hex Head Nut 32 50-105 #6 Hex Head Nut 33 50-107 #6 x 3/8" Machine Screw 34 50-109 1/2-14 x 3/4" Head Bolt 35 50-110 1/2-14 x 2 1/2" Hex Head Bolt |
| Item Parts # Description for Ram 3000 Gate Operators 36 50-111 1/2-14 x 3 1/2" Hex Head Bolt 37 50-112 1/2" Flat Washer 38 50-114 1/4-20 Socket Head Screw 39 50-115 Polyethylene Cup Cover 40 50-117 1" x 2" x 32" Rectangular Metal Tube 41 50-118 1" x 2" x 42" Rectangular Metal Tube 42 50-126 3/4" x 1 1/2" Channel 43 50-132 2 1/2" x 4" Pivot 44 50-133 4" Limit Switch Hub 45 50-134 Clamp Release Arm 46 50-135 C Bracket for Limit Switch 47 50-136 Release Lever Handle 48 50-147 Back Channel 49 50-148 Access Door 50 50-149 Access Door Lock 51 50-151 Warning Sign for Gate 52 50-157 Instruction Manual 53 50-168 Horn Alarm 54 50-215 Rocker Switch 55 50-222 #8 Socket Head 56 50-264 1/4" x 1 1/2" Key Way 57 50-265 3/16" x 3/4" Key Way 58 50-275 1 1/2" UHMW Spacer 59 50-295 #8 Self-Tap Sheet Metal Screw 60 50-299 Radio Receiver Terminal 61 50-304 120/240 Intelligate Transformer 62 50-318 Square Outlet 63 50-321 1/2" Hex Head Lock Nut 64 50-337 1/2" x 1 1/2" Hex Head Bolt 65 50-339 1" x 2" Plastic Cap 66 50-419 1/4" x 1 1/2" x 10" Ext. Gate Bracket 67 50-521 1/2" Socket Head 68 50-522 1/4" x 3/4" Hex Head Bolt 69 50-529 #6 x 2" Machine Screw 70 50-539 5/16" Socket Head Screw 71 50-546 1/4" x 2" x 4" Gate Bracket 72 50-777 Intelligate Control Board |
