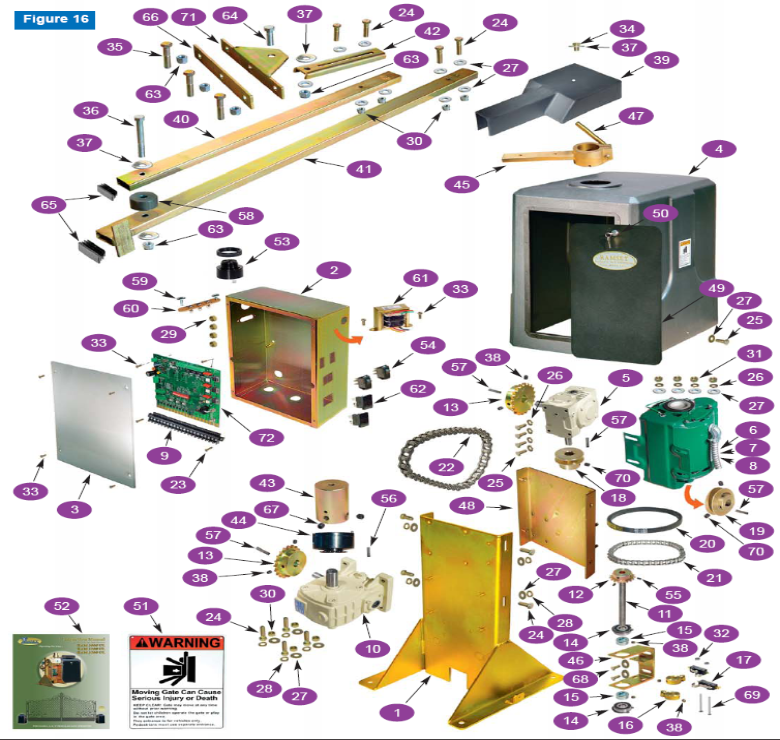

RAMSET Gate Openers 3100 OLD Style - Scroll Down to View Exploded Parts View & Parts List
RAMSET Replacement Parts for your RAMSET Openers - We Offer
RAMSET Factory Direct replacement parts and New Products for
RAMSET Systems, Gate Openers, Keypad Parts, Proximity and
Multi-Tenant Access Control panels
Item    Parts  #        Description for Ram 3100 Gate Openers
1          50-006         1/4" Hot Rolled Metal Chassis
2          50-009         Board Metal Box
3          50-015         Lexan Board Cover
4          50-022         Polyethylene Cover
5          50-029         Speed Reducer Size 40/40:1 Gear Ratio
6          50-033         1/2 Hp 115 VAC Electric Motor
7          50-034         3/4 Hp 115 VAC Electric Motor
8          50-035         1 Hp 220 VAC Electric Motor
9          50-039         20 Pin Edge Connector
10        50-040         Speed Reducer Size 70/30:1 Ratio
11        50-044         1/2" x 5 1/2" Limit Switch Shaft
12        50-051         35 b 17 x 1/2" Sprocket
13        50-054         40 b 21 x 3/4" Sprocket
14        50-059         6202-2rs Ball Bearing
15        50-061         1/2" Shaft Collard
16        50-068         1/2" Limit Switch Cam
17        50-069         Limit Switch 00h-3
18        50-070         2" Cast Iron Pulley
19        50-071         2 1/2" Cast Iron Pulley
20        50-076         4L V Belt # 170
21        50-085         #35 Limit Switch Chain
22        50-086         #40 Driver Chain (26 Links)
23        50-091         # 6 x 1" Machine Screw
24        50-092         3/8-16 x 1 1/2" Hex Head Bolt
25        50-095         5/16-18 x 3/4" Hex Head Bolt
26        50-096         5/16" Split Lock Washer
27        50-097         5/16" Flat Washer
28        50-101         3/8" Split Lock Washer
29        50-102         1/4-20 Hex Head Nut 4
30        50-103         3/8-16 Hex Head Lock Nut
31        50-104         5/16-18 Hex Head Nut
32        50-105         #6 Hex Head Nut
33        50-107         #6 x 3/8" Machine Screw
34        50-109         1/2-14 x 3/4" Head Bolt
35        50-110         1/2-14 x 2 1/2" Hex Head Bolt
36        50-111         1/2-14 x 3 1/2" Hex Head Bolt
Item    Parts  #        Description for Ram 3100 Gate Openers
37        50-112         1/2" Flat Washer
38        50-114         1/4-20 Socket Head Screw
39        50-115         Polyethylene Cup Cover
40        50-117         1" x 2" x 32" Rectangular Metal Tube
41        50-118         1" x 2" x 42" Rectangular Metal Tube
42        50-126         3/4" x 1 1/2" Channel
43        50-132         2 1/2" x 4" Pivot
44        50-133         4" Limit Switch Hub
45        50-134         Clamp Release Arm
46        50-135         C Bracket for Limit Switch
47        50-136         Release Lever Handle
48        50-147         Back Channel
49        50-148         Access Door
50        50-149         Access Door Lock
51        50-151         Warning Sign for Gate
52        50-157         Instruction Manual
53        50-168         Horn Alarm
54        50-215         Rocker Switch
55        50-222         #8 Socket Head
56        50-264         1/4" x 1 1/2" Key Way
57        50-265         3/16" x 3/4" Key Way
58        50-275         1 1/2" UHMW Spacer
59        50-295         #8 Self-Tap Sheet Metal Screw
60        50-299         Radio Receiver Terminal
61        50-304         120/240 Intelligate Transformer
62        50-318         Square Outlet
63        50-321         1/2" Hex Head Lock Nut
64        50-337         1/2" x 1 1/2" Hex Head Bolt
65        50-339         1" x 2" Plastic Cap
66        50-419         1/4" x 1 1/2" x 10" Ext. Gate Bracket
67        50-521         1/2" Socket Head
68        50-522         1/4" x 3/4" Hex Head Bolt
69        50-529         #6 x 2" Machine Screw
70        50-539         5/16" Socket Head Screw
71        50-546         1/4" x 2" x 4" Gate Bracket
72        50-777         Intelligate Control Board
