|Click on Brand for More Details

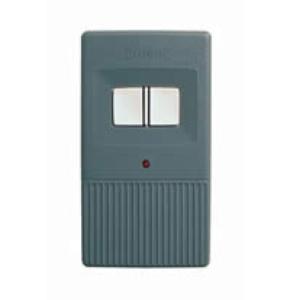

|Linear MCT-2, 2-Channel Visor Transmitter
Two-button, 9-Volt battery powered visor transmitter with removable visor clip, MegaCode format
•Activates two MegaCode receivers independently
•Visor mounting clip supplied
•Power: 9-volt battery
•Codes: 1,000,000+ (MegaCode format)
•RF Frequency: 318 MHz
•Dimensions: 2.16" W x 3.75" H x .95" D
Linear Mega Code (rolling code) Remote Transmitter with 318 MHz frequency. Compatible with
Linear garage door openers LD033, LD050 and LS050. MCT-1 and MCT-2 remotes will have will
show an FCC ID: EF4 DNT00083 number.
|The Linear Garage Door Opener MegaCode MCT-1 is a 1 button remote control that will work with all MegaCode 318MHz
frequency receivers by Linear. This Linear MegaCode remote control transmitter will operate one garage door. There are
no dip switches to set - this unit works with Smart Coding technology. The MCT-1 and MCT-2 MegaCode digital
transmitters are wireless radio controls designed for use with automatic garage/gate operators. The MegaCode radio
format provides unparalleled security. The format provides more than a million different codes.
The MCT-1, MCT-2 digital transmitters are wireless radio controls designed for use with automatic garage door and gate
Each of the three transmitter buttons will send a unique code when pressed. One button can be used to activate the
individual's garage door opener, a second button can operate an access gate, a third button can activate an additional
garage door operator or most Linear 318Mhz wireless receivers.
MegaCode transmitters and receivers do not contain a typical "coding switch". Each transmitter is permanently coded at
the factory. The receiver is programmed by "learning" a transmitter's unique digital code. The receiver will activate only
from the "memorized" transmitters.
The transmitters are powered by two type 2032 lithium "coin-cell" batteries. They should last 3 years with normal use. The
red indicator on the face of the transmitter will glow when the unit is activated. If the indicator lights dimly, or not at all
when transmitting, the batteries need to be replaced. To conserve battery life, an internal timer limits the transmission
duration to 10 seconds if a transmitter button is held down.
