|Click on Brand for More Details

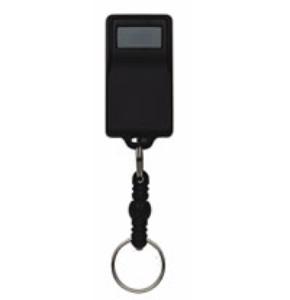

|Linear Remote Control, ACT-21B: 1-Channel Block Coded Key Ring Transmitter
•Compatible with all Linear access receivers and controllers
•Supplied with quick-disconnect key ring
•Sold in lots of 10
•Power: Two 1616 batteries
•Codes: Custom block coded in MegaCode format
•RF frequency: 318 MHz
•Dimensions: 1.25" W x 2.25" H x .48" D
|The Linear Mega Code ACT-21B 1-Channel Block Coded Key Ring Transmitter is designed for use with Linear’s access
control products. The Linear ACT-21B is a single-channel device supplied with a quick-disconnect key ring. Also included
are lithium batteries with a five-year service life. A unique 10-second time-out feature prevents the system from being
shut down by a single transmitter transmitting continuously.
The transmitter is MegaCode format, which means each transmitter is factory preprogrammed with one of over 1,000,000
codes, virtually eliminating the possibility of code duplication. Because the receiver ”learns” each specific code, no
unauthorized person can gain access to the system by reprogramming a transmitter.
Block coded transmitters are factory programmed to a sequential series of transmitter ID codes. When used with a Linear
access controller, transmitters can be locally or remotely programmed into memory by entering the first and last codes of
the block into the system. Facility codes can be selected to further customize the system.
