|Long Range Hand Held Remote Control Extended
Range up to 2 miles
|The Model XT-2H 2-Channel Handheld Mid-range Transmitter is designed for use in various wireless remote control
applications. When activated, the XT-2H portable transmitter will send a 2 watt, 27.255 MHz, digital encoded, FSK
modulated, signal to their companion receiver. The receiver will verify the digital code, activate its output, and trigger
the remote device.
The Model XT-2H is a two-button transmitter with two operating modes. In standard mode, the XT-2H is a two channel
device, pressing the left button sends channel one; the right button sends channel two; both buttons sends channels
one and two. In lockout mode, the XT-2H will only send a signal (on the channel selected) when both buttons are

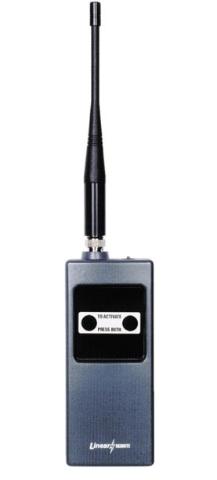

pressed. Alternate faceplate are supplied with the transmitter (2-button lockout faceplate shown above). Each
transmission is limited to a maximum of 30 seconds duration.
The XT-2H portable transmitter is powered by two 9-volt alkaline batteries in series, supplying 18 volts. During
transmissions, the red operation indicator will light (visible through a window next to the antenna). If the transmitter’s
battery voltage is low, the indicator will blink during transmissions. The XT-2H transmitter has battery supervision
capabilities. If the combined battery voltage drops below 12 volts, a low battery message will be included with any
signal transmitted, causing the receiver’s low battery output to activate. The test button next to the indicator sends a
test transmission when pressed.
Two 8-position switches set the unit’s system code. This code must be matched in the transmitter’s companion
receiver. There are 65,536 different system codes possible. The 4-position option switch selects the transmitter’s
channel (in 2-button lockout mode only) and the receiver’s bank (for the XR-16 receiver only).
Each transmitter is provided with a 6-inch rubber duck antenna and a removable belt clip.
• Up to two miles of line-of-sight range
• RF transmit LED
• Pushbutton activation
• Extra faceplate supplied for 2-button lockout operation
• Includes belt clip
• Antenna included
• Power: Two 9-volt batteries
• Codes: Over 64,000
• RF frequency: 27.255 MHz
• Dimensions: 2.375" W x 12.25" H x 1.375" D
Order number: SNT00396
