|Apollo 7000ETL Residential Slide Gate
APOLLO OFFERS ITS RESIDENTIAL LIGHT COMMERCIAL
POST-MOUNTED SLIDE GATE OPERATOR IN TWO MODELS, THE 7000
ETL AND THE 7000 ETL DUAL. BOTH MODELS ARE EASILY INSTALLED
ON MOST EXISTING OR NEW SLIDE GATES OF UP TO 20 FEET IN LENGTH
AND 600 POUNDS. THE 7000 ETL MODEL UTILIZES OUR ADVANCED
CIRCUIT BOARD, THE 835, WHICH OFFERS ADDITIONAL INPUTS FOR A
FIREBOX, OPEN/CLOSE LIMIT SWITCH LEDS, MONITOR LIGHTS, A LOCK,
SIREN AND STROBE LIGHTS. THE 835 HAS INHERENT SAFETY FEATURES
THAT COMPLY WITH THE UL325 STANDARDS.
BATTERY SOLD SEPARATELY
Manual Spec Sheet

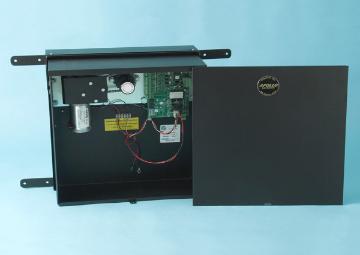

|Apollo 7000 ETL Residential Slide Gate Operator
APPLICATIONS: Battery Operated, Solar or AC Charged Slide Gate Operator.
Recommended for Residential, Farm and Ranch, and Light Commercial applications.
Recommended for gates up to 20 feet in length and 600 lbs. each.
OPEN OR CLOSE CYCLE TIME: Varies by gate. Operator drives gate at 1 foot per second
BATTERY/ CONTROL PANEL BOX: 21” (53.3cm) x 21” (53.3cm) x 8” (20cm) Powder Coated
SHIPPING INFORMATION: 2 boxes, 105 lbs. (47.3 kg)
CHAIN SUPPLIED: Operator comes with 35 ft. of #40 roller chain.
NOTE: Available in Master/Slave setup
|Apollo 7000ETL Residential Slide Gate Operator
GENERAL DESCRIPTION: Apollo swing and slide gate operators are ready for installation upon receipt. A
professional installer is recommended. Some welding is required for proper installation.
BATTERY REQUIREMENT: 12 volt battery. Apollo recommends a maintenance-free, deep cycle marine
battery – 105 amp./hour. (Not supplied) NOTE: In the event of electrical power outage, or significantly
days, a fully charged deep cycle marine battery (recommended) will provide up to 300 cycles or 30 days
usage on a basic system before requiring a recharge.
CIRCUIT BOARD: All standard Apollo operators are shipped with the 835/836 circuit board. Features of
this board include:
• Automatic, Adjustable Close Timer
• Adjustable Current Sensitivity for Automatic Safety Reverse
• Inputs for: Free Exit Loops, Safety Loops, Under Gate Loops, Safety
Edges, Free Exit Probes, Keypads, Telephone Entry Systems, Intercom
Systems, Pushbuttons, Locks, Radio, Receivers
• Fully Systems Capable
7000ETL Dual Models will handle gates of 20 ft. 600 lbs. each and are
equipped with 836 circuit boards.
|Apollo 7000ETL Slide Gate Operator
• AC Trickle Charger or Solar Panels
• Complete Line of Radio Transmitters and
• Wired or Wireless Digital Keypads
• Wired or Wireless Exit Buttons
• Intercom Systems
• Telephone Entry Systems
• Locks – Mechanical, Magnetic, Solenoid
• Safety and Free Exit Loop Detectors
• Safety Edges
• 3-Button Control Stations
• Exit Probe Detectors
• Photocell Detectors
