24VDC Hydraulic Operator for residential/condominium and commercial swing-leaf gates with single-leaf max. length of 14ft and single-leaf weight of 1,100lbs with opening/closing stops included. |

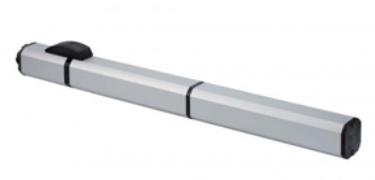

FAAC S450 H Hydraulic Swing Gate Operator |
|
THE POWER OF HYDRAULICS AND THE HIGHEST SAFETY WITH A QUICK AND EASY INSTALLATION • Condominium/residential and light commercial application, suitable for leafs up to 14 ft. (4.3 meters) • High closing/opening speed (1 in./s) (2.5 cm/s) • Very accurate anti-crushing and inversion on obstacles functions thanks to the integrated encoder • Flexible and easy to install thanks to the multi-position adjustable brackets and the long stroke (12 1/4 in.) (311 mm) • Gate speed and force can be adjusted through the electronic control board • New SB system (no hydraulic locking version) with tri-drive valves (FAAC patented): easier manual leaf movement • Integrated opening/closing mechanical stops included in the operator Suits a wide range of installations thanks to the multi-position adjustable brackets. The encoder, integrated on the rear attachment, allows to perfectly control the operator in any position. Moreover, it ensures a very high accuracy in obstacle detection and a quick inversion, according to the UL safety requirements. The Hybrid technology perfectly combines the advantages of both hydraulic and 24V technologies. This means robustness, high performances, reliability, speed control and anti-crushing safety (inversion on obstacles). |
|
|
