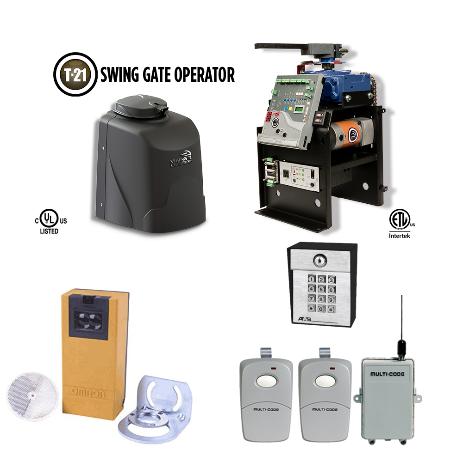

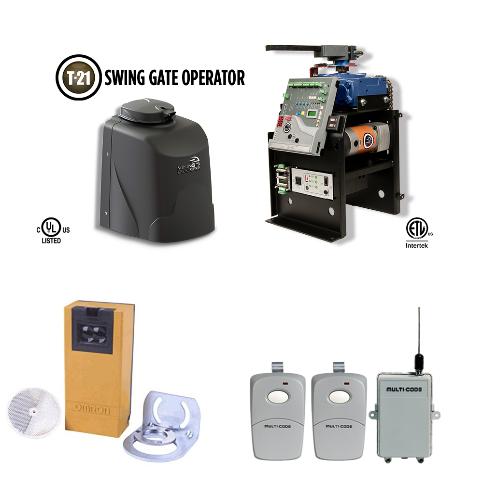

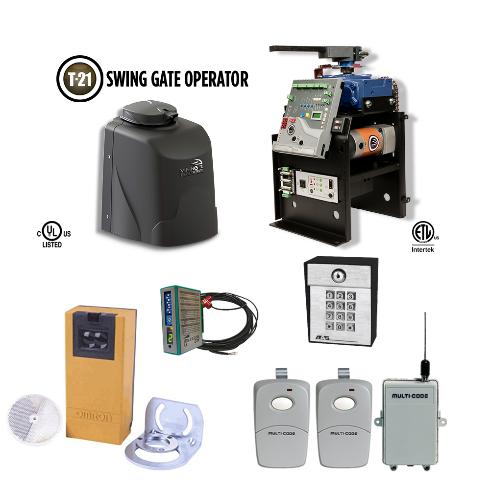

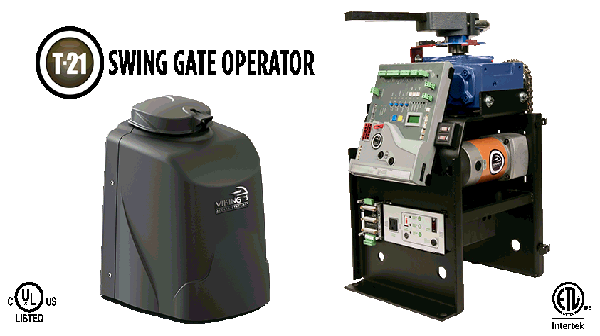

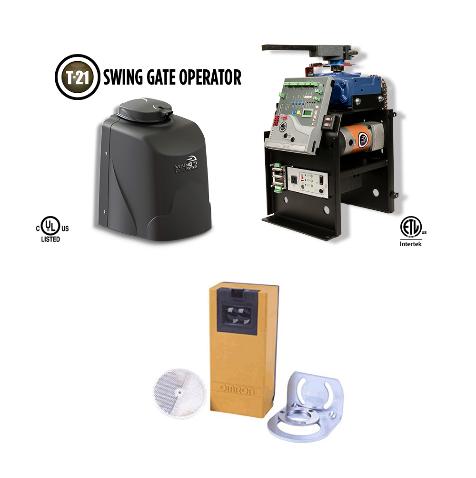

| Viking T-21 SWING GATE OPERATOR or OPENER heavy duty commercial Class I, Class II, Class III, and Class IV Vehicular Gate Operator 1HP with battery backup are simple but powerful words describing the Viking T-21™ gate operator. The T-21™ is our heavy duty swing gate operator capable of handling gates up to 1200 lbs. and 20' long. Smooth efficient gate movement is achieved with soft-start and soft-stop using the newest technology in electronics. Viking T-21 Swing Gate Operator or Opener Design features and manufactured specifications Some of the standard features include: fail-safe / fail-secure clutch mechanism, simple limit switch arrangement, clam shell cover design, 120/220 VAC single phase power source, built in three push button station, built in battery backup capable of 100 cycles in case of power failure, on-board lightning protection, and soft-start / soft-stop with intelligent obstruction detection. A. Extreme Power and Efficiency This gate operator provides up to 1 HP of torque for heavy swing gate operation. The power of the T-21™ is complimented by it’s helical bevel gear head motor, making this gate operator a very efficient, powerful access control solution. B. High Output Battery Backup The T-21™ is efficient at very high torques, demanding a high output battery back up system. Standard on this machine is a 7AHr battery to meet this demand. This enables the T-21™ to operate up to 100 cycles in case of a power failure. C. Modular Power Supply Another feature of the T-21 is the convenient modular power supply. The modular power supply includes protection against lightning strikes, electromagnetic filters, power service outlets and power switches. The various protections on this module increase the immunity of the gate operator to external events and also increase the reliability of the operator itself. |
| Viking T-21 Swing Gate Operator or Opener OPERATIONAL SPECIFICATIONS Max Gate Weight: 1200 lbs./20’ 2000 lbs./ 12’ Main Power Source: 120/220 VAC Single Phase Batery Backup Operation : 100 Ful Cycles (600lbs. / 12’ gate ) Operation : 24VDC with 1 H.P. Motor Max Operating Speed : 13-16 seconds per 90º Battery : 7 AMP HR 12 VDC x 2 Max Duty Cycle : 100% (Continuos Cycles ) |
