The H-10 Slide Gate Operator CLASS I, CLASS II, CLASS III, CLASS IV VEHICULAR GATE OPERATOR

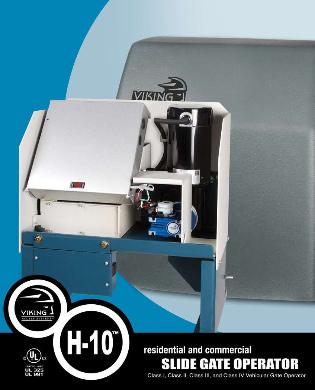

Viking H10 Heavy Slide Gate Heavy Traffic Gate Operator
Viking H-10 Slide Gate Operator / Gate Opener - The H-
10 gate operator has the capacity to operate slide
gates up to 2000 lbs. and 45 feet in length at 100% duty
cycle under extreme conditions. It’s efficient
mechanism provides a solution for high traffic
commercial slide gate applications. The Viking H-10
gate operator offers efficiency and technology
combined in a single package

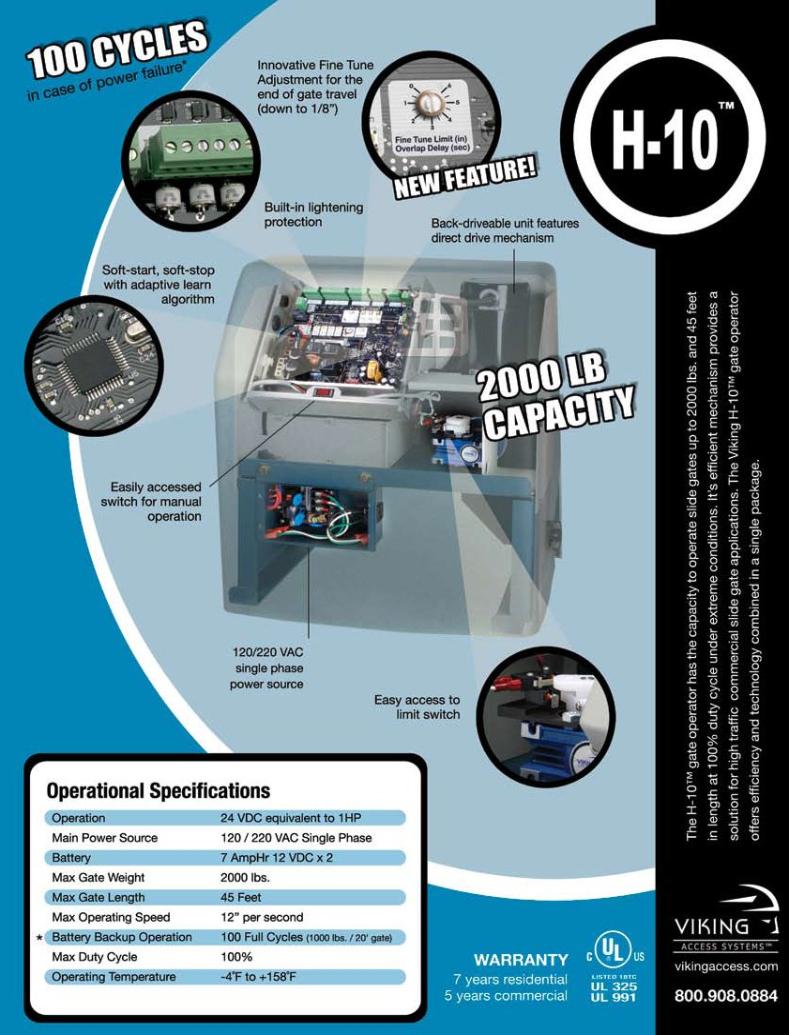

Viking H-10 Gate Opener / Slide Gate Operator
Operation 24 VDC with 1 H.P. Equivalent Motor
Main Power Source 110 / 220 VAC Single Phase
Battery 7 AmpHr 12 VDC x 2
Max Gate Weight 2000 lbs.
Max Gate Length 40 Feet
Max Operating Speed 12" per second
Battery Backup Operation 100 Full Cycles (1000 lbs. /
20' gate)
Max Duty Cycle 100% (Continuous Cycles)
Operating Temperature -4°F to +158°F
Manuals  PDF
Specs  PDF
Viking H-10 Slide Gate Opener / Gate Operators - Some of the standard
features include: 7 year residential and 5 year commercial warranty, UL 325
and 991 listing, innovative fine tune adjustment for the end of gate travel (
down to 1/8" ), back drivable unit featuring direct drive mechanism, soft
start and soft stop with adaptive learn algorithm, easy accessed switch for
manual operation, 120/220 VAC single phase power source, a built in three
push button station, a built in battery backup capable of 100 cycles in case
of power failure, on-board lightning protection, and easy access to limit
switches.
CLICK HERE TO PURCHASE OR VIEW COMPLETE SELECTION OF  VIKING ACCESS
GATE OPENERS AND ACCESSORIES
Custom Decorative Ornamental Wrought Iron and Aluminum Driveway Gates
Custom Decorative Ornamental Estate Metal Driveway Gates
Great Selection of Aluminum Driveway Gates, Modern designs all welded construction powder coat Oven Baked
We Custom make all of our driveway gates to your specs all installation hardware is included
Privacy Gates,Privacy Driveway Gates,Metal Backing,Wood Insert,Privay Panels
Garden Gates, Walk Thru Gates, Garden Walk Through Gates, Wrought Iron or Aluminum Iron Garden Walk Gates
All our Garden gates are custom made to match driveway gates and fencing complementing your home exterior design
Metal, Plexiglas, Krinkglas, Wood are use as Privacy panels backing with an array of color to choose from
Aluminum Picket Fence, Pool Fence, Security Pool Fence
Custom Fence Wrought Iron Fence Fencing Metal Design Steel Ornamental
Deck Railings, Iron Railings,Porch Railings,Balcony Railings,Hand Rails, Aluminum or Wrought Iron Metal Railings
We make Custom modern railings for Balconies,front porch,Decks, pool area all welded Aluminum
Gate Openers-Gate Operators, Top Brands,Power Master,Eagle,Elite,RamSet,DoorKing,OSCO,SEA
Ramset Gate Openers and Operators Swing Slide Residential Commercial and Industrial
We are pround to carry the FAAC Gate Opener line including parts and customer service 2nd to none
Apollo Gate openers the best Solar operators in the market, available in residential, commercial and industrial models, single swing,dual and slide
BFT all UL/CSA approved electromechanical and hydraulic operators, rack & pinion,kits, great openers at agreat price
Complete Power Master gate openers, operators available on line
Liftmaster gate opener,operators and barriers designed to meet your access control and security needs
Elite Gate Operators the leading provider of gate operators
Doorking also known as “DKS” manufacturers of telephone entry systems, vehicular gate operators, parking control products and access control systems in the US
OSCO Linear Gate Operators swing Slide Barriers Variable Speed Residential Commercial Industrial
Allstar Gate Openers part of Linear corp
Full line of Viking gate openers, operators and barriers, all Viking openers are equip with battery back up
Eagle Gate Openers Operators Residential Commercial swing slide
SEA an Italian line of gate openers, Rack & Pinion,chain,swing
Hysecurity when only the best will do, Hysecurity is the line of openers that you want
Control Boards, Main Circuit Boards, MotherBoards, Main Control Circuit Boards for Gate Operators
Remote Controls Multi-Code Linear Liftmaster Chamberlain Clicker Mini Transmitter Heddolf Skylink
Multi code remote controls available in visor style and key chain style, 1,2 and 4 buttons in 300 and 310 mhz
Transmitter Solution Gate Remote Control Garage Door Clicker
Linear Remote Controls, Delta 3,Mega Code,Block Code,310MHZ,318Mhz
Liftmaster Remote Controls we carry older models as well like 61lm,62lm,63lm,64lm,971lm,972lm,973lm,974lm and new item as well
Doorking remote control MicroClick,MicroPlus Block codes
Keystone Heddolf has one of the largest selection of frequency in the market including extended range remotes
BFT FAAC SEA are all italian brand with a European frequency 433Mhz and 418Mhz
Long Range Remote controls and receivers from several brands
Receivers from Linear, DoorKing, Multi-Code, Liftaster, Heddolf, Extended Range
Multi Code Linear Extensive line of Receiver for any access remote needs including long range
Doorking Receiver Microplus Microclick RF Control Access Control 8054 Series 8057 Series 8055 Series 8053-080 8056-080 8059-080 8060-061
Liftmaster Receiver 312HM 412HM 635LM 365LM Star450 Passport CPWR3 423LM TCR TCG
Keystone Heddolf Receiver 318Mhz 300Mhz Long Range ER294 M294 P294
Long Range Remote and Receivers from several brands
Phone entry system, Doorking, American access System, Linear, Elite, Select Engineered,Sentex
SES - Select Engineering System for your telephone access control residential or commercial application
AAS - American Access System telephone entry keypads card readers
Doorking Telephone Entry residential commercial keypad intercom for all you access control needs
Liftmaster TAC1 telephone entry and keypad WKP5LM WKP250LM
Sentex Infinity L, Infinity S, Infinity M, Infinity B
Elite gate entry system EL25 EL2000 Dial Code Icon 26
Linear TelephoneEntry System AE100,AE500,AE1000,AE2000,RE1,RE2
IP Telephone entry Voice over internet anolog GSM Gate way Cell phone remote IP Video Gate Intercom Door phone entry
Keypads Wire Keypad Wireless Keypad Liftmaster American Access System AAS Doorking DK Multi-Code Hedolff
Loop Detectors, PhotoCell, Exit Devices, Emergency Entry Equipment
Safety loop EMX, BD Loop, Doorking, Preform, saw cut, pave over
Loop Detector Reno AE Loop Detector Diablo EDI EMX
Safety Photo Cell Infrared Reflector Vehicle Detector Safety Photo Beam
Gate Accessories - Roller Guides, Wheels, Hinges, Latches
Cantilever Gate wheels Gate Rollers Heavy Duty Gate Wheels Rolling Gate Wheels
Inverted V track gate wheels guide rollers Groove Wheels Slide Gate Hardware Galvanized Aluminum Track
J-Bolt Adjustible gate hinges spring pool hinges Heavy Duty driveway gate hinges
Gate Latch Pool gate latch double dead bolt lock lever passage lock pool safety lock
Gate Openers or Operators Parts - Replacement Parts
L. A. Ornamental & Rack Corp
3708 NW 82nd Street
Miami, Florida 33147
Office: 305-696-0419
Fax: 305-696-0419
Welcome to: GATESNFENCES.COM
Gate Openers made in the U.S.A.
About Us  |   Contact Us   |   Our Policies   |   FAQ   |   Manufactures   |   Links   |
Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp.  All rights reserved. No part of this site can be
reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written
consent of L. A. Ornamental & Rack Corp.
3708 NW 82nd Street  Miami  Florida  33147, Office: 305-696-0419  Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com
A New Standard in the Access Control Industry: Viking Access, is
constantly pushing the boundaries of innovation in order to make our
customers lives more exciting, more fulfilling, and easier to manage.  with
advanced features, reliability,  Dedication and commitment in
manufacturing quality products moving technology forward introducing a
new era of Gate Automation has transformed the Industry. Viking Access
Systems
Viking Access F1Swing Gate Opener Commercial Operator Battery Back Up
Viking Access G5 Screw Residential light Commercial Swing Gate Opener Battery Back Up
Viking Access I8 Residential Underground Gate Opener Battery Back Up
Viking Access R6 Residential Swing Gate Opener Battery Back Up
Viking Access X9 Low Pull Swing Gate Opener Battery Back Up
Viking T-21 Swing Commercial Gate Opener, Commercial Operator
Viking Access H10 Sliding Opener Slide Heavy Duty Commercial Gate Operator Battery Back Up
Viking Access K2 Residential Slide Gate Opener Battery Back Up
Viking Access L3 Commercial Sliding Gate Opener Battery Back Up
Viking Access Q4 Super Heavy Duty Commercial High Traffic Gate Slide Gate Opener Battery Back Up
Viking Access B12 Traffic Barrier Control Gate Parking Lot Barrier
All Brand Vehicle Barrier Arms,Liftmaster Mega Arm,Doorking 1601,1602,1603,OSCO BGU,OSCO BGUS,OSCO BGUD,PowerMaster P1500,P5000,MBG,Viking B12,FAAC,FAAC 615,FAAC 620,Apollo BA12,SEA Vela,SEA Vela Industrial
Back To Main Viking Access Gate Operators Page

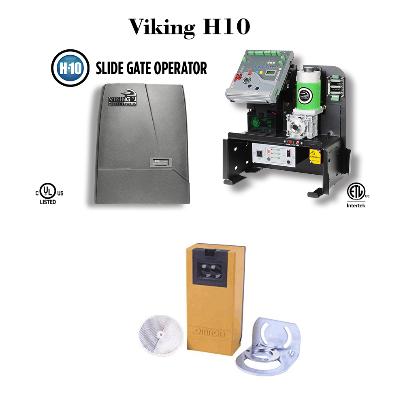

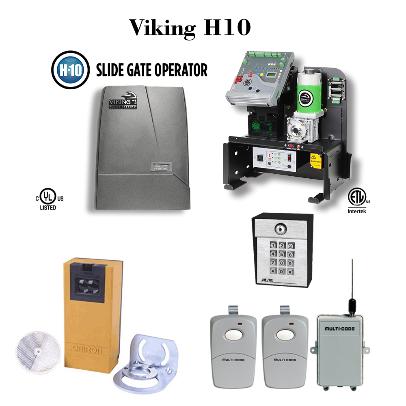

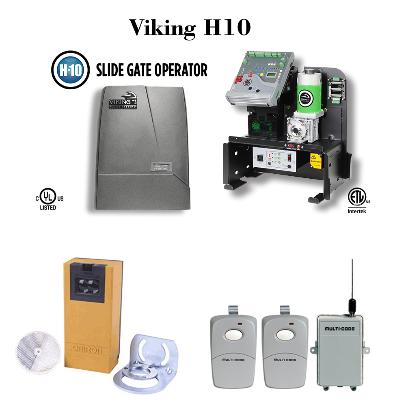

Viking Gate Opener H10 Heavy Duty Commercial High Traffic Slide Gate Operator -- $1,675.00
Replacement Part only
Viking Board , Viking DUPCB10 Circuit Board -- $335.00
Keypads & Telephone Entry Systems
Gate Operator Circuit Boards
Remote Controls
Loop Detectors & Safety Equipment
Receivers
Viking H10 2nd Gen Slide Gate Operator
Viking is proud to announce the 2nd generation H10 Slide gate operator. A few of the great
new features include:
  • 2200 pound gate capacity
  • New V-Flex Control Board
  • Digital Limits
  •  New Chassis design
  • New removable Modular power box
Viking Blue Technology:
Plug and Play connection for “Viking Blue” add-on products.
Viking Blue – Wireless Diagnostic Tool provides diagnostic information wirelessly within
range of the Control Board.

Lightening Protection:
Advanced lightning strike protection up 20,000 volts/10,000 Amps
On board surge protection monitoring

Solar Smart:
Power saving technology minimizes curret draw while at standby. New solar enabled feature
to maximize operation time.

Diagnostics Display:
On-board LCD Monitor displays voltages, amps, gate status and diagnostics.

Viking RF-Link:
Plug and Play connection for "Viking Wifi" add-on. Remote access to the control board
settings, programming, operator diagnostics, gate controls and gate status all from the
convenience of a computer or any compatible handheld device.

Motor: 24 VDC 1 HP
Operating Speed: 12 inches per second
Duty Cycle: 100%
Battery Backup: 100 Cycles
Power Source Options: 115V/230V AC single Phase
24V AC/DC
Operating Temp: -20 F to 158 F
Viking H10 2nd Generation Specs
