Note: The Per UL325-2016 all gate operators sold in the USA after February 2016 will
be required to have a monitored safety photo cell to prevent accidental crushing or
entrapment.
Viking Access System Gate Opener
K2 Residential Slide Sliding
Operator --
Add to cart to see price

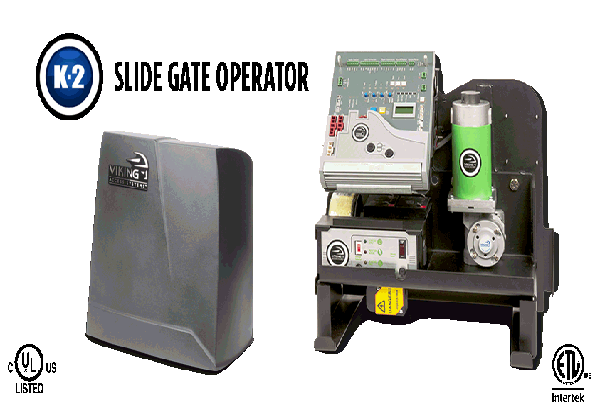

The newly redesigned K-2™ residential slide gate operator
features the  push-button digital limits setup.
Featuring a built in heater, increased gate capacity of up to 700
lbs., a 5 Year residential warranty and Viking’s true standard
battery backup system. With convenient fuse access and LED
status indicators for incoming high voltage.
Solar energy efficient,  suitable for low voltage installation,
reliable gate operation, piece of mind operation during a power
failure due to its built-in battery backup system, safety
compliance to ETL and UL makes the K-2 the operator of choice
for your residential slide gate application.
  • OPERATIONS SPECIFICATIONS
  • Operational Voltage ........... 24 DC
  • Main Power Source ........... 115 / 230 AC Single Phase
  • 24 AC/DC Solar Compatible
  • Battery .............................. 12 DC x 2
  • Max Gate Capacity ............ 700 lbs. / 30'
  • Max Operating Speed ........ 12" per Second
  • Battery Backup .................. 100 Full Continuous
  • Duty Cycle(700 lbs)
  • Maximum Duty Cycle ........ 100% Continuous Cycle
  • Operating Temperature ..... -20° F to 160° F
  • Plug and Play connection for “Viking Blue” add-on products.
  • Viking Blue – Wireless Diagnostic Tool provides diagnostic information wirelessly
    within range of the Control Board.
  • Lightening Protection: Advanced lightning strike protection up 20,000 volts/10,000
    Amps
  • On board surge protection monitoring
  • Solar Smart: Power saving technology minimizes curret draw while at standby. New
    solar enabled feature to maximize operation time.
  • Diagnostics Display:On-board LCD Monitor displays voltages, amps, gate status and
    diagnostics.
  • Viking RF-Link:Plug and Play connection for "Viking Wifi" add-on. Remote access to
    the control board settings, programming, operator diagnostics, gate controls and gate
    status all from the convenience of a computer or any compatible handheld device.
  • Motor: 24 VDC
  • Operating Speed: 12 inches per second
  • Duty Cycle: 100%
  • Battery Backup: 100 Cycles
  • Power Source Options: 115V/230V AC single Phase 24V AC/DC
  • Operating Temp: -20 F to 160° F

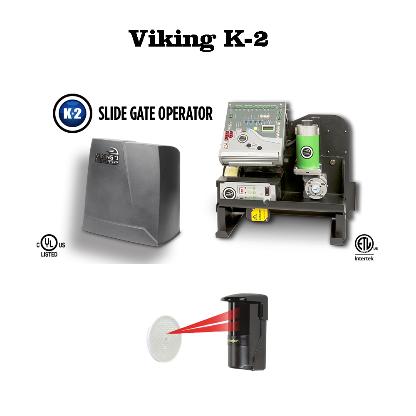

Viking K2 NX Kit 1
Kit 1 Includes:
Seco Alarm Monitored
Safety Photo Cell --
Add to cart to see price

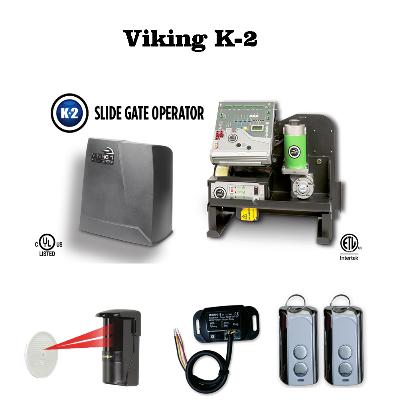

Viking K2NX Kit 2
Residential Slide Gate
Operator, 1 Photo Safety,
Cell, 1 Receiver, 2 Remote
Controls --
Add to cart to
see price

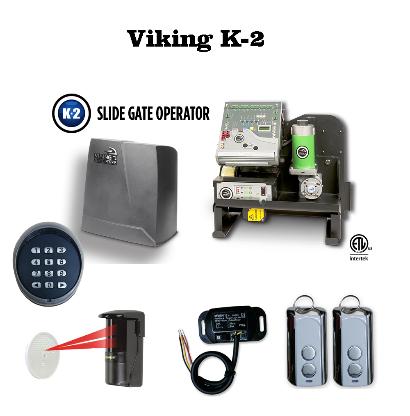

Viking K2NX Kit 3 Residential
Slide Gate Operator, 1 Photo
Safety Cell, 1 Receiver, 2
Remote Controls, 1 Keypad --
Add to cart to see price

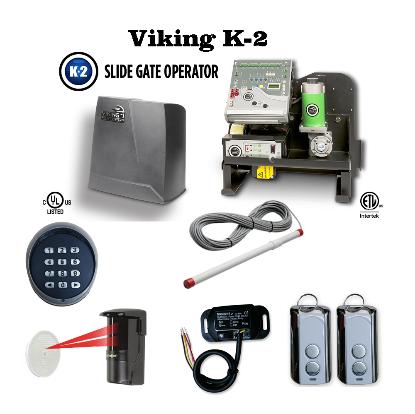

Viking K2NX Kit 4 Slide Gate
Operator, 1 Photo Safety Cell, 1
Exit Wand, 1 Keypad --
Add to
cart to see price
Click on the image to DOWNLOAD the manual of Discontinue Viking Gate Openers Gen # 1
1
Viking Parts for K-2, Viking VK2CH10
Chassis
Our Price: $234.03
2
Viking Parts for K-2, Viking DUEB10
Electric Box
Our Price: $66.31
3
Viking Parts for K-2, Viking VK2MMO10
24V 1/2hp DC Motor/Drive Assembly
Our Price: $312.04
4
Viking Parts for K-2, Viking VK2CO10
-DSCO10 Operator Cover
Our Price: $140.42
5
Viking Parts for K-2, Viking DSLC10
Limit Cam
Our Price: $13.20
6
Viking Parts for K-2, Viking DULS10
Limit Switch
Our Price: $13.80
7
Viking Parts for K-2, Viking DSLH10
Limit Switch Holder
Our Price: $21.80
8
Viking Parts for K-2, Viking VAL3SP25
Sprocket Chain Drive (41B25)
Our Price: $29.00
9
Viking Parts for K-2, Viking VK23CB 20'
#40 Chain & Bracket Set
Our Price: $54.61
10
Viking Parts for K-2, Viking DSIP10
Idler Pulley
Our Cost: $22.70
11
Viking Parts for K2,Viking DULG10
Limit Switch Gear Box
Our Price: $109.21
12
Viking Parts for K2,Viking DUPCB10
Control Board
Our Price: $335.00
13
Viking Parts for K2,Viking DUTT10
Toroid Transformer
Our Price: $132.62
14
Viking Parts for K2,Viking DSIB10 Idler
Bushing
Our Price: $14.40
15
Viking Parts for K2,Viking DUMRS10
Reset Switch
Our Price: $12.96
16
Viking Parts for K2,Viking DUAL10
Alarm
Our Price: $20.60
17
Viking Parts for K2,Viking DUOL120
Receptacle
Our Price: $20.60
18
Viking Parts for K2,Viking DUBA12
Battery
Our Price: $29.00
19
Viking Parts for K2,Viking DUEMI10 EMI
Board
Our Price: $62.41
20
Viking Parts for K2,Viking VABFH
Battery Fuse Holder
Our Price: $15.60
21
Viking Parts for K2,Viking DUFUSKT
Fuse Kit
Our Price: $12..00
22
Viking Parts for K2,Viking K2LSWH
Limit Switch Harness
Our Price $21.80
23
Viking Parts for K2,Viking DUPHC
Power Harness
Our Price: $26.00
24
Viking Parts for K2,Viking DUWL
Warning Sticker
Our Price $10.08
25
Viking Parts for K2,Viking DUMPA
Warning Placard ( Sign )
Our Price: $11.74

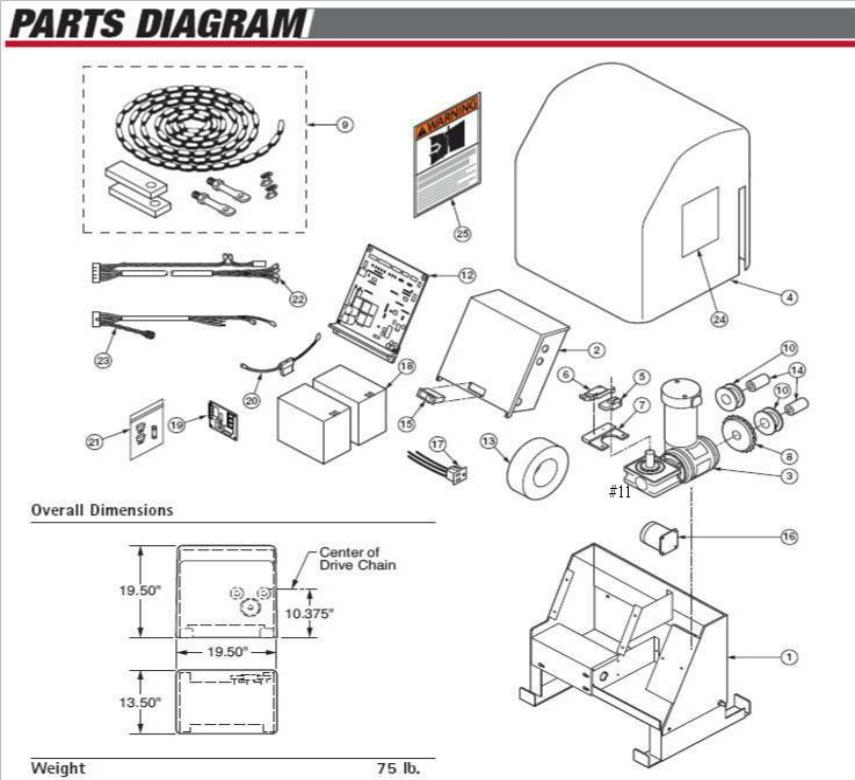

This is the Parts Diagram for Viking 1st Generation K2 Gate Opener
Parts List for the older Style Viking Gate opener
Parts List for Viking K2 - 1ST Generation
