A complete line of controllers, radio receivers, transmitters, and accessories for configuring and upgrading access
control systems. Capabilities include telephone entry systems, radio-based products for remote "keyless entry",
"panic" alarms and greater handicapped access, as well as traditional forms of access control, such as keypads and
swipe card readers.

Linear EXA-1000 Omni-directional Remote Antenna
The Model EXA-1000 Omni-directional Remote Antenna is designed to enhance the radio
range of Linear's receivers. This antenna can be connected to the F connector on many
Linear receivers to improve their range when they must be located in poor signal
reception locations. Usually an increase of 20-30% range can be expected. The versatile
EXA-1000 can be mounted in a variety of ways. A 2-inch U-bolt is supplied for post or pipe
mounting, or the U-bolt holes in the Base Plate can be used to screw the antenna to a wall
or vertical wood brace or beam
Product Number: AAE00198

Linear EXA-2000 Directional Remote Antenna
The Model EXA-2000 Directional Remote Antenna is designed to enhance the radio range of
Linear's receivers. This antenna can be connected to the F connector on many Linear
receivers to improve their range when they must be located in poor signal reception
locations. Usually an increase of 20-30% range can be expected. The versatile EXA-2000 can
be mounted either vertically or horizontally.
Product Number: AAE00331

Linear AP-4 Gate Access Receiver
Ideal for gated communities, parking facilities, and industrial sites.
Easy to set-up and use — up to 480 remotes can be programmed with a few keystrokes.
Easy to add, suspend, and delete transmitters through programming mode — no
transmitter dip switches to set.
Supports 480 block coded transmitters or 238 individual ransmitters/wireless keypad entry
codes.
Supports one fully supervised safety edge transmitter.

Linear AP-5 Access Controller
Dual-portal access control system, built-in radio receiver, supports 480 block coded
transmitters or 238 individual transmitters/wireless keypad entry codes and six MGT
obstacle transmitters, three relays, programmable access or obstacle output
Product Number: ACP00953

Linear AM-RPR Remote Proximity Receiver
The Model AM-RPR Remote Proximity Receiver is designed for use with Linear's access
control systems. The AM-RPR functions as a remote device that supplies localized radio
reception. In a typical installation, the AM-RPR would be mounted in a plastic single-gang
electrical box next to the controlled opening. When the user requires access, their
transmitter must be activated within three inches of the AM-RPR faceplate. The
ultra-short range of the AM-RPR allows placement of a unit by each controlled opening
without the possibility of the transmitter being detected by the wrong receiver
Product Number: ACP00560

Linear AM-PC Proximity card
The Model AM-PC Proximity Card is a Wiegand format proximity type access control card
with a slot for attaching to a key ring, use with AM-PR proximity reader.
Product Number: ACP00739

Linear AM-PT Proximity Tag
The Model AM-PT Proximity Tag is a Wiegand format proximity type miniature access control
tag with a slot for attaching to a key ring, use with AM-PR proximity reader
Product number: ACP00742

Linear AM-PR Proximity Reader
The Model AM-PR Proximity Reader is designed for use with Linear's access control
systems. This close-range, reader works with either proximity tags or proximity cards. The
AM-PR is rugged, rated for extreme weather, and vandal resistant.
Product Number: ACP00740

Linear AM-CRI Card Reader
The AM-CRI card reader interface is designed for use with Linear's access control
systems. The interface will support one or two 26-bit or 31-bit Wiegand input devices. If
the readers used have a hold or buffer connection, two readers may be used to the
AM-CRI. If the readers do not have a hold or buffer connection, one reader may be used
with the AM-CRI. Usually mounted near the readers, the AM-CRI interface connects to the
control unit through a PBUS cable. Each reader connects to the AM-CRI through a
six-wire (one LED in reader) or seven wire (two LEDs in reader) cable

Linear AM-RRR Remote Radio Receiver
The Model AM-RRR Remote Radio Receiver is designed for use with Linear's access
control systems. The AM-RRR functions as a remote device that extends the radio range or
supplies localized radio reception.
Product Number: ACP00500

Linear RGR Remote Genie Receiver
Radio receiver for outdoor applications, receives signals from Linear GT-30/GT-31
transmitters and many Genie transmitters, connects to AM/II, AM-3, AE-1, AE-2, AE-1000, or
AE-2000 access controllers, metal case, antenna included
Product number: ACP00745

Linear WOR Wiegand Output Receiver
Access control interface for Linear block coded transmitters, adds a facility code to the transmitter data, and
sends the information to the Wiegand input of an access control panel via a 5-wire connection, waterproof metal
enclosure
Product Number: ACP00727

Linear CCM-1 Color Camera
The Model CCM-1 Color Camera mounts inside AE-100, AE-500, AE1000Plus and AE2000Plus
commercial access controllers to provide color video of the access control visitor.
Product number: ACP00904

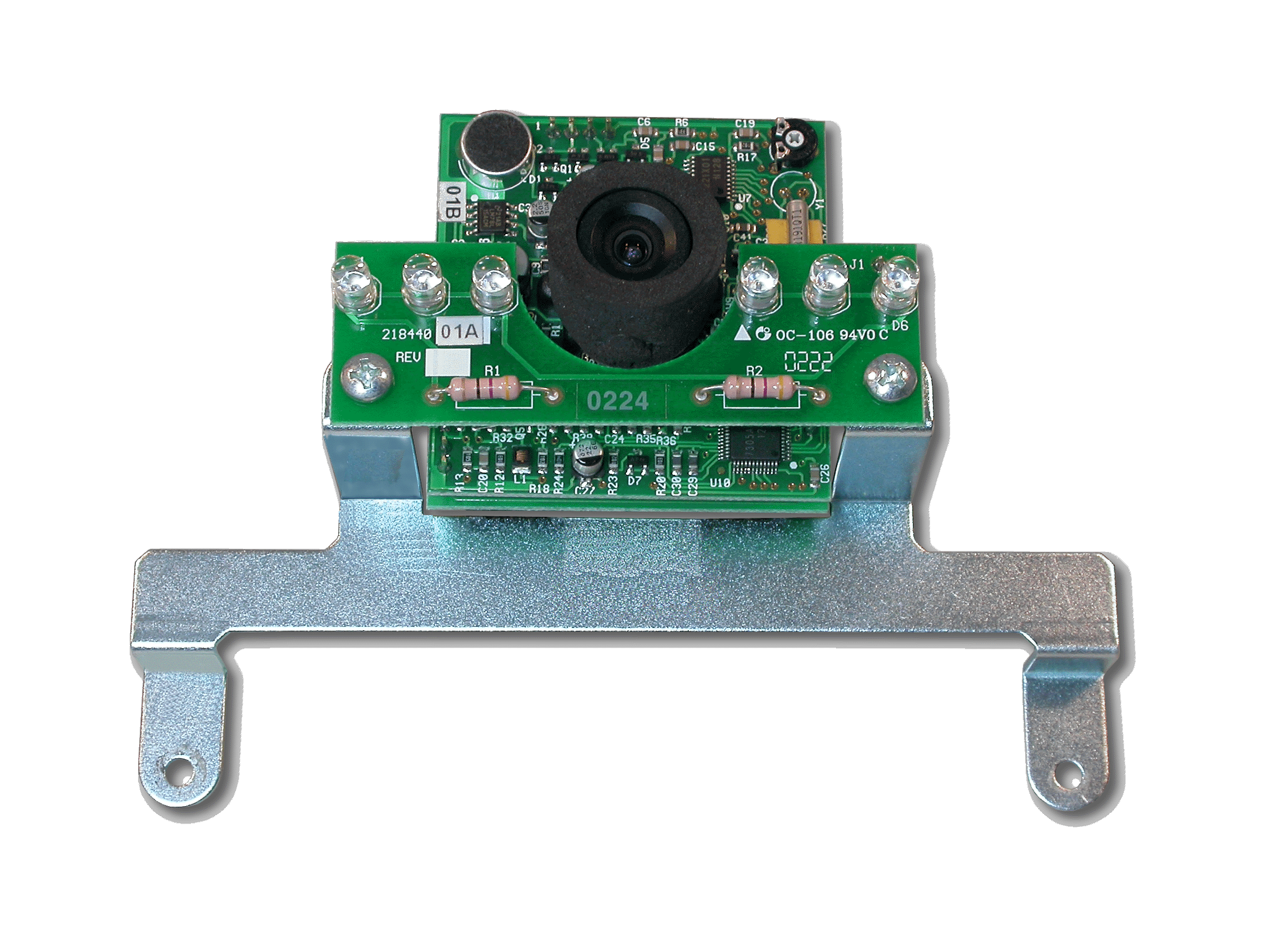

Linear RE-BWC-1 Black and White Camera
The Model RE-BWC1 Black & White Camera mounts inside RE-1N or RE-1SS residential
telephone entry systems to provide black and white video of the entry system visitor.
Built-in infrared illuminators help to light the subject in low-light conditions.
Product number: ACP00886A

Linear CCM-2 Color Camera
The Model CCM-2 Color Camera mounts inside RE-2 Nickel or Stainless Steel commercial
access controllers to provide color video of the access control visitor.
Product number: ACP00936

Linear CPDM-1 Video Modulator for Access Cameras
The Model CPDM-1 Digital Modulator converts any baseband NTSC video and audio signal
to a selected UHF or Ultraband CATV channel. A quartz crystal reference oscillator and PLL
circuitry ensure drift-free performance. The modulator can be used to convert video
signals from Linear's access control systems to UHF or CATV signals that can be viewed on
a standard television set at the installation.

Linear Trim Ring TR-100
The Model TR-100 Trim Ring is designed for recess mounting the Model AE-100
Commercial Telephone Entry System. The flush-mount trim ring attaches to the wall
studs or custom framing. The AE-100 attaches to the mounting ring.

Linear Trim Ring TR-500
The Model TR-500 Trim Ring is designed for recess mounting the Model AE-500
Commercial Telephone Entry System. The flush-mount trim ring attaches to the wall
studs or custom framing. The AE-500 attaches to the mounting ring.

Linear Trim Ring TR-1000
The Model TR-1000 Trim Ring is designed for recess mounting the Model
AE1000Plus Commercial Telephone Entry System with Access Control. The
flush-mount trim ring attaches to the wall studs or custom framing. The AE1000Plus
attaches to the mounting ring.

Linear Trim Ring TR-2000
The Model TR-2000 Trim Ring is designed for recess mounting the Model AE2000Plus
Commercial Telephone Entry System with Access Control. The flush-mount trim ring
attaches to the wall studs or custom framing. The AE2000Plus attaches to the mounting ring

Linear Trim Ring RT-RE2N
The Model TR-RE2N Trim Ring is designed for recess mounting the Model RE-2N
Residential Telephone Entry System. The flush-mount trim ring attaches to the wall studs
or custom framing. The RE-2N attaches to the mounting ring.

Linear Trim Ring TR-RE2SS
The Model TR-RE2SS Trim Ring is designed for recess mounting the Model RE-2SS
Residential Telephone Entry System. The flush-mount trim ring attaches to the wall studs
or custom framing. The RE-2SS attaches to the mounting ring.
