Vehicular Swing Gate Operator Our Commercial Swing Gate Operator with DC motor controls vehicular gates for high trac and residential applications. It is ideal for custom homes, apartments, self storage and other commercial properties. Standard Features: • Battery Backup • Soft Start / Soft Stop • Attractive Low Profile • Easy Set Limits • AC Power Plugs • Plug-In Loops • Clam Shell Cover • Easy-Install Design • 24DC direct drive motor offers higher efficiency • Built-in battery backup - Batteries included • Soft-Start/Soft Stop feature for smooth operation • Optional plug-in loop detectors save time and wiring • Built-in 3-Button control for simple installation setup • Separate Fire and Access inputs • Power fail operation can be set to open gate or cycle gate • Low battery operation can be set to open gate or cycle gate • Anti-Tailgate and Quick Close Features are standard • Maglock and Solenoid lock delay outputs standard • Solid state circuitry is protected by a plastic enclosure • Two convenient power outlets for accessories • Release Handle may be easily padlocked to prevent unauthorized use of the handle • Solar and low voltage charging inputs for added power control • Prewired terminals for maglocks, solenoid locks, external loop detectors, external alarm and warning lights • Three wire Master/Slave connection • Built-in Radio receiver • Cover: UV Protected Polyethylene (Clam Shell Design) • Gearbox: 750:1 • Motor: 1/2 HP, 500 Watt, 24VDC • Power input 120 VAC • Travel Speed: 90 Degrees in 15 seconds (approx.) • Gate Capacity: 800 lbs, 18 feet commercial capacity • Arm attachment Height: 17” from operator base • Dimensions: 18” High, 18.5” Wide, 23.5” Deep |

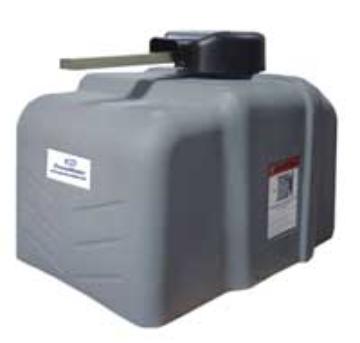

PowerMaster Model DSW operators with DC motor are designed for use in high traffic areas. Applications include apartment and condo complexes, custom homes, and self storage facilities. AC power plugs with battery backup. For gates up to 18' and/or 1200 lbs. Solar and low voltage charging inputs for added power control. Low profile design, easy to install and service. With attractive clam shell cover. |
|
