|Features: All Made or Assemble in the U.S.A. Best Gate Openers and Operators For
Residential, Commercial Or Industrial Application.
|Distribution centers are based in convenient areas across the country. These distribution centers are fully stocked with an assortment of operators and
parts to service your needs promptly, and are managed by factory trained personnel with decades of experience in the industry. We feel that one of our
greatest assets is our employees and their dedication to quality, and to the company. Most of our employees and management have been with us for over
15 years, and many have been with us for 20, 25, and even 30 years or more. No other company in the industry can offer this experience and commitment
in everything they manufacture.
The PowerMaster line is renowned for its consistent quality, reliability, and efficiency; while keeping with the latest available technology in the industry.
Together with our distributors, we have supplied door and gate operators all across North & South America, Europe, and Asia. Give us a call with your
next job requirements, and let us show you how we can surpass your expectations! Power Master Produces Several Types of Sliding Gate Openers,RSG
Residential, BSG Heavy Residential Light Commercial, SG Heavy Duty Commercial, SGI Super Heavy Duty Commercial
|L. A. Ornamental & Rack Corp
3708 NW 82nd Street
Miami, Florida 33147

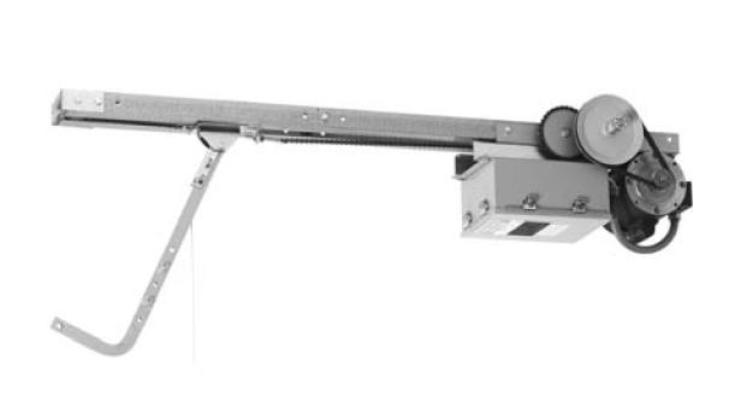

|Model "CT” Carwash Drawbar Operator
Supply PowerMaster Model “CT” Drawbar Operator(s) RATED ____ HP, ____ VOLTS, ____ PHASE, for Carwash applications for
use on Standard Lift Sectional Doors. Primary reduction shall be by heavy duty V-Belt Drive. Secondary reduction shall be a chain
and sprocket arrangement. Motor shall be continuous duty industrial type protected from overload by a current sensing or
thermal type overload device.
Motor shall be of the high starting torque, continuous duty industrial type, protected from overload by a current sensing or
thermal type overload device. Motor controller shall be a heavy duty, full voltage, across the line, magnetic reversing contactor,
that is mechanically and electrically interlocked
Electrical components shall be installed in a NEMA 4 enclosure integral to the operator. A transformer shall be provided to reduce
control voltage to 24 VAC. Separate terminal strips shall be provided for
connection of power supply line and all control devices. Operator shall be wired for an open/close/stop control station. Control
circuit shall provide instant reverse motor wiring on 1Ø operators. Positive chain driven, rotary type limit switches shall be
provided to limit full open and close travel of door. Limit switch adjustment shall not be affected by removal of motor or by manual
operation of door.
An adjustable torque limiting clutch shall be provided to prevent overloading of the operator. A spring set solenoid released brake,
and a disconnect arm for manual operation of the door shall be provided in case of power failure. The final reduction and drive
shall be heavy duty roller chain and sprockets. The drive shaft shall be supported by oilite bearings and be a minimum of ¾ In
•High Starting Torque TEFC Motor with Full Overload Protection Removable without Affecting Limit Switch Setting
•Solid State Circuitry with Power and Program Feedback LED’s
•On Board Open/Close/Stop buttons for service and adjustments
•Terminals labeled and grouped by function
•Auto-Detect monitored photo beam for simplified installation
•Selectable Operating modes B2, C2, D1, E2, T, TS
•Field adjustable built in functions including: timer to close, mid-stop, delay on reverse, lock bar sensing, maximum run time, etc.
•For Use in Carwash Applications on Standard Lift Sectional Doors, Rolling Service Doors & Grilles
•Heavy Duty V-Belt and Chain Reduction, Mechanically Self Locking
•Heavy Duty Corrosion Resistant Roller Chain Included
•Adjustable Torque Limiting Clutch
•Manual Disconnect Arm for Operation of the Door in case of power failure
•Operator Baked on Grey Powder Coat finish. Galvanized track.
