Ramset 300 Gate Openers GENERAL SPECIFICATIONS:
Max Gate Size 18'
Max Gate Weight 1000 lbs.
Motor light duty, 1/2 Hp, 120VAC, 50/60 hz
Emergency Release   Hand lever Release, Power Inverter
Dimensions   H:27" - L:16 " - W:20"
Travel Speed   Fully opens in 14 seconds

ELECTRONIC SPECIFICATIONS :
Control Board: A state-of-the-art, microprocessor controlled, surface mount pcb with features such as:
Electronic Reversing Device (ERD): Automatically adjusts to the size of the gate.
Automatic Timer: can be set from 0 to 60 seconds  Master/Slave:  Three wires synchronize bi-parting gates.
Electronic Inputs:  for radio receiver, fire department box, numeric key pad, metal detector, center loop,
telephone entry system, three button station, photo cell, safety edge and magnetic lock

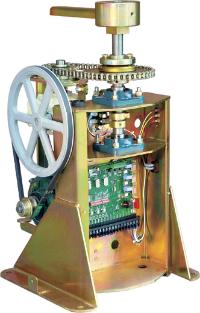

RamSet 300 Electric Gate Opener Residential Swing Electronic Gate Operator

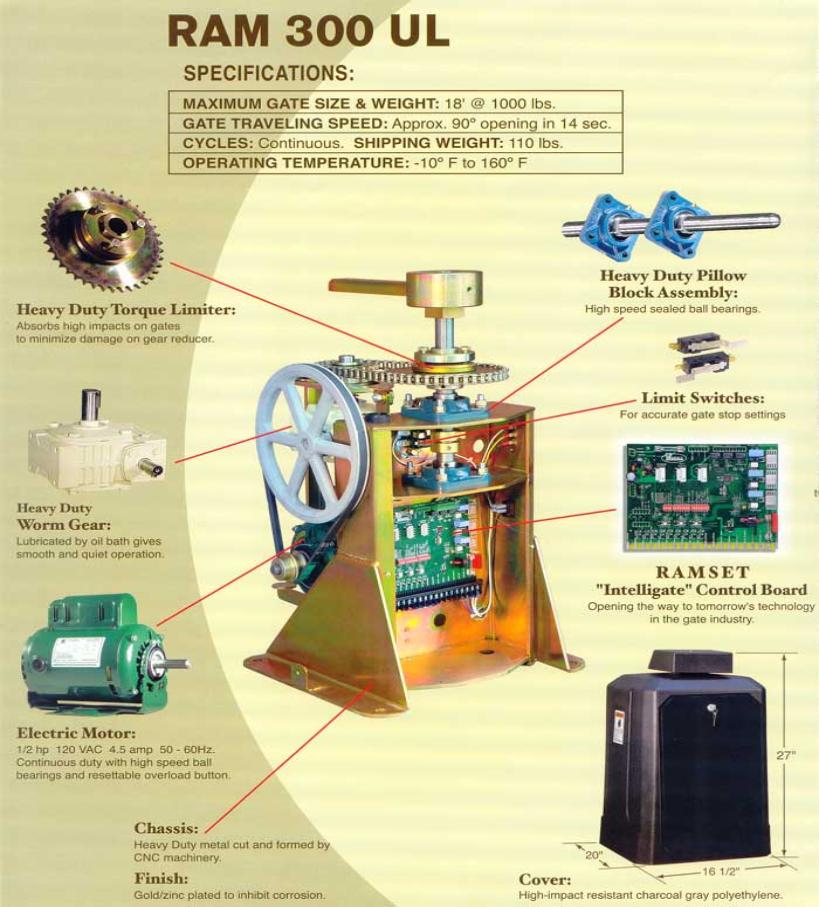

Ramset 300 UL 1/2 HP Swing Gate Operator
• Residential or Commercial use.
• Max Gate Capacity 1000 lbs. /18' length
• Max Operating Speed 14 seconds per 90°
• Motor: continuous duty 1/2 Hp
• Emergency foot pedal to release.
• Dimensions: H:27" - L:16 1/2" - W:20"
• Power 120 VAC, 4.5 amp. UL 325 listed
• Shipping Weight: 110-lbs.
Control Board:
Ramset’s Intelligate" Control Board is for
control board is available for either 110VAC or
Ramset’s Intelligate" Control Board is for
220VAC, single phase, applications; the control
board contains self adjusting ERD, left board
contains self adjusting ERD, left hand/right
hand operation control, lead/lag capability,
one-pass anti-tailgating, and options for 4
different gate addresses; the control board
also includes a rectified 24VAC, transformer
Custom Decorative Ornamental Wrought Iron and Aluminum Driveway Gates
Custom Decorative Ornamental Estate Metal Driveway Gates
Great Selection of Aluminum Driveway Gates, Modern designs all welded construction powder coat Oven Baked
We Custom make all of our driveway gates to your specs all installation hardware is included
Privacy Gates,Privacy Driveway Gates,Metal Backing,Wood Insert,Privay Panels
Garden Gates, Walk Thru Gates, Garden Walk Through Gates, Wrought Iron or Aluminum Iron Garden Walk Gates
All our Garden gates are custom made to match driveway gates and fencing complementing your home exterior design
Metal, Plexiglas, Krinkglas, Wood are use as Privacy panels backing with an array of color to choose from
Aluminum Picket Fence, Pool Fence, Security Pool Fence
Custom Fence Wrought Iron Fence Fencing Metal Design Steel Ornamental
Deck Railings, Iron Railings,Porch Railings,Balcony Railings,Hand Rails, Aluminum or Wrought Iron Metal Railings
We make Custom modern railings for Balconies,front porch,Decks, pool area all welded Aluminum
Gate Openers-Gate Operators, Top Brands,Power Master,Eagle,Elite,RamSet,DoorKing,OSCO,SEA
Ramset Gate Openers and Operators Swing Slide Residential Commercial and Industrial
We are pround to carry the FAAC Gate Opener line including parts and customer service 2nd to none
Apollo Gate openers the best Solar operators in the market, available in residential, commercial and industrial models, single swing,dual and slide
BFT all UL/CSA approved electromechanical and hydraulic operators, rack & pinion,kits, great openers at agreat price
Complete Power Master gate openers, operators available on line
Liftmaster gate opener,operators and barriers designed to meet your access control and security needs
Elite Gate Operators the leading provider of gate operators
Doorking also known as “DKS” manufacturers of telephone entry systems, vehicular gate operators, parking control products and access control systems in the US
OSCO Linear Gate Operators swing Slide Barriers Variable Speed Residential Commercial Industrial
Allstar Gate Openers part of Linear corp
Full line of Viking gate openers, operators and barriers, all Viking openers are equip with battery back up
Eagle Gate Openers Operators Residential Commercial swing slide
SEA an Italian line of gate openers, Rack & Pinion,chain,swing
Hysecurity when only the best will do, Hysecurity is the line of openers that you want
Control Boards, Main Circuit Boards, MotherBoards, Main Control Circuit Boards for Gate Operators
Remote Controls Multi-Code Linear Liftmaster Chamberlain Clicker Mini Transmitter Heddolf Skylink
Multi code remote controls available in visor style and key chain style, 1,2 and 4 buttons in 300 and 310 mhz
Transmitter Solution Gate Remote Control Garage Door Clicker
Linear Remote Controls, Delta 3,Mega Code,Block Code,310MHZ,318Mhz
Liftmaster Remote Controls we carry older models as well like 61lm,62lm,63lm,64lm,971lm,972lm,973lm,974lm and new item as well
Doorking remote control MicroClick,MicroPlus Block codes
Keystone Heddolf has one of the largest selection of frequency in the market including extended range remotes
BFT FAAC SEA are all italian brand with a European frequency 433Mhz and 418Mhz
Long Range Remote controls and receivers from several brands
Receivers from Linear, DoorKing, Multi-Code, Liftaster, Heddolf, Extended Range
Multi Code Linear Extensive line of Receiver for any access remote needs including long range
Doorking Receiver Microplus Microclick RF Control Access Control 8054 Series 8057 Series 8055 Series 8053-080 8056-080 8059-080 8060-061
Liftmaster Receiver 312HM 412HM 635LM 365LM Star450 Passport CPWR3 423LM TCR TCG
Keystone Heddolf Receiver 318Mhz 300Mhz Long Range ER294 M294 P294
Long Range Remote and Receivers from several brands
Phone entry system, Doorking, American access System, Linear, Elite, Select Engineered,Sentex
SES - Select Engineering System for your telephone access control residential or commercial application
AAS - American Access System telephone entry keypads card readers
Doorking Telephone Entry residential commercial keypad intercom for all you access control needs
Liftmaster TAC1 telephone entry and keypad WKP5LM WKP250LM
Sentex Infinity L, Infinity S, Infinity M, Infinity B
Elite gate entry system EL25 EL2000 Dial Code Icon 26
Linear TelephoneEntry System AE100,AE500,AE1000,AE2000,RE1,RE2
IP Telephone entry Voice over internet anolog GSM Gate way Cell phone remote IP Video Gate Intercom Door phone entry
Keypads Wire Keypad Wireless Keypad Liftmaster American Access System AAS Doorking DK Multi-Code Hedolff
Loop Detectors, PhotoCell, Exit Devices, Emergency Entry Equipment
Safety loop EMX, BD Loop, Doorking, Preform, saw cut, pave over
Loop Detector Reno AE Loop Detector Diablo EDI EMX
Safety Photo Cell Infrared Reflector Vehicle Detector Safety Photo Beam
Gate Accessories - Roller Guides, Wheels, Hinges, Latches
Cantilever Gate wheels Gate Rollers Heavy Duty Gate Wheels Rolling Gate Wheels
Inverted V track gate wheels guide rollers Groove Wheels Slide Gate Hardware Galvanized Aluminum Track
J-Bolt Adjustible gate hinges spring pool hinges Heavy Duty driveway gate hinges
Gate Latch Pool gate latch double dead bolt lock lever passage lock pool safety lock
Gate Openers or Operators Parts - Replacement Parts
Welcome to: GATESNFENCES.COM
Designed to satisfy the need for gate operators in high traffic areas, such as residential gated communities, public storages, industrial parks and
government facilities. In September 1994, Ramset Automatic Gate Systems Inc., began supplying a new generation of reliable vehicular gate operators.
The Ramset series of slide and swing gate operators are designed to satisfy the need for gate operators in high traffic installations, such as residential
gated communities, public storage, industrial parks and U.S. government facilities.
Ramset Swing Gate Opener 300 -
Heavy Residential Light
Commercial Gate Opener --
$1,196.89
Add To Cart View Cart
L. A. Ornamental & Rack Corp
3708 NW 82nd Street
Miami, Florida 33147
Phone: 305-696-0419
Fax: 305-696-0461
SCROLL DOWN TO VIEW COMPLETE SELECTION OF
RAMSET GATE OPENERS KITS AND ACCESSORIES
Ram 300 gate Openers kit 1
Include:
•Ram 300 gate operator
•Multi-Code Receiver Model 109950 dual
frequency 300/310 MHz
•Two Multi Code Remote Control model
308911 1-Button

Ramset 300 Gate Opener kit-- $1369.7

Ram 300 gate Openers kit 2
Include:
•Ram 300 gate operator
•Multi-Code Receiver Model 109950
•Two Multi Code Remote Control model
308911 1-Button
•BFT Photo Cell / Photo Eye with Reflector

Ramset 300 Gate Opener kit-- $1476.8

Ram 300 gate Openers kit 3
Include:
•Ram 300 gate operator
•Multi-Code Receiver Model 109950
•Two Multi Code Remote Control model
308911 1-Button
•BFT Photo Cell / Photo Eye with Reflector
•EMX CarSense 202 Slim Outdoor Buried
Driveway Sensor 50ft

Ramset 300 Gate Opener kit-- $1621.75

Ram 300 gate Openers kit 4
Include:
•Ram 300 gate operator
•Multi-Code Receiver Model 109950
•Two Multi Code Remote Control model
308911 1-Button
•BFT Photo Cell / Photo Eye with Reflector
•EMX CarSense 202 Slim Outdoor Buried
Driveway Sensor 50ft
•Wireless Keypad DOLKWP300318  300/318
MHz

Ramset 300 Gate Opener kit-- $1686.75

Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp.  All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying,
or otherwise without prior written consent of L. A. Ornamental & Rack Corp.
3708 NW 82nd Street  Miami  Florida  33147, Office: 305-696-0419  Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com
Multi-Code Receiver Model 109950 dual
frequency 300/310 MHz
Features:
*Operates on 12-24 volts AC or DC power
*One channel
*Whip antenna
*3-foot antenna coax and bulkhead connector
*1,024 codes
*RF frequency:300 or 310 MHz (jumper selectable)
*3.625" W x 5.25" H x 1.5" D
*Order number: MCS109950
*Multi-Code 1-channel 12-24V Gate Receiver
Model Number: 109950 -- $54.00
Multi-Code 308911 1-Channel Visor Transmitter
Features •Compatible with 300 MHz Multi-Code receivers
*Supplied with visor clip
*Powered by 9-volt battery
*Easy access to battery and coding switch
*1,024 codes
*RF frequency: 300 MHz
*3.75" W x 2.5" H x 0.875" D
*Order number: MCS308911
Multicode 308911: 1-channel Visor Transmitter - 300 MHz --
American Access System Advantage DKE 26-100L
AdvantageDKE line of digital keyless entry offers
post surface mount configurations,is housed in
heavy metal, powder coated enclosures with
stainless steel faceplates. Stand alone and have
100 fully programmable, four digit codes.
Features
*100 programmable four digit codes
*Programmable Personal Master Code
*Programmable Latch / Unlatch Code
*Night Light
*Variable relay output time: 1 – 9 seconds
*Audible tone
*Non-volatile memory
*Power consumption: 25mA @ 24VAC
*Limited two year warranty
American Access System AdvantageDKE 26-100L
Digital Keyless Entry System Keypad $162.00
DOLKWP300318 - 300/318 MHz Dual Frequency Keypad
FEATURES:
*Wireless Keypad: 300 MHz (Compatible with Multicode® 10-
dip switch)  OR
*318 MHz 9-dip switch (Compatible with Allstar® 9931 and
Heddolf® P220 •Stainless steel faceplate
*Rubber back lit keys
*Hard wired or wireless
*User friendly coding
*Holds up to 99 individual 4-digit codes
*ABS housing
*Adjustable relay hold feature
*LED indicator
*Surface or Post mount

DOLKWP300318 - 300/318 MHz Dual Frequency Keypad-- $49.95
EMX CarSense 202 Slim Outdoor Buried Driveway
Sensor 50ft
Outdoor Buried Driveway Sensor Alarm Carsense
202 Slim Features • Sensing probe is buried in the
ground so it is not noticed by a potential intruder
or vandals. • Has wide power supply options and
it can be ordered in 9 V to 35 V AC or DC. The low
current consumption of 1.5 mA in standby and 15
mA activated make it an excellent choice for solar
power applications.
EMX CarSense 202 Slim Outdoor Buried Driveway
Sensor 50ft -- $144.95
EMX Loop detectors HAR-11 Pin Harness
11 pin detector harness for use with our loop detectors
and CarSense 101.

EMX Loop detectors HAR-11 Pin Harness -- $14.00
Aluminum Standard GooseNeck Pedestal  in 3
colors Aluminium goose neck Curb mount The
Model GNC-1 Curb Mount Gooseneck is used for
easy installation of keypads, telephone entry
systems, and other access control products.
Features Curb mount configuration Rugged,
weather resistant, powder coated rolled
Aluminum construction Universal bolt pattern on
base plate and faceplate fits all manufacturer's
products Aluminum Goose neck 5.25" W x 42" H x
15.5" D  $119.00
Bronze
Black
White
EMX Lite Preformed Loop 4x8

The Lite Preformed Loop Detector is a ready-to-use loop that
works with all  EMX loop detectors. This lightweight
preformed loop detector is suitable for saw cut, tar and
concrete installations. Inquire for special sizes and quotes.
Benefits include:
*Easy to install
*Electronic lightning protection
*Rugged and flexible TPE tubing
EMX Preformed Loop 4x8 $99.00
Allen Bradley 60-2728 Reflective Photo Eye

Allen Bradley 60-2728 retro-reflective photo
eyes, 12VDC/24VAC/DC NEMA 3,4,4X,6P,1, 30'
maximum detection range
Reflective photo eye
•3'' diameter reflector
•12-24 VDC or 24 VAC
•30' sensing distance
•UL325 Compliant
Allen Bradley 60-2728 Reflective Photo Eye
$179.00
EMX MVP D-TEK loop detector 9V to 220V AC or DC
The EMX MVP D-TEK loop detector is 9V to 220V AC or DC and
is designed to be a universal voltage loop detector. The MVP
D-TEK solves the problem of not knowing which voltage to
have for your installation.
Benefits include:
Universal voltage
Reduced inventory costs
Operates in both fail safe and fail secure modes
Power 9 VDC to 240VAC
EMX D-TEK MVP Multi Voltage Power Universal Loop Detector
-- $109.95
BFT "POLARIZED" / Retro-reflective Photocell
Specifications:
Polarized Sensor
Red infrared led element
IP-66 water proof/cable gland
PMMA upper casing, anti fog/dew/rain
Round shape reflector-Dia.:80mm
Input volt: AC/DC 12-250V non polarity
Twin colorsled indicator for beam alignment
Tamper switches included
Sensing range 35ft.
BFT Photo Cell / Photo Eye with Reflector --
$119.00
1BX Single Button Exterior Control (Metal)
Fully Guarded, exterior.
-NEMA 4
-Momentary Contact
-One Button Control
-Dimensions: H=4-3/8", W=4-1/8", D=2-5/8
"Push Button Station - NEMA 1BX, Exterior Control Station, 1
Button, Surface Mount" $39.95
Below find the basic kit advisories, if you need help in finding other items to add to our kit selection or want to make any changes let us know. Thank you for stoping by.
