RamSet 3000 Residential Swing Gate Openers -
Ram Set 3000 Swing Gate Operators
RamSet Residential Swing Gate Opener Automatic Electric Electronic Opener Operator
GENERAL SPECIFICATIONS:
Ram 3000 1/2 Hp, 120VAC gate operator
Max Gate Size 22'
Max Gate Weight 800 lbs.
Motor Continuous duty. 1/2 Hp, 120VAC,
50/60 hz Emergency Release Hand Lever
Release
Power Inverter
Dimensions H:28 1/2 - L:23" - W:18"
Travel Speed 90 degrees in 20 seconds

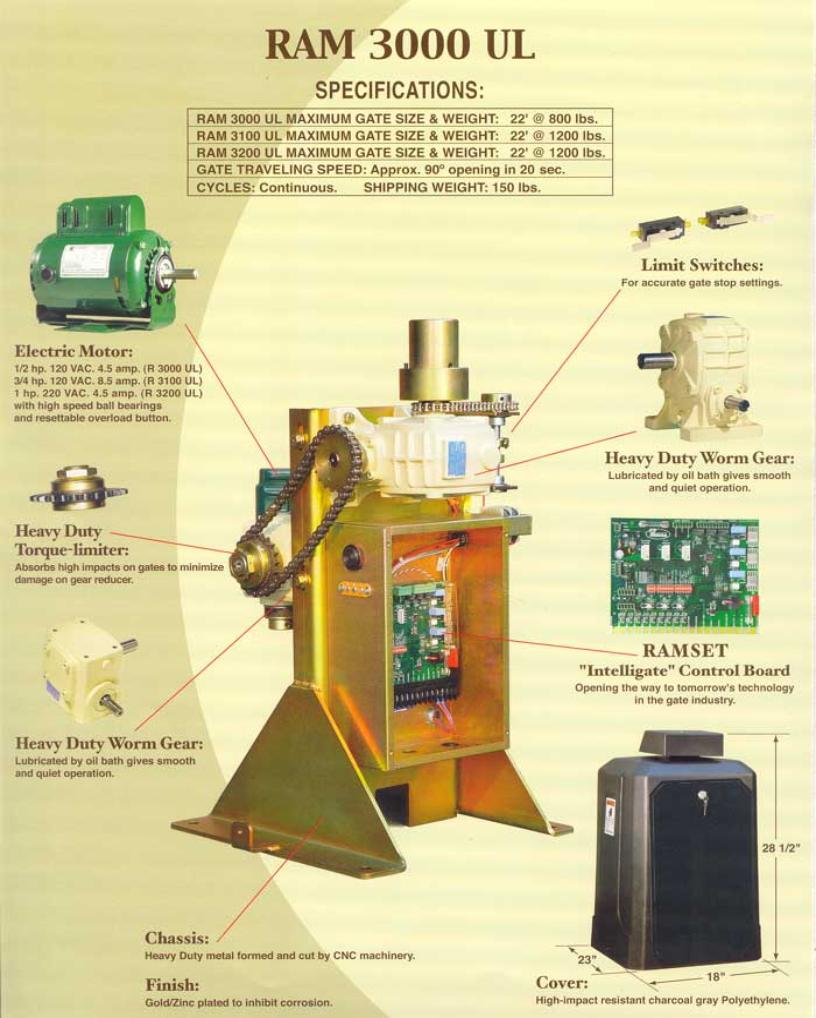

Ramset Model 3000 UL 1/2 HP Swing Gate
Operator
• Max Gate Capacity 800 lbs. /22' length
• Max Operating Speed 20 seconds per 90°
• Motor: continuous duty 1/2 Hp
• Emergency hand leaver to release
• Dimensions: H:28 1/2 - L:23" - W:18"
• Power 120 VAC, 4.5 amp. UL 325 listed
• Shipping Weight: 150-lbs.
Ramset 3000 Gate Operators
GENERAL SPECIFICATIONS:
Max Gate Size  22'
Max Gate Weight  800 lbs.
Motor  Continuous duty. 1/2 Hp, 120VAC, 50/60 hz
Emergency Release  Hand Lever Release, Power Inverter
Dimensions  H:28 1/2 - L:23" - W:18"
Travel Speed  90 degrees in 20 seconds

RamSet 3000 Swing Gate Openers
Electronic Features
Control Board: easy to configure solid state board with features such as L.E.D. readouts to indicate status of operator at all times
Electronic Reversing Device (ERD): two separate adjustments for reversing when encountering obstruction during opening or closing; reverses for
1 second and stops
Audio Alarm: audio alarm will sound for approximately six minutes, but only when the gate hits an obstruction twice; input to reset alarm included
Automatic Timer: can be set from 0 to 60 seconds
Maximum Running Timer: motor shuts off after 60 seconds
Master/Slave:  Included five wire connection plug to synchronize movement between two gates
Electronic Inputs: for radio receiver, fire department box, numeric key pad, metal detector, center loop, telephone entry system, three button
station, photo cell, safety edge and magnetic lock
