Ramset 100 Slide Gate Opener / Operator
Max Gate Size 20'
Max Gate Weight 700 lbs.
Motor Continuous duty. 1/2 Hp, 120VAC, 50/60 hz
Emergency Release Foot pedal Release, Power Inverter
Dimensions H:22" - L:14 1/2" - W:15" Travel Speed 1' Per
Second
The Ram 100 is perfect for both residential and light
duty commercial applications.
RamSet 100 Residential Slide Gate Opener Ram
Set 100 Sliding Gate Operator

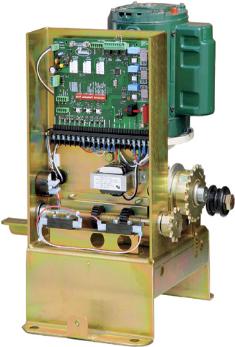

Heavy Residential Light Commercial Sliding Gate Opener Slide Operator
Ramset 100
For Ram 50 1/2 Hp, 120VAC slide gate operator.
GENERAL SPECIFICATIONS:
Max Gate Size 20'
Max Gate Weight  700 lbs.
Motor  Continuous duty. 1/2 Hp, 120VAC, 50/60 hz
Emergency Release  Foot pedal Release, Power Inverter
Dimensions  H:22" - L:14 1/2" - W:15"
Travel Speed  1' Per Second

Electronic Features
Control Board:
easy to configure solid state board with features such as L.E.D. readouts to indicate status of operator at all times
Electronic Reversing Device (ERD):
two separate adjustments for reversing when encountering obstruction during opening or closing; reverses for 1 second and stops
Audio Alarm:
audio alarm will sound for approximately six minutes, but only when the gate hits an obstruction twice; input to reset alarm included
Automatic Timer:
can be set from 0 to 60 seconds
Maximum Running Timer:
motor shuts off after 60 seconds
Master/Slave:
included five wire connection to synchronize movement between two gates
Electronic Inputs:
for radio receiver, fire department box, numeric key pad, metal detector, center loop, telephone entry system, three button station, photo cell,
safety edge and magnetic lock
