Ramset 1000 Residential Gate Openers Commercial Sliding Gate Operator

M ANUAL

RamSet 1000 Residential Slide Gate Opener Ram Set 1000 Sliding Gate Operator

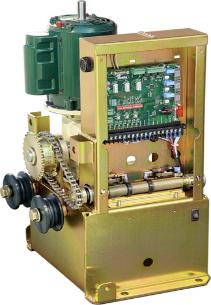

Heavy Residential Light Commercial Sliding Gate Opener Slide Operator

Specs detail sheet of the Ramset 1000 Slide Gate Operator

Control Panel, Intelligate Control Board use in all newer Ramset Gate Operators

Ramset 1000 Sliding Commercial Gate Operators GENERAL SPECIFICATIONS:
Max Gate Size 40'
Max Gate Weight 1000 lbs.
Motor Continuous duty. 1/2 Hp, 120VAC, 50/60 hz
Emergency Release Footpedal Release, Battery Backup System, Power Inverter
Dimensions H:26" - L:14 1/2" - W:16 1/2"
Travel Speed 1' Per Second

Ramset 1000 Sliding Residential Gate Openers ELECTRONIC SPECIFICATIONS
Control Board: A state-of-the-art, microprocessor controlled, surface mount pcb with features such as:
Electronic Reversing Device (ERD): Automatically adjusts to the size of the gate.
Automatic Timer: can be set from 0 to 60 seconds.
Master/Slave: Three wires synchronize bi-parting gates.
Electronic Inputs: for radio receiver, fire department box, numeric key pad, metal detector, center loop,
telephone entry system, three button station, photo cell, safety edge and magnetic lock.

TO VIEW COMPLETE SELECTION OF RAMSET 1000 GATE OPENERS
KITS AND ACCESSORIES SCROLL DOWN - Click on Image to enlarge

Welcome to: GATESNFENCES.COM

Designed to satisfy the need for gate operators in high traffic areas, such as residential gated communities, public storages, industrial parks and
government facilities. In September 1994, Ramset Automatic Gate Systems Inc., began supplying a new generation of reliable vehicular gate operators.
The Ramset series of slide and swing gate operators are designed to satisfy the need for gate operators in high traffic installations, such as residential
gated communities, public storage, industrial parks and U.S. government facilities.

Ramset 1000 UL 1/2 HP Slide Gate Operator
Intelligent Control Board: a reliable way to open and close gates continuously
Surge Protection: gas discharge filter and MOV increases protection against surges and lightning strikes
Electronic Reversing Device (ERD): innovative system that monitors current fluctuation; self-adjusting and reverses when obstruction is sensed
Electronic Inputs: phone entry systems, three push button stations, radio receivers, fire boxes, digital key pads, loop detectors, photo cells, etc.
Automatic Timer: gate closes automatically after desired amount of time (0, 5, 10, 15, 30, 45 or 60 seconds)

Ramset Gate Opener 1000 - Sliding Security Gate
Opener - Ramset Slide Gate Operator -- $1,174.12

Keypads & Telephone Entry Systems

Gate Operator Circuit Boards

Remote Controls

Loop Detectors & Safety Equipment

Recei vers

L. A. Ornamental & Rack Corp
3708 NW 82nd Street
Miami, Florida 33147
Phone: 305-696-0419
Fax: 305-696-0461

Back to Main Ramset Gate Operators Page

Ramset 1000 for Heady Residential or Light Commercial Gates Sliding Driveway Gates up to 1000lbs and 40 feet long

Sliding Gate Openers kit include receiver and 2 remotes

	Ram 1000 gate Openers kit 1 Include: Ram 1000 gate operator Multi-Code Receiver Model 109950 Two Multi Code Remote Control model 308911 1-Button Ramset 1000 Gate Opener kit-- $1293.38

complete openers kit includes receiver, remote control, safety photo eye


	Ram 1000 gate Openers kit 2 Include: Ram 1000 gate operator Multi-Code Receiver Model 109950 Two Multi Code Remote Control model 308911 1-Button Photo Cell Ramset 1000 Gate Opener kit-- $1400.48

Complte Kit - Ramset Gate Operator Kit includes Receiver, Remote Control,Safety Photo Cell,Exit Wand Sensor


	Ram 1000 gate Openers kit 3 Include: Ram 1000 gate operator Multi-Code Receiver Model 109950 Two Multi Code Remote Control model 308911 1-Button Photo Cell Exit wand Ramset 1000 Gate Opener kit-- $1530.94

Convinience Package Kit Wireless Keypad, Exit Device, Safety Eyes, Receiver, Remote Controls


Ram 1000 gate Openers kit 4 Include: Ram 1000 gate operator Multi-Code Receiver Model 109950 Two Multi Code Remote Control model 308911 1-Button Exit wand Keypad DOLKWP300318 Ramset 1000 Gate Opener kit-- $1595.94

SPECS

	Ram 1000 gate Openers kit 1 Include: Ram 1000 gate operator Multi-Code Receiver Model 109950 Two Multi Code Remote Control model 308911 1-Button Ramset 1000 Gate Opener kit-- $1293.38

Ram 1000 gate Openers kit 2C Include: •Ram 1000 1/2HP gate operator •Multi-Code Receiver Model 109950 dual frequency 300/310 MHz •Two Multi Code Remote Control model 308911 1-Button •Allen Bradley 60-2728 Reflective Photo Eye 30' sensing distance Ramset 1000 Gate Opener kit-- $1,454.48

Ram 1000 gate Openers kit 3C Include: •Ram 1000 1/2HP gate operator •Multi-Code Receiver Model 109950 dual frequency 300/310 MHz •Two Multi Code Remote Control model 308911 1-Button •Allen Bradley 60-2728 Reflective Photo Eye 30' sensing distance •EMX Lite Preformed Loop 4x8 •EMX MVP D-TEK loop detector 9V to 220V AC or DC •EMX Loop detectors HAR-11 Pin Harness Ramset 1000 Gate Opener kit-- $1,650.20

Ram 1000 gate Openers kit 4C Include: •Ram 1000 1/2HP gate operator •Multi-Code Receiver Model 109950 dual frequency 300/310 MHz •Two Multi Code Remote Control model 308911 1-Button •Allen Bradley 60-2728 Reflective Photo Eye 30' sensing distance •EMX Lite Preformed Loop 4x8 •EMX MVP D-TEK loop detector 9V to 220V AC or DC •EMX Loop detectors HAR-11 Pin Harness •American Access System AdvantageDKE 26- 100L & 26-100sg Ramset 1000 Gate Opener kit-- $1,796.03

For Main Control
Board Click Here:

We have set up these residential Ramset 1000
Residential Gate Openers kit for your convenience

Since the Ramset 1000 swing Gate Operators can be on light
Commercial application we have created kits for your convenience

Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying,
or otherwise without prior written consent of L. A. Ornamental & Rack Corp.
3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com

	Multi-Code Receiver Model 109950 dual frequency 300/310 MHz Features: Operates on 12-24 volts AC or DC power One channel Whip antenna 3-foot antenna coax and bulkhead connector 1,024 codes RF frequency:300 or 310 MHz (jumper selectable) 3.625" W x 5.25" H x 1.5" D Order number: MCS109950 Multi-Code 1-channel 12-24V Gate Receiver Model Number: 109950 -- $54.00*

		Multi-Code 308911 1-Channel Visor Transmitter Features •Compatible with 300 MHz Multi-Code receivers Supplied with visor clip Powered by 9-volt battery Easy access to battery and coding switch 1,024 codes RF frequency: 300 MHz 3.75" W x 2.5" H x 0.875" D *Order number: MCS308911 Multicode 308911: 1-channel Visor Transmitter - 300 MHz --

	American Access System Advantage DKE 26-100L AdvantageDKE line of digital keyless entry offers post surface mount configurations,is housed in heavy metal, powder coated enclosures with stainless steel faceplates. Stand alone and have 100 fully programmable, four digit codes. Features 100 programmable four digit codes Programmable Personal Master Code Programmable Latch / Unlatch Code Night Light Variable relay output time: 1 – 9 seconds Audible tone Non-volatile memory Power consumption: 25mA @ 24VAC *Limited two year warranty American Access System AdvantageDKE 26-100L Digital Keyless Entry System Keypad $162.00


DOLKWP300318 - 300/318 MHz Dual Frequency Keypad FEATURES: Wireless Keypad: 300 MHz (Compatible with Multicode® 10- dip switch) OR 318 MHz 9-dip switch (Compatible with Allstar® 9931 and Heddolf® P220 •Stainless steel faceplate Rubber back lit keys Hard wired or wireless User friendly coding Holds up to 99 individual 4-digit codes ABS housing Adjustable relay hold feature LED indicator Surface or Post mount DOLKWP300318 - 300/318 MHz Dual Frequency Keypad-- $49.95

EMX CarSense 202 Slim Outdoor Buried Driveway Sensor 50ft Outdoor Buried Driveway Sensor Alarm Carsense 202 Slim Features • Sensing probe is buried in the ground so it is not noticed by a potential intruder or vandals. • Has wide power supply options and it can be ordered in 9 V to 35 V AC or DC. The low current consumption of 1.5 mA in standby and 15 mA activated make it an excellent choice for solar power applications. EMX CarSense 202 Slim Outdoor Buried Driveway Sensor 50ft -- $144.95

EMX Loop detectors HAR-11 Pin Harness 11 pin detector harness for use with our loop detectors and CarSense 101. EMX Loop detectors HAR-11 Pin Harness -- $14.00

Aluminum Standard GooseNeck Pedestal in 3
colors Aluminium goose neck Curb mount The
Model GNC-1 Curb Mount Gooseneck is used for
easy installation of keypads, telephone entry
systems, and other access control products.
Features Curb mount configuration Rugged,
weather resistant, powder coated rolled
Aluminum construction Universal bolt pattern on
base plate and faceplate fits all manufacturer's
products Aluminum Goose neck 5.25" W x 42" H x
15.5" D $119.00

Bronze

Black

White


EMX Lite Preformed Loop 4x8 The Lite Preformed Loop Detector is a ready-to-use loop that works with all EMX loop detectors. This lightweight preformed loop detector is suitable for saw cut, tar and concrete installations. Inquire for special sizes and quotes. Benefits include: Easy to install Electronic lightning protection Rugged and flexible TPE tubing EMX Preformed Loop 4x8 $99.00*

	Allen Bradley 60-2728 Reflective Photo Eye Allen Bradley 60-2728 retro-reflective photo eyes, 12VDC/24VAC/DC NEMA 3,4,4X,6P,1, 30' maximum detection range Reflective photo eye •3'' diameter reflector •12-24 VDC or 24 VAC •30' sensing distance •UL325 Compliant Allen Bradley 60-2728 Reflective Photo Eye $179.00

EMX MVP D-TEK loop detector 9V to 220V AC or DC The EMX MVP D-TEK loop detector is 9V to 220V AC or DC and is designed to be a universal voltage loop detector. The MVP D-TEK solves the problem of not knowing which voltage to have for your installation. Benefits include: Universal voltage Reduced inventory costs Operates in both fail safe and fail secure modes Power 9 VDC to 240VAC EMX D-TEK MVP Multi Voltage Power Universal Loop Detector -- $109.95

	BFT "POLARIZED" / Retro-reflective Photocell Specifications: Polarized Sensor Red infrared led element IP-66 water proof/cable gland PMMA upper casing, anti fog/dew/rain Round shape reflector-Dia.:80mm Input volt: AC/DC 12-250V non polarity Twin colorsled indicator for beam alignment Tamper switches included Sensing range 35ft. BFT Photo Cell / Photo Eye with Reflector -- $119.00

1BX Single Button Exterior Control (Metal) Fully Guarded, exterior. -NEMA 4 -Momentary Contact -One Button Control -Dimensions: H=4-3/8", W=4-1/8", D=2-5/8 "Push Button Station - NEMA 1BX, Exterior Control Station, 1 Button, Surface Mount" $39.95

Below find the basic kit advisories, if you need help in finding other items to add to our kit selection or want to make any changes let us know. Thank you for stoping by.
