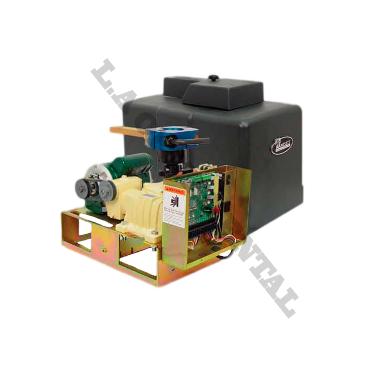

| RamSet 30 Residential Swing Gate Opener - RamSet 30 Light Duty Gate Operator Automatic |
| When a low profile gate operator is needed, the RAM 302 is the perfect choice. The 1/2 horsepower motor will swing gates as heavy as 800 pounds. The RAM 302 also includes our Whisper Quiet motor operation. Specifications: *maximum gate size & Weight: 18’ @ 600 lbs *gate traveling speed: Approx 90° opening in 16 sec *motor : 1/2 hp, 120 VAC, 4.5 amp, 1625 rpm *cycles: Continuous *operating temperature : -10° F to 160° F *heavy duty worm gear: Lubricated in an oil bath for smooth and quiet operation. *chassis: 3/16” hot rolled steel *finish: Gold/Zinc plated to inhibit corrosion *power failure release: Hand lever release *overall dimensions: H 16½” L 23” W 13½” *shipping weight: 100 lbs *Foot Pedal Release *Emergency Release: This mechanism disengages the gate from the operator to allow easy manual opening and closing of the gate duting power outages and emergencies. |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| SCROLL DOWN TO VIEW COMPLETE SELECTION OF RAMSET GATE OPENERS KITS AND ACCESSORIES |
Welcome to: GATESNFENCES.COM
| L. A. Ornamental & Rack Corp 3708 NW 82nd Street Miami, Florida 33147 Phone: 305-696-0419 Fax: 305-696-0461 |
Designed to satisfy the need for gate operators in high traffic areas, such as residential gated communities, public storages, industrial parks and
government facilities. In September 1994, Ramset Automatic Gate Systems Inc., began supplying a new generation of reliable vehicular gate operators.
The Ramset series of slide and swing gate operators are designed to satisfy the need for gate operators in high traffic installations, such as residential
gated communities, public storage, industrial parks and U.S. government facilities.
government facilities. In September 1994, Ramset Automatic Gate Systems Inc., began supplying a new generation of reliable vehicular gate operators.
The Ramset series of slide and swing gate operators are designed to satisfy the need for gate operators in high traffic installations, such as residential
gated communities, public storage, industrial parks and U.S. government facilities.
|
|
Specs
| |||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Features Intelligate Control Board: Ramset's "Intelligate" control board works with all of Ramset's slide, swing and overhead vehicular gate operators. It is controlled by a programmable microprocessor that reads and precisely executes all functions of the control board. The control board is powered by a separate mounted 24VAC transformer. This allows no necessary board modifications between 110VAC and 220VAC single-phase applications. The "Intelligate" features: •Reprogrammable microprocessor: Allows control boards to be updated. •LED diagnostics: LED (red lights) show the status of the control board at all times. •3-Button station: Easy connection plug (included) for 3-button stations. •Status relays: Triggers relays when the gate is fully open or fully closed. •Plug-in loop detectors: Allows ILD-24 plug-in loop detectors (sold separately) to be used, eliminating messy wire connections. •The control board is powered by a 24VAC transformer that is INCLUDED. This allows no necessary board modifications between 110VAC and 220VAC single-phase applications. •The "Intelligates" functions include: •Automatic close timer: Automatically closes the gate after 0 - 60 seconds after the gate fully opens and all of the safety devices are cleared. •Pre warning: Adds a 3 second delay before the gate moves in any direction. During this 3 second delay the PREWARN relay maintains a closed contact. This allows an alarm or light to be connected to warn when the gate is about to move. •Constant warning: Triggers the PREWARN relay to maintain a closed contact while gate is in motions. This allows an alarm or light to be connected to show when the gate is moving. •Secure close: When power is lost, then regained, the control board checks the status of the gate. If the gate is open and the safety devices are cleared, the gate will automatically close. •Radio cycle: Allows the gate to be stopped at any time with the remote control. Then reverse with another command. •One pass: Closes the gate immediately after the safety devices are cleared. If another car triggers a safety device the gate will stop but not open until a valid open signal is received. •Open & close delay: Adds a 1 second delay before the gate opens and/or closes. •Left or Right: With a flip of a switch, the logic of the control board changes from a left hand operation to a right hand operation. •Master/Slave: Synchronizes two gates to work together in a bi-parting installation. •ERD (Electronic Reversing Devices): Automatically adjusts the sensitivity of the operator to the size of the gate. |
