DC Motor – soft start/stop operation Reduces the stress and shock to the gate system by slowly ramping up gate speed
on open and ramping down gate speed on close. This type of operation promotes longer gate and operator life and
Battery Backup - Provides complete operation of gate and all DC control devices and sensing devices in the event of
power loss. 12V 7AH battery
standard, upgrade to 2nd 7AH battery or 33AH battery for extended battery backup.
Electronic Limit System - Simple-to-set electronic limit system allows limit setting with just the push of a button.
Electronic Braking System - Innovative brake design keeps brake engaged with or without power when the gate is in
closed position. Only open input or
selectable auto open feature will override braking system. Operator uses electromotive technology to power brake
upon power loss/battery depletion or in solar applications.
External Manual Disconnect Switch - Simply press manual disconnect switch to push gate open. No need to drop drive
chain to manually open gate. Operator retains open/close limit setting when resuming normal operation. No special tools
On-Board Receiver - Exclusive from Chamberlain, a single remote control solution for gate access and additional access
points. Ability to add up to 50
Inherent Obstruction Sensing - This unit’s internal obstruction sensing system offers force adjustment for the open and
closed directions. If the
gate strikes an obstruction, a closing gate will reverse to open and an opening gate will stop.
External Obstruction Sensing - To meet UL325 safety standards, secondary entrapment devices must be added. Inputs
are provided to simplify adding
secondary non-contact or contact sensors such as photo-eyes and edge devices. Installer will be able to recommend
best secondary entrapment device for the application.
Clear Impact Resistant Poly Carbonate Control Box - Cover Allows clear view to key diagnostic LEDs, speeds
troubleshooting, and saves time and money. Includes fuse holders.
Control Inputs - Control inputs allow for the connection of external devices. Accessories include; loop detectors,
LiftMaster® photo eyes, free exit probe, wireless access control equipment, and solenoid lock.
LED Indicators - Operator input, status and diagnostic LEDs simplify setup and troubleshooting.
Operator can be solar powered by adding optional solar panel. Evercharge® Power Management System delivers power
when needed most for operating a gate while conserving power at all other times for best solar performance. Solar gate
operators and accessories qualify for 30% tax credit through 2016.
The Protector System® Safety Sensors 50-220** Prevents the gate from closing onto people, pets or objects. Includes
**Only 50-220 photo eyes go into power save mode and minimize powerdraw when gate is not opening
Low Power draw safety sensors and accessories recommended for best performance on battery backup
• Cycles per day - 120
• Gates up to 800 lbs. and 25 ft. in length
Battery Backup Operation
(16 ft. / 650 lbs. slide gate. Stand alone system)
1 - 7ah 40
2 - 7ah 100
1 - 33ah 275

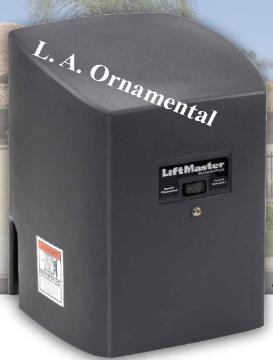

|LIFTMASTER RSL12V DC-Powered Slide Gate Operator With Built- In Battery
Our most advanced residential pad mounted slide gate operator. Features a
powerful DC motor with soft start/stop operation for quiet and reliable
performance and rated for gates up to 800 lbs. and 25 ft. in length and cycling
up to 120 times per day. The RSL also utilizes the Evercharge® Power
Management System to provide industry leading power efficiency maximizing
cycles when running on battery backup or optional solar power.
Universal controller with multiple inputs
Timer-to-close: 0-180 seconds
Dual gate compatible
Right- or left-handed operation
Ability to auto-open or failsecure when power fails/battery depletion
Heater model available
