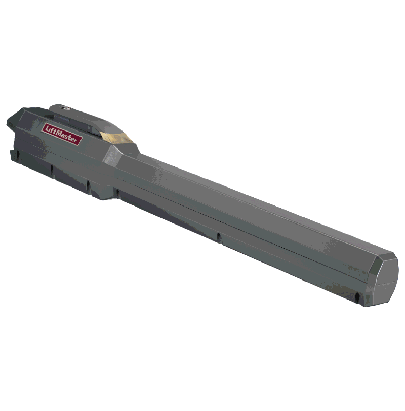

|LiftMaster LA500-1 Residential/Light Commercial DC Swing Gate Operator
The LA500 has a powerful 24VDC continuous-duty motor. The LA500 is capable of operating gates up to 18 ft. long or weighing up to
1,200 lbs, and is compact enough to fit where pad mount operators do not.
The LA500 has a powerful 24VDC continuous-duty motor, which provides exceptional starting torque and features soft start/stop
operation. This promotes longer gate and operator life, as well as dependable performance. The LA500 is capable of operating gates up
to 18 ft. long or weighing up to 1,200 lbs, and is compact enough to fit where pad mount operators do not.
An on-board radio receiver is included with the LA500. It holds up to 50 remotes and is compatible with HomeLink® version 4 and higher.
Exclusive from LiftMaster, this on-board radio receiver provides a single remote control solution for gates and additional access
•Power: 110V or 220V Single Phase
•Operator duty rating: 300 cycles per day
•Gate travel speed: 90-degree opening in 15-17 seconds
•Commercial duty aluminum die cast housing
•Weight: 140 lbs.
•Battery Backup System provides up to 7 days or 500 cycles on battery backup; powers safety and ancillary devices
•Power Management System protects battery life
•Security+ 2.0™ technology virtually eliminates interference; receiver holds up to 50 remotes; HomeLink® compatible
•Simple-to-set electronic limit system maintains accurate gate position throughout gate travel
•Keyed manual disconnect
•Plug-in loop detectors
•Programmable auxiliary relays
•External obstruction sensing
•Advanced traffic management control includes Quick-Close and Anti-Tailgating functions
•Bi-part delay: choose from Standard Operation or Synchronized Close
•Solar ready; home and property owners can qualify for up to a 30% tax credit
•2 residential warranty
|LiftMaster LA500-1 Residential Light Commercial 24V DC Battery Back Up Swing Gate Operator
