|Diablo Loop Detector DML-9LP Kit ( 50 feet )
OR ( 100 feet ) -- Exit Device - Probe & Detector
|Diablo Controls DML- 9LP Probe Kit Vehicle Loop Detector
This probe kit, as with all of our probe/mini-loop kits work as "free exit - pulse only devises". The DML-9LP is a plug and play device and requires no settings. It also operates as a
low current draw device and runs on 10 to 30 volts AC or DC.
|Loop detectors and loops may be used for a variety of applications. Vehicle loop detectors are frequently used to provide
free entrance and/or free exit for traffic. Wire loop detector directly to gate operator or overhead door, connect to buried
loop, and allow larger metal objects which drive over loop to trigger the gate or door to open, or close. Loops remain
practically invisible, buried beneath gravel, asphalt, or concrete driveways. Vehicle loop detectors are a safe and reliable
way of controlling an assortment of equipment. Safety Devices for Automated Gates and Doors: Vehicle loops and loop
detectors are also frequently used as safety devices. Loop detectors are wired directly to the gate operator or overhead
door. Loops are buried directly under the automated gate or door. When a vehicle, or other large metal device, is present,
a signal is sent preventing the automated gate or door from moving. Use vehicle loop detectors and loops in conjunction
with other safety devices

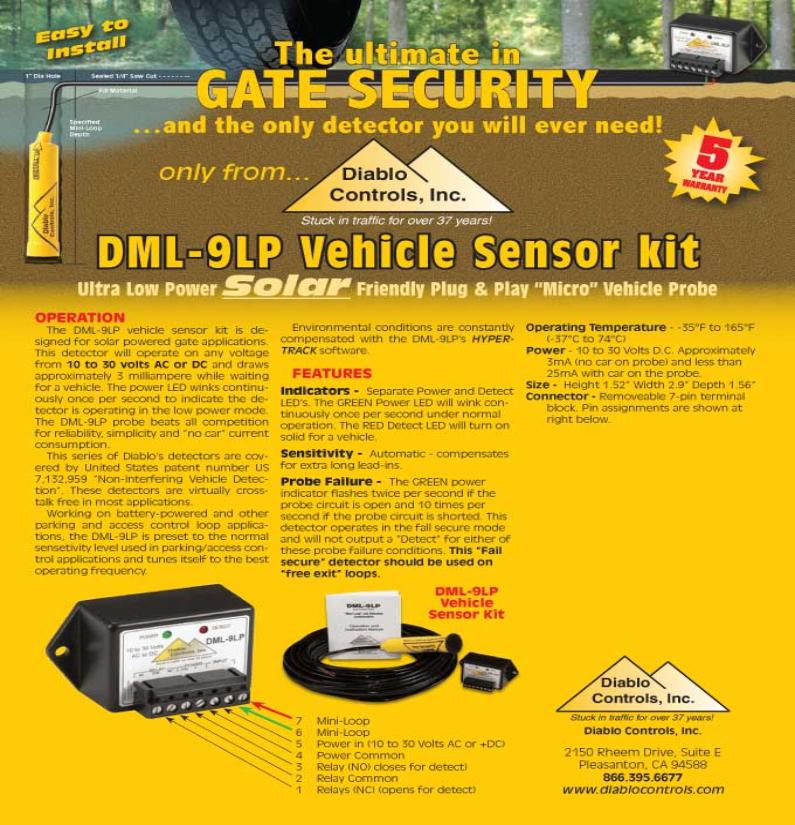

|The Diablo DML-9LP vehicle sensor kit is designed for solar powered gate applications. This detector will operate on any voltage from 10 to 30 volts AC or DC and draws
approximately 3 milliampere while waiting for a vehicle. The power LED winks continuously once per second to indicate the detector is operating in the low power mode. The Diablo
DML-9LP probe beats all competition for reliability, simplicity and “no car” current consumption.
This series of Diablo loop detectors are covered by United States patent number US 7,132,959 “Non-Interfering Vehicle Detection”. These detectors are virtually crosstalk free in
Working on battery-powered and other parking and access control loop applications, the Diablo DML-9LP is preset to the normal sensitivity level used in parking/access control
applications and tunes itself to the best operating frequency. Environmental conditions are constantly compensated with the Diablo DML-9LP’s HYPERTRACK software.
Indicators - Separate Power and Detect LED’s. The GREEN Power LED will wink continuously once per second under normal operation. The RED Detect LED will turn on solid for a
Sensitivity - Automatic - compensates for extra long lead-ins.
Probe Failure - The GREEN power indicator flashes twice per second if the probe circuit is open and 10 times per second if the probe circuit is shorted. This detector operates in the
fall secure mode and will not output a “Detect” for either of these probe failure conditions. This “Fail secure” detector should be used on “free exit” loops.
Operating Temperature - -35°F to 165°F (-37°C to 74°C)
Power - 10 to 30 Volts D.C. Approximately 3mA (no car on probe) and less than 25mA with car on the probe.
Size - Height 1.52” Width 2.9” Depth 1.56”
