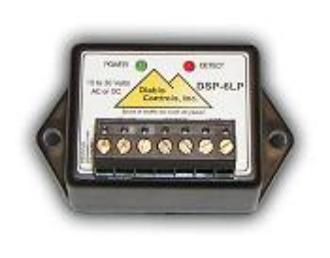

|Diablo Loop Detector DSP 6LP
|The DSP-6LP vehicle detector is designed for solar powered gate applications. This detector will operate
on any voltage from 10 to 30 Volts AC or DC and draws approximately 1 milliampere while waiting for a car.
The power LED winks continuously once per second to indicate the detector is operating in the low power
mode. The DSP-6LP detector beats all competition for reliability, simplicity, and “no car” current
This series of Diablo’s detectors are covered by United States patent number US 7,132,959 “Non-
Interfering Vehicle Detection”. These detectors are virtually crosstalk free in most applications.
Working on battery-powered and other parking and access control loop applications, the DSP-6LP is
preset to the normal sensitivity level used in parking/access control applications, and tunes itself to the
best operating frequency.
This micro-sized detector will automatically adjust its sensitivity level when used on different sized loops.
Environmental conditions are constantly compensated with the DSP-6LP ’s HYPERTRACK software.
Environmental conditions are constantly compensated with the DML-9LP’s HYPERTRACK software.
|Loop Size - Works on any in-ground inductive loop from 20 to 1200 mH.
Indicators - Separate Power and Detect LED’s. The green Power LED will wink continuously once per second under normal operation. The red Detect LED will turn on solid for a
Sensitivity - Automatic - compensates for large loops and large lead-ins.
Output Ratings - Single output, 1 amp relay at 30 VDC Resistive - The relay common, NO, and NC contacts are available.
Ordering Information – DSP-6LP standard version.
Power - 10 to 30 Volts AC or DC. Approximately 1 mA (no car and all loop sizes) and less than 25 mA with a car on the loop.
Size - Height: 1.52” Width: 2.9” Depth: 1.56”
Connector - Removable 7-pin terminal block. Pin assignments are shown below - from left to right:
1 - Relay (NC) (opens for detect)
2 - Relay Common
3 - Relay (NO) (closes for detect)
4 - Power Common
5 - Power in (10 to 30 Volts AC or +DC)
6 - Loop
7 - Loop
Operating Temperature -35°F to 165°F (-37°C to 74°C)
|Loop detectors and loops may be used for a variety of applications.
Vehicle loop detectors are frequently used to provide free entrance
and/or free exit for traffic. Wire loop detector directly to gate
operator or overhead door, connect to buried loop, and allow larger
metal objects which drive over loop to trigger the gate or door to
open, or close. Loops remain practically invisible, buried beneath
gravel, asphalt, or concrete driveways. Vehicle loop detectors are a
safe and reliable way of controlling an assortment of equipment.
Safety Devices for Automated Gates and Doors: Vehicle loops and
loop detectors are also frequently used as safety devices. Loop
detectors are wired directly to the gate operator or overhead door.
Loops are buried directly under the automated gate or door. When a
vehicle, or other large metal device, is present, a signal is sent
preventing the automated gate or door from moving. Use vehicle
loop detectors and loops in conjunction with other safety devices
|Our low power detector has been re-designed to be used on any
voltage and either polarity from 10 to 30 Volts AC or DC. This low
power vehicle detector is perfect for solar powered gate
installations. This detector beats all competition for current
consumption. Works on all gate and access control applications
that require extremely low current draw from a solar powered gate
installation. The 6LP detector is " fail-secure", and should be used
on free exit loops.
