| The OSCO APeX™ Controller is designed to work with all of Linear's OSCO brand gate operators, and to replace current circuit boards with a new design that is simpler and sleeker, while also integrating between the gate operator and the access control system. The new Linear OSCO APeX™ gate operator controller has been designed to operate with Linear's OSCO brand of slide, swing gate operators and barrier gate operators. It features on-board, low-voltage surge protection for lightning protection on all inputs. It also has plug-in loop detector capability (open, shadow/reset, reversing), as well as pluggable, European-style field wiring connectors. There are LED diagnostic lights and a built- in MegaCode radio that can program up to 40 handheld transmitters and two MGT gate edge transmitters, as well as an integrated three-button station (momentary contact: Open, Close, Stop). To simplify dual gate installation and operation, the APeX™ is networkable, and allows accessory devices to be wired to either machine in a dual gate application. The APeX™ controller also features automatically resetting fuses, and there are not dipswitches or potentiometers to set. It has a dual seven segment LED display for programming and diagnostics. The APeX™ controller will also bring soft-start/soft-stop capability to OSCO's line of commercial DC battery backup gate operators. The APeX™ controller meets all UL 325 requirements and is CUL listed. "The Linear OSCO APeX™ controller puts Linear/OSCO gate operators ahead of the competition in terms of diagnostics, aesthetics, and communications - features that offer a level of installer convenience and flexibility unprecedented in the industry", said Randy Baker, Linear's OSCO Product Line Manager "It easily integrates with both the gate operators and the access control systems, and offers a new level of simplicity for installers and users". The Linear OSCO APeX™ is currently available on the OSCO slide gate models (SLC, SLR and SLD) and swing gate models (SWC, SWR and SWD). Throughout 2008, the APeX™ controller will be introduced to the rest of the Linear/OSCO gate operator product line, including barrier gates (BGU, BGU-D, BGUS and SG), variable speed industrial swing gate operators (VS-GSWG), commercial/industrial slide gate operators (HSLG, GSLG-A), and variable speed industrial slide gate operators (VS-GSLG). |

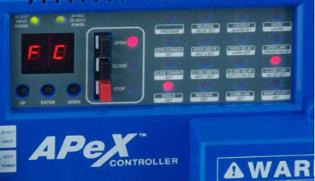

| OSCO New APEX Control Board Features: Enhanced Diagnostics Display Integrated Surge Protection and 3-buttton Plug-in Loop Detector Sockets Built-in Radio Receiver Accepts up to 40 Transmitters with individual delete capability 2 MGT Gate Edge Transmitters Wireless Keypad Removable Terminal Connectors Installer Friendly Labeling Program Interface No Potentiometers No Fuses to Change No Dip Switches to Set Absolute Over-current Setting Real-Time Status Indication All Gate Type Firmware Pre-Loaded |
| OSCO New APEX Control Board Features: Completely plugable design Easy-to-understand graphics Plug-in loop detectors No fuses, no potentiometers, no DS Enhanced LED diagnostic lights Single board design for 1PH AC Hybrid machine capability Built-in surge protection Capability for 2 assignable MGT's Accepts up to 40 Transmitters Individual transmitter delete function Absolute current sense adjustment w/real time monitoring Networked units - instead of master slave = added flexibility Dual gate stagger programmability standard Built-in charge regulator circuitry for DC and solar (No more DC charge board) Software control of alarm for added versatility and diagnostics PWM DC motor board Compatible w/current 3 phase and DC motor boards New manuals |

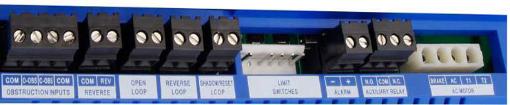

| OSCO New APEX Control Board Features: Low Voltage Input DC Accessory Power Out Obstruction Reset Button Networked Dual Gate Connection Single Button Input Open Only Input Fire Department Input External 3-Button Input Open Obstruction Close Obstruction Reversing Loop Connections Open Reverse Shadow Limit Switches Alarm Output Auxiliary Relay AC Motor Plug |
Operator Specialty Company.
OSCO satisfies the need for quality special application operators in the fencing,
parking, ornamental iron, and garage door industries. OSCO's product line has grown
from specialty door and gate operators, to a full line of swing and slide door and gate
operators, as well as parking barrier gates.
OSCO satisfies the need for quality special application operators in the fencing,
parking, ornamental iron, and garage door industries. OSCO's product line has grown
from specialty door and gate operators, to a full line of swing and slide door and gate
operators, as well as parking barrier gates.
| The APeX™ is currently available on the OSCO slide gate models (SLC, SLR and SLD) and swing gate models (SWC, SWR and SWD). Throughout 2008, the APeX™ controller will be introduced to the rest of the Linear/OSCO gate operator product line, including barrier gates (BGU, BGU-D, BGUS and SG), variable speed industrial swing gate operators (VS-GSWG), commercial/industrial slide gate operators (HSLG, GSLG-A), and variable speed industrial slide gate operators (VS-GSLG). |
