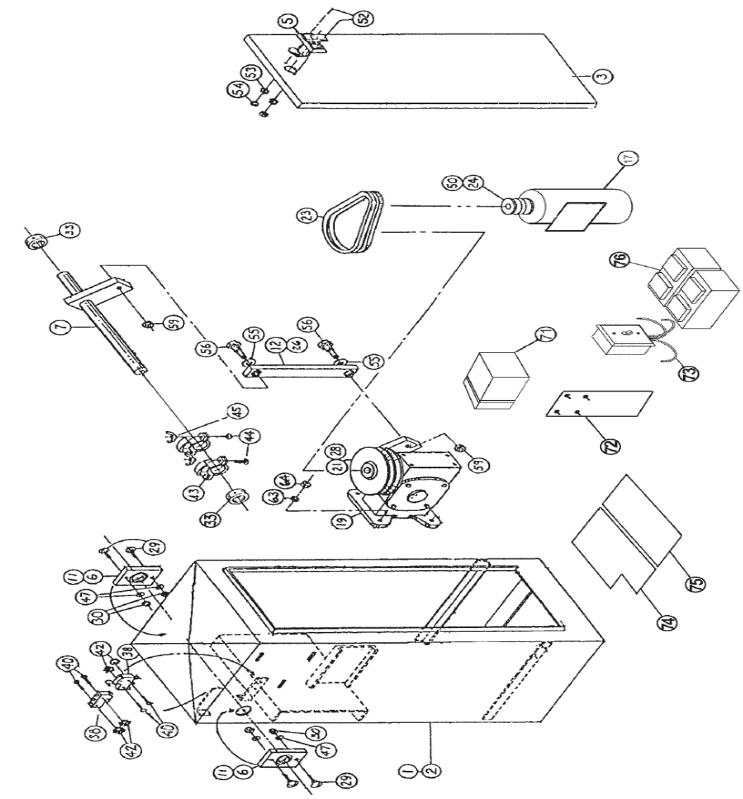

OSCO / Linear BGU-D Gate Barrier Openers - OSCO BGU-D   Exploded Parts View & Parts List
Welcome to: GATESNFENCES.COM
L. A. Ornamental & Rack Corp
3708 NW 82nd Street
Miami, Florida 33147
Office: 305-696-0419
Fax: 305-696-0461
Osco ( Operator Specialist Company) One of the nation's foremost manufacturers of
commercial and residential gate and door operating systems, OSCO provides quality
automatic openers for the fencing, parking, ornamental iron and garage door industries.
OSCO satisfies the need for quality special application operators in the fencing, parking,
ornamental iron, and garage door industries.
Back to Main OSCO Gate Operators Page
Keypads & Telephone Entry Systems
Gate Operator Circuit Boards
Remote Controls
Loop Detectors & Safety Equipment
Receivers
About Us  |   Contact Us   |   Our Policies   |   FAQ   |   Manufactures   |   Links   |
Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp.  All rights reserved. No part of this site can be reproduced in any form
or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp.
3708 NW 82nd Street  Miami  Florida  33147, Office: 305-696-0419  Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com
Item
 Description
 Part Number
 Price
 Price
1
2
 Enclosure without
Door
 2120-474*

3
 Louvered Door
Assembly with Lock
 2110-318*

5
 Lock Assembly
with Keys
 2220-008
 $21.83
6
 Bearing Block
Assembly Kit
 2110-746
 $39.14
7
 Drive Shaft
Assembly
 2110-170
 $65.25
8
 Gate Arm Flange
 2110-732
 $73.27
9
 Arm Attachment
Channel
 2100-1886

11
 Cutting Edge
Bracket
 2100-1670
 $5.14
12
 Connecting Link
with Bearings
 2110-441
 $45.37
17
 Motor 24VDC
 2500-1902

  Brush Replacement
Kit
 2510-243
 $75.25
  Motor Mounting
Bracket (not shown)
 2110-621
 $43.66
19
 MMTC --Gear
Reducers 60:1
 2200-758
 $390.16
  Canimex
 2200-667
 $390.16
21
 Reducer Pulley, 5”
 2100-388
 $21.83
23
 V-Belt, 24”
 2200-052
 $11.02
24
 Motor Pulley, 1 5/8”
 2200-883
 $40.87
28
 Key, 3/16” x 3/16” x
1 7/8”
 2400-285

29
 Carriage Bolt, 3/8”
-16 x 1
 2400-183
 $2.00
33
 Set Collar, 1 1/4”
 2200-314
 $11.77
34
 Spring Pin, 0.37” x
2”
 2400-474
 $3.75
38
 Limit Switch
 2500-764
 $40.34
Item
 Description
 Part
Number
 Price
 Price
43
 Limit Cam
 2300-028
 $26.96
50
 Key, 3/16” x 3/16” x 1
3/8”
 2400-134
 $2.00
55
 Thrust Washer
 2400-188
 $2.00
56
 Shoulder Bolt, 1/2”-13 x
2”
 2400-165
 $11.77
  Three-Button Station
with Lead Wires
 2510-064

71
 Transformer Assembly
 2510-223
 $180.97
  Bridge Rectifier
 2500-1768
 $11.77
  Diode
 2500-1769
 $11.77
  Transformer only,
115/24V, 250VA
 2500-1776
 $167.50
  Fuse Holder
 2500-1819
 $17.66
  Fuse, 6A Slow-Blow
 2500-1742
 $2.57
72
 Power Disconnect Box
and Transformer
Mounting Bracket
 2100-1995

73
 Power On/Off Switch
Assembly
 2510-266
 $51.15
  Switch only (20 Amp)
 2500-726
 $35.31
74
 Rear Accessory Shelf
 2100-1804
 $11.77
75
 Front Accessory Shelf
 2100-1820
 $7.38
76
 Battery Assembly
(OSCO supplied - some
disbtributors supply
other batteries)
 2510-182
 $113.14
  Battery, 12V (2
required)
 2500-1118

  Velcro Tape, per foot
 2300-450
 $2.00
OSCO LINEAR BGU Arm Assembly Drive Shaft Power Disconnect Bearing Reducer Motor Pulley V Belt
1,2                                                            Enclosure without Door                                                2120-474*
3                                                       Louvered Door Assembly with Lock                                  2110-318*
5                                                           Lock Assembly with Keys                                                2220-008
6                                                          Bearing Block Assembly Kit                                             2110-746
7                                                              Drive Shaft Assembly                                                     2110-170
                                                     Gate Arm Flange                                                           2110-732
                                     Arm Attachment Channel (not shown)                                    2100-1886
                                               Cutting Edge Bracket                                                         2100-1670
12,26                                                Connecting Link with Bearings                                           2110-441
21                                                              Reducer Pulley, 5”                                                        2100-388
23                                                                    V-Belt, 24”                                                                2200-052
24                                                              Motor Pulley, 1 5/8”                                                      2200-883
28                                                         Key, 3/16” x 3/16” x 1 7/8”                                               2400-285
29                                                          Carriage Bolt, 3/8”-16 x 1”                                             2400-183
33                                                                 Set Collar, 1 1/4”                                                       2200-314
34                                                                 Spring Pin, 0.37” x 2”                                               2400-474
38                                                                     Limit Switch                                                            2500-764
43                                                                       Limit Cam                                                              2300-028
50                                                              Key, 3/16” x 3/16” x 1 3/8”                                          2400-134
55                                                                      Thrust Washer                                                      2400-188
56                                                             Shoulder Bolt, 1/2”-13 x 2”                                          2400-165
                                      Three-Button Station with Lead Wires                                  2510-064
71                                                               Transformer Assembly                                              2510-223
                                                          Bridge Rectifier                                                       2500-1768
                                                                 Diode                                                                  2500-1769
                                        Transformer only, 115/24V, 250VA                                      2500-1776
                                                          Fuse Holder                                                             2500-1819
                                                   Fuse, 6A Slow-Blow                                                      2500-1742
72                               Power Disconnect Box and Transformer Mounting Bracket           2100-1995
73                                                   Power On/Off Switch Assembly                                          2510-266
                                                  Switch only (20 Amp)                                                    2500-726
74                                                               Rear Accessory Shelf                                                2100-1804
75                                                               Front Accessory Shelf                                                2100-1820
76                                              Battery Assembly (OSCO supplied -
                             some disbtributors supply other batteries)                                  2510-182
                                             Battery, 12V (2 required)                                                    2500-1118
                                                   Velcro Tape, per foot                                                     2300-450
17                                                                   Motor 24VDC                                                             2500-1902
                                                Brush Replacement Kit                                                   2510-243
                                       Motor Mounting Bracket (not shown)                                   2110-621

                                                    Gear Reducers 60:1
19                                                                            MMTC                                                                2200-758
                                                                Canimex                                                             2200-667
