OSCO Gate Operators SWG ARM Assembly - Scroll Down to View Exploded Parts View & Parts List |
OSCO Replacement Parts for your OSCO Operators - We Offer OSCO Factory Direct replacement parts and New Products for OSCO Systems, Gate Operators, Keypad Parts, Proximity and Multi-Tenant Access Control panels |

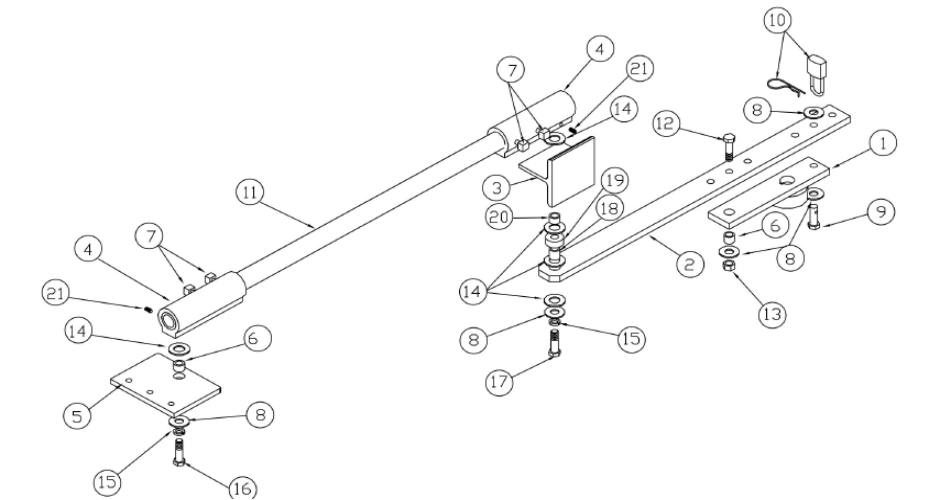

ARM ASSEMBLY 2120-449-BT Complete Arm Assembly 1 2100-1913-BT Crank (not included in arm assembly) 2 2100-1722-BT Crank Extension 3 2100-1924-BT Overtravel Stop 4 2100-1597 Gate Arm Clamp 5 2100-1733-BT Gate Plate 6 2200-783 Spacer - black, 1/2” ID x 3/4” OD x 9/16” LTB 7 2400-378 Set Bolt, 5/16”-18 x 3/4” 8 2400-376 Flat Washer 9 2100-1547 Disconnect Pin 10 2400-351 Disconnect Hair Pin 2200-034 Disconnect Lock (optional) 11 2100-122-BT Pipe Link, 1” 12 2400-380 HHCS, 1/2”-13 x 1 3/4” 13 2400-418 Nylon Lock Nut, 1/2” 14 2300-238 Nylon Washer, 3/4” ID 15 2400-433 Split Lock Washer, 1/2” 16 2400-434 HHCS, 1/2-13 x 1 1/4” 17 2400-482 HHCS, 1/2-13 x 2 1/2” 18 2100-1725 Spacer - yellow, 3/4” OD x 1/2” ID x 3/4” LTB 19 2100-1932-BC Spacer - black, 1 1/4” OD x 1/2” ID x 1/2” LTB 20 2100-1320 Spacer - zinc-silver, 3/4” OD x 1/2” ID x 1/2” LTB 21 2400-309 Set Screw, 1/4” - 20 x 1 |
|
