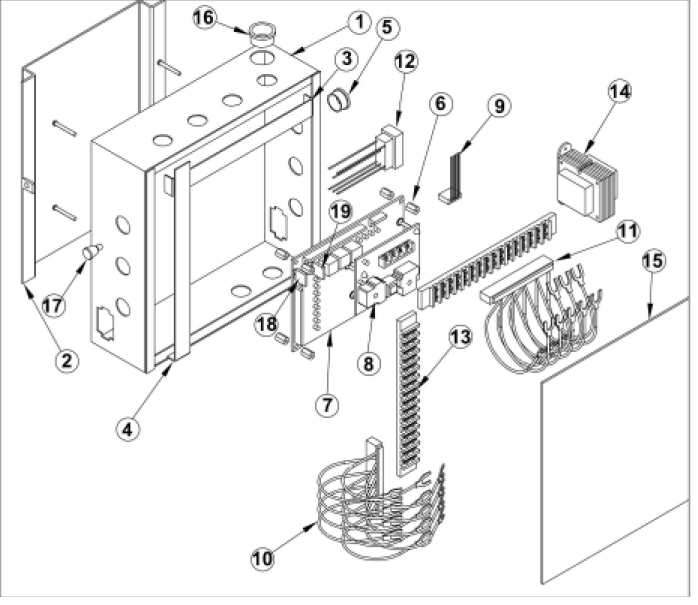

OSCO Gate Operators HSLG - Scroll Down to View Exploded Parts & Parts list for HSLG single Phase control box |
OSCO Replacement Parts for your OSCO Operators - We Offer OSCO Factory Direct replacement parts and New Products for OSCO Systems, Gate Operators, Keypad Parts, Proximity and Multi-Tenant Access Control panels |
|
About Us | Contact Us | Our Policies | FAQ | Manufactures | Links | Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp. 3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com |
|
|
Single Phase Control Box 1 2100-1778 Control Box Wrapper 2 2100-1757 Control Box Mounting Plate 3 2100-1762 Terminal Strip Bracket, Output Side 4 2100-1761 Terminal Strip Bracket, Input Side 5 2200-122 Heyco Bushing, .87 diameter 6 2500-1948 Control Board Standoff 7 2510-268 Control Board 8 2500-1946 AC Motor Drive Board 2510-244 Control Board with AC Motor Board 9 2510-253 Limit Switch Harness Assembly 10 2510-249 Input Wire Harness Assembly 11 2510-250 Output Wire Harness Assembly 12 2510-261 Control Box Motor Harness Assembly 13 2500-071 Terminal Strip, 16-141 14 2500-212 Transformer, 115/24VAC 40VA 2500-791 Transformer, 230/24VAC 40VA 15 2300-696 Clear Control Box Cover 16 2300-735 Heyco Bushing, 1.09 diameter 17 2200-876 Plunger, Spring Loaded 2500-867 Alarm, 24VAC (not shown) 18 2500-1966 2 Amp Fuse for Control Board 19 2500-1975 3 Amp Fuse for Control Board 2520-391-D Complete Controller Assembly 115VAC (order limit harness and mounting brackets separately) 2520-392-D Complete Controller Assembly 230VAC (order limit harness and mounting brackets separately |
