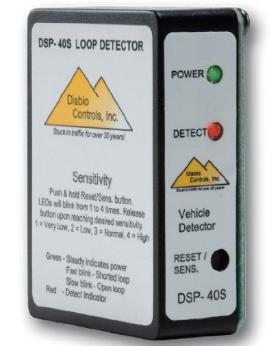

|Diablo Loop Detector DSP 40S
|A plug-in detector which now has 4 levels of sensitivity.
The DSP-40S detector will add a new dimension of simplicity to your plug-in detector requirements.
This detector has been specifically designed to handle parking, drive-through and access control applications where solid-state outputs are required for both the "Detect" and the
At last a plug-in detector which will operate on any voltage from 10 to 30 Volts AC or DC. The DSP-40S detector is covered by United States patent number US 7,132,959 “Non-
Interfering Vehicle Detection”. These detectors are virtually cross-talk free in most applications. This detector has been specifically designed to handle parking, drivethrough and
access control applications where solid-state outputs are required for both the “Detect” and the “Fail” outputs.
The sensitivity level may be changed. (See Features)
|Loop Size - Works on any in-ground inductive loop from 20 to 1500 μH.
Indicators - Separate Power/Fail and Detect LEDs.
Detect Memory - Power interruptions of short duration are ignored. If power fails for approximately 1 ½ seconds or less the detector “remembers” a vehicle.
Sensitivity and Reset Push Button - The Reset/Sens. button is used for two functions. A short press and release of the button will reset the detector and the LED's will both flash
from 1 to 4 times, indicating the detector's sensitivity level. The detector is shipped from the factory with the sensitivity set at level 3. If a different sensitivity level is required: Push
and continue to hold the button until the LED's start flashing - release the button immediately after the desired number of flashes. For example, if the sensitivity is to be changed to
level 2, push and hold the button until the LED's flash twice then immediately release the button.
The sensitivity level can always be verified by a quick tap on the pushbutton. This will reset the detector and flash the two LED's indicating the present level.
Level 1 - Very Low
Level 2 - Low
Level 3 - Normal (Factory setting)
Level 4 - High
Power - 10 to 30 Volts AC or DC (20 mA max).
Loop Failure - The green power indicator flashes slowly if the loop circuit is open and quickly if the loop circuit is shorted. This detector will output a “Detect” for either of these loop
Outputs - Solid-state (open transistor collectors) for both “Detect” and “Fail” outputs. 30 mA maximum current sink - transient voltage protected.
Connector -10 position Molex Type 09-48-1104 Mates with many female PCB 0.156” pitch headers in use by some access control devices and gate operators.
1 - Loop input
2 - Loop input
3 - Power* (10 to 30 Volts AC or DC)
4 - No Connection
5 - No Connection
6 - Fail output -connects to common for fail.
7 - Fail output -connects to common for fail.
8 - Detect output -connects to common for detect.
9 - Power* (10 to 30 Volts AC or DC)
10 - Power Common
*Either, or both of these pins can be used to supply power to the detector.
Operating Temperature -35°F to 165°F (-37°C to 74°C)
Size - Height: 2.4" Width: 0.8" Depth: 2.25”
|Loop detectors and loops may be used for a variety of applications. Vehicle loop detectors are frequently used to provide free
entrance and/or free exit for traffic. Wire loop detector directly to gate operator or overhead door, connect to buried loop, and
allow larger metal objects which drive over loop to trigger the gate or door to open, or close. Loops remain practically invisible,
buried beneath gravel, asphalt, or concrete driveways. Vehicle loop detectors are a safe and reliable way of controlling an
assortment of equipment. Safety Devices for Automated Gates and Doors: Vehicle loops and loop detectors are also frequently
used as safety devices. Loop detectors are wired directly to the gate operator or overhead door. Loops are buried directly
under the automated gate or door. When a vehicle, or other large metal device, is present, a signal is sent preventing the
automated gate or door from moving. Use vehicle loop detectors and loops in conjunction with other safety devices
